Toyota SPRINTER — RADIATOR GRILLE

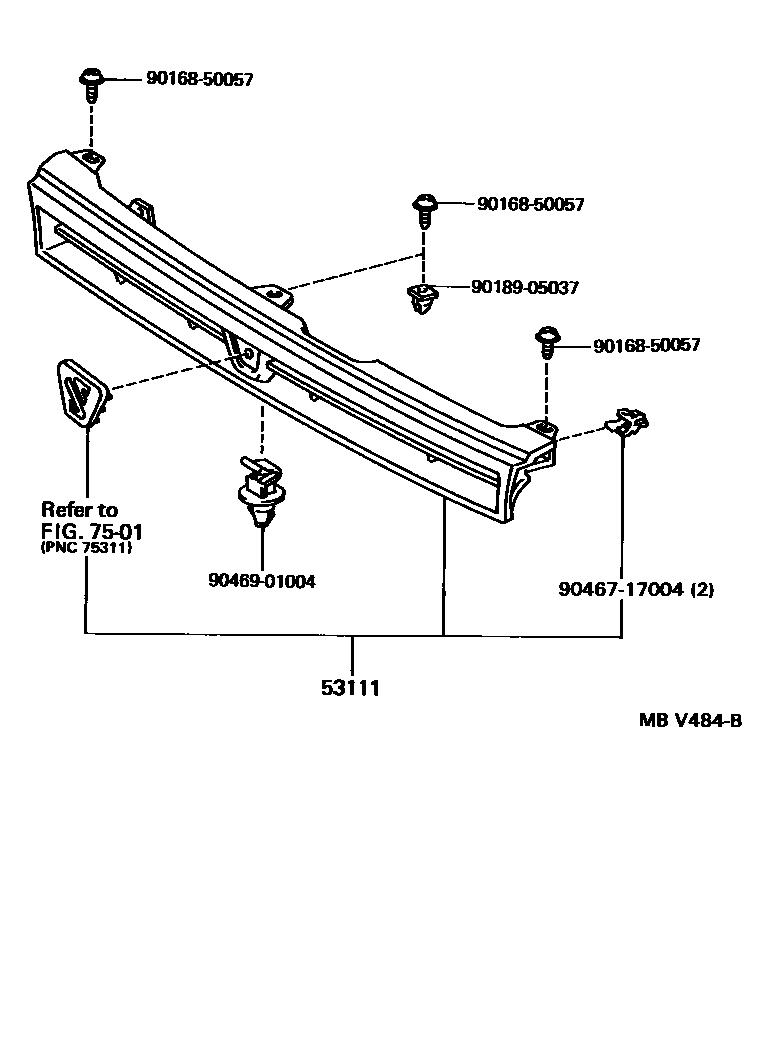

Parts diagram

53111GRILLE, RADIATOR

main53101-12880i199106-199305

main53101-1A080i199305-199505

main53111-13080i199109-199401

main53111-13100i199401

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016850057

main90168-50057

9018905037

main90189-05037

9046717004

main90467-17004

9046901004

main90469-01004

6 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota SPRINTER

This section contains 9 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota SPRINTER. Key components include: GRILLE, RADIATOR, BRACKET, RADIATOR GRILLE, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
