Toyota SPRINTER — RADIATOR GRILLE

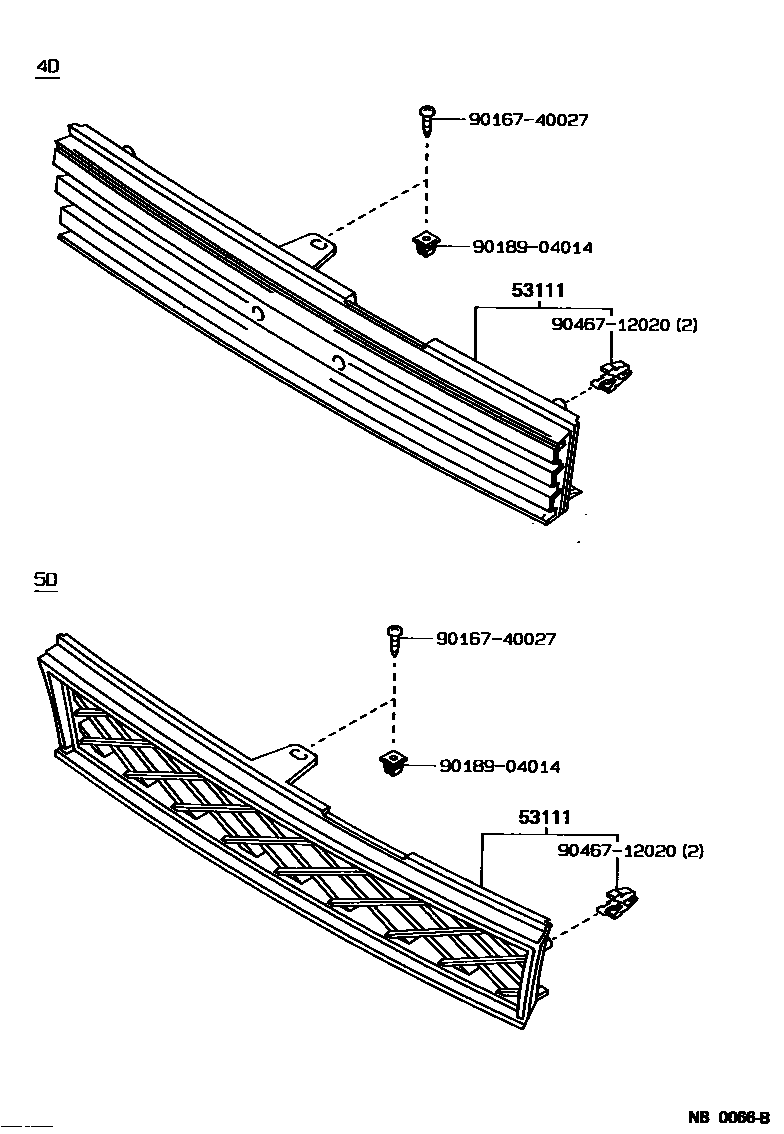

Parts diagram

53111GRILLE, RADIATOR

main53101-12630i198705-198905

main53101-12640i198705-198905

main53101-12650i198705-198905

main53101-12720i198802-199009

main53101-12730i198802-199009

main53101-12740i198710-198905

main53101-12750i198801-198803

main53101-12760i198809-198810

main53101-12800i198905-199106

main53101-12810i198905-199106

main53101-12840i198901-198905

main53101-13030i198808-198908

main53101-13031i198908-199108

9016740027

main90167-40027

9018904014

main90189-04014

9046712020

main90467-12020

4 parts on this diagram · 3 diagrams in section

RADIATOR GRILLE for Toyota SPRINTER

This section contains 14 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota SPRINTER. Key components include: GRILLE, RADIATOR, DOOR, HEADLAMP, RH, DOOR, HEADLAMP, LH, GARNISH FRONT FENDER, RH, GARNISH FRONT FENDER, LH.
