Toyota SPRINTER — QUARTER WINDOW

0001 1 0002 1 0003 1 0004 1

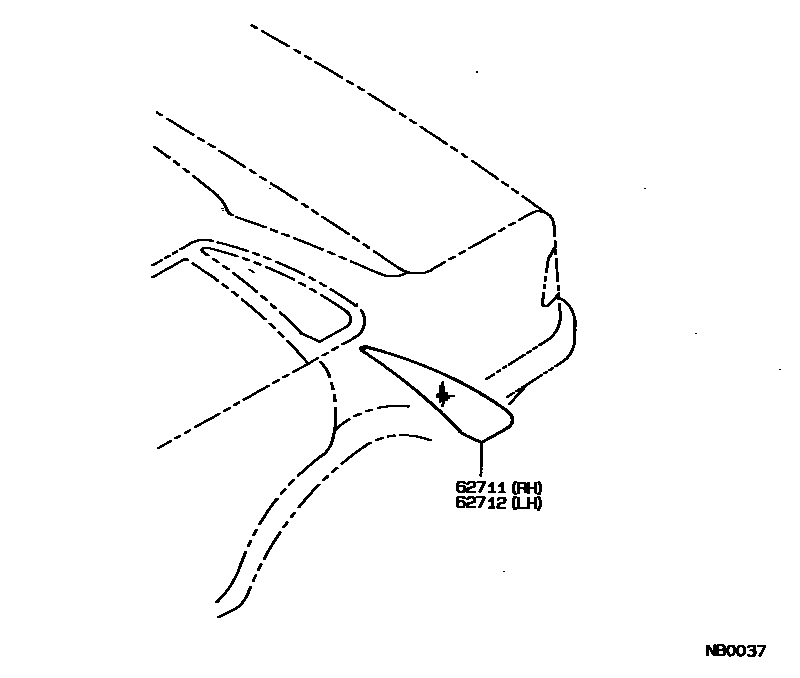

62711GLASS, QUARTER WINDOW, RH

main62711-12500iAE91,CE90,EE90..DX198705-199106

main62711-12510iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

main62711-12520iAE9#,CE90..4D..(GT,SE)198805-198905

62712GLASS, QUARTER WINDOW, LH

main62712-12500iAE91,CE90,EE90..DX198705-199106

main62712-12510iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

main62712-12520iAE9#,CE90..4D..(GT,SE)198805-198905

2 parts on this diagram · 4 diagrams in section
