Toyota SPRINTER — QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-12360i198305-198505

*TEM,T=3.5

main62711-12370i198305-198505

*TT,T=3.5

main62711-12380i198305-198505

*TEM,T=3.5,BRONZE

main62711-12400i198305-198704

*TT,T=3.5

main62711-12410i198305-198704

*TEM,T=3.5,BRONZE

main62711-12470i198505-198704

*TEM,T=4.0

main62711-12480i198505-198704

*TT,T=4.0

main62711-12490i198505-198704

*TEM,T=4.0,BRONZE

62712GLASS, QUARTER WINDOW, LH

main62712-12360i198305-198505

*TEM,T=3.5

main62712-12370i198305-198505

*TT,T=3.5

main62712-12380i198305-198505

*TEM,T=3.5,BRONZE

main62712-12400i198305-198704

*TT,T=3.5

main62712-12410i198305-198704

*TEM,T=3.5,BRONZE

main62712-12470i198505-198704

*TEM,T=4.0

main62712-12480i198505-198704

*TT,T=4.0

main62712-12490i198505-198704

*TEM,T=4.0,BRONZE

68133ASPACER, QUARTER WINDOW NO.2 GLASS

main68137-12020i198505-198704

main68137-32010i198305-198505

68178SEAL, QUARTER WINDOW NO.2 GLASS

main68177-12020i198305-198704

9043005010

main90430-05010

5 parts on this diagram · 1 diagram in section

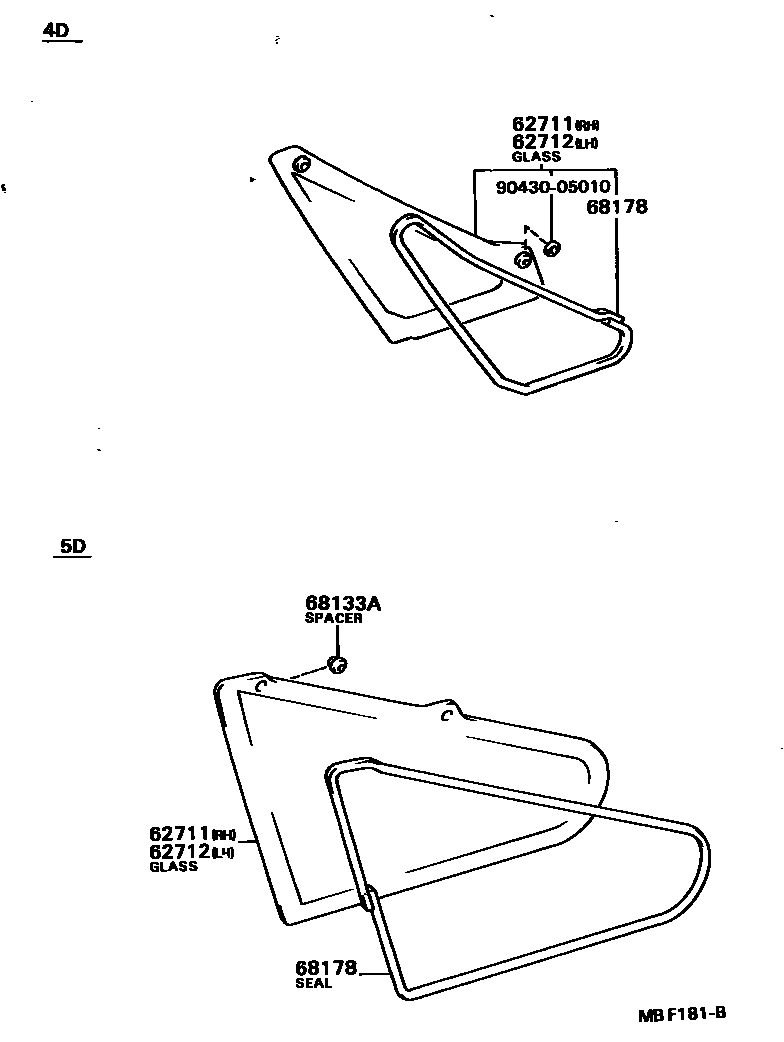

QUARTER WINDOW for Toyota SPRINTER

This section contains 5 genuine Toyota parts for the QUARTER WINDOW system of the Toyota SPRINTER. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, SPACER, QUARTER WINDOW NO.2 GLASS, SEAL, QUARTER WINDOW NO.2 GLASS.
