Toyota SPRINTER — PARTIAL ENGINE ASSEMBLY

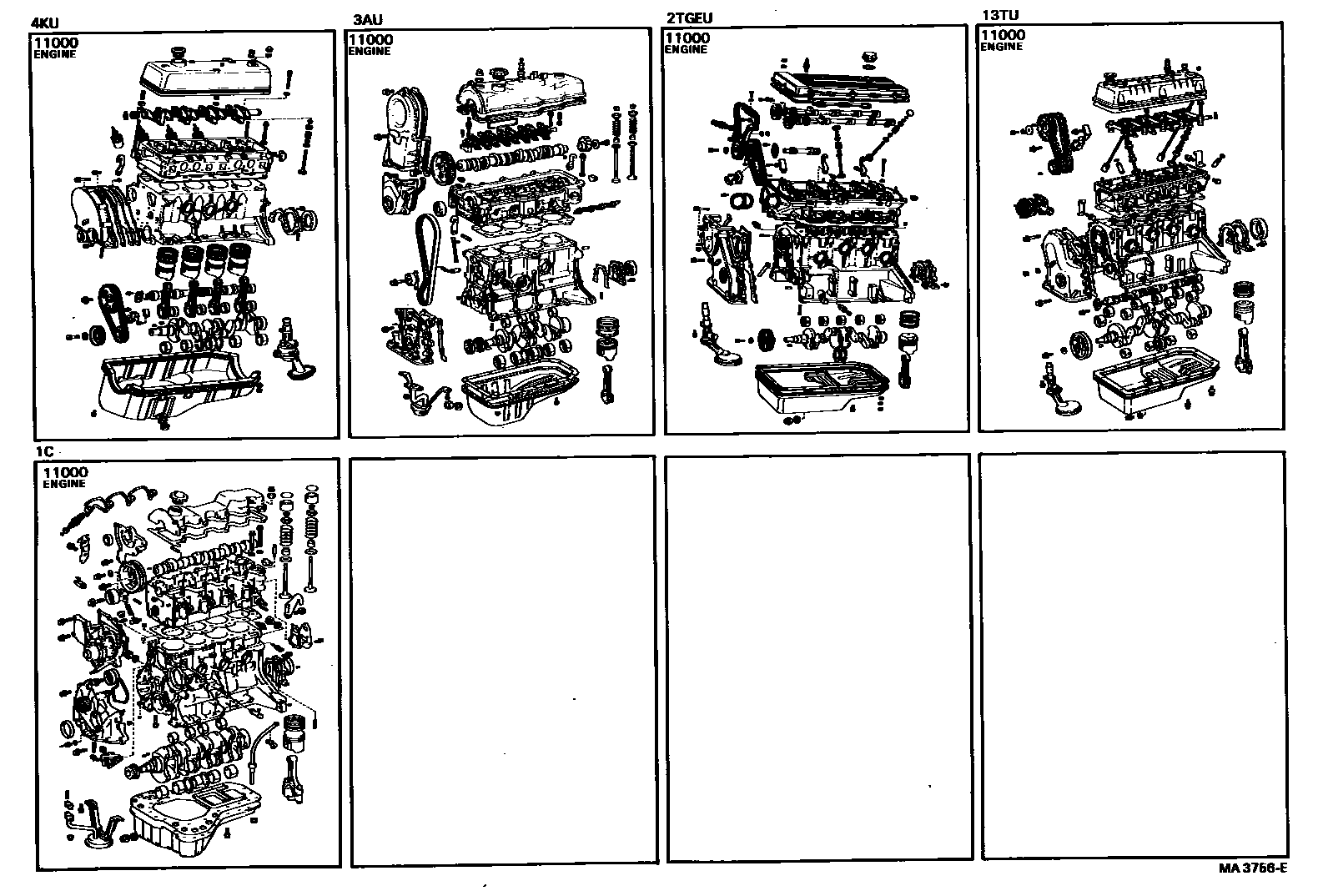

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-13040i197903-198108
main19000-13120i198108-198208
main19000-13121i198208-198304
sub19000-13122
main19000-15020i197903-198108
sub19000-15022
sub11355-15020
sub91611-60610
main19000-15050i197910-198108
sub19000-15022
sub11355-15030
sub90950-01264
sub91611-60610
main19000-15052i198108-198304
sub19000-15053
main19000-18060i197908-198108
main19000-26252i197903-198108
main19000-26263i197903-198108
W/OK MONITOR
main19000-26310i198108-198207
main19000-26311i198207-198304
main19000-64020i198202-198303
sub16261-64011
main19000-64022i198303-198304
sub19000-64023

1 parts on this diagram · 1 diagram in section
