Toyota SPRINTER — PARTIAL ENGINE ASSEMBLY

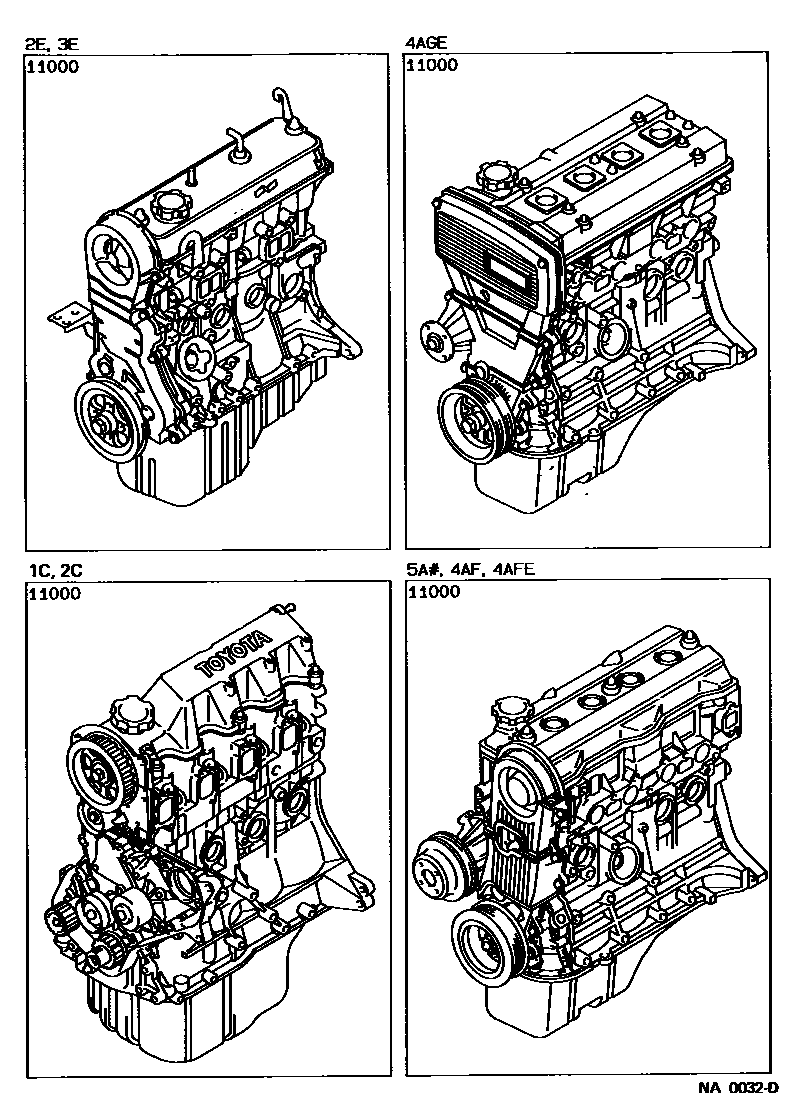

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-11220i198705-198908
main19000-11290i198808-199008
sub19000-11291
sub12329-11020
sub17771-11080
sub17771-11120
sub78184-16050
main19000-11291i199008-199108
main19000-11320i198905-199108
main19000-15310i198705-198803
sub19000-15311
sub99364-50830
main19000-15311i198803-198905
sub19000-15312
main19000-15320i198705-198803
sub19000-15321
sub99364-50830
main19000-15321i198803-198805
main19000-15322i198805-198905
main19000-15340i198905-199106
main19000-15350i198905-199106
main19000-16360i198705-198905
sub19000-16361
main19000-16510i198710-198803
sub19000-16511
sub99364-50830
main19000-16511i198803-198908
sub19000-16512
main19000-16560i198802-198803
sub19000-16561
sub99364-50830
main19000-16561i198803-198905
sub19000-16562
main19000-16562i198905-198911
sub19000-16563
main19000-16563i198911-199004
sub19000-16564
main19000-16564i199004-199104
sub19000-16565
main19000-16565i199104-199106
main19000-16710i198802-198803
sub19000-16711
sub99364-50830
main19000-16711i198808-198905
sub19000-16712
main19000-16712i198905-198911
sub19000-16713
main19000-16713i198911-199004
sub19000-16714
main19000-16714i199004-199104
sub19000-16715
main19000-16715i199104-199106
main19000-16830i198905-199101
sub19000-16831
main19000-16831i199101-199106
main19000-64390i198705-198805
main19000-64400i198705-198805
main19000-64420i198805-198908
sub19000-64421
main19000-64450i198805-198908
sub19000-64451
main19000-64490i198905-199006
sub19000-64491
main19000-64491i199006-199106
sub19000-64492
main19000-64500i198905-199008
sub19000-64501
main19000-64501i199008-199108
sub19000-64502
main19000-64510i198910-199106
sub19000-64511

1 parts on this diagram · 1 diagram in section
