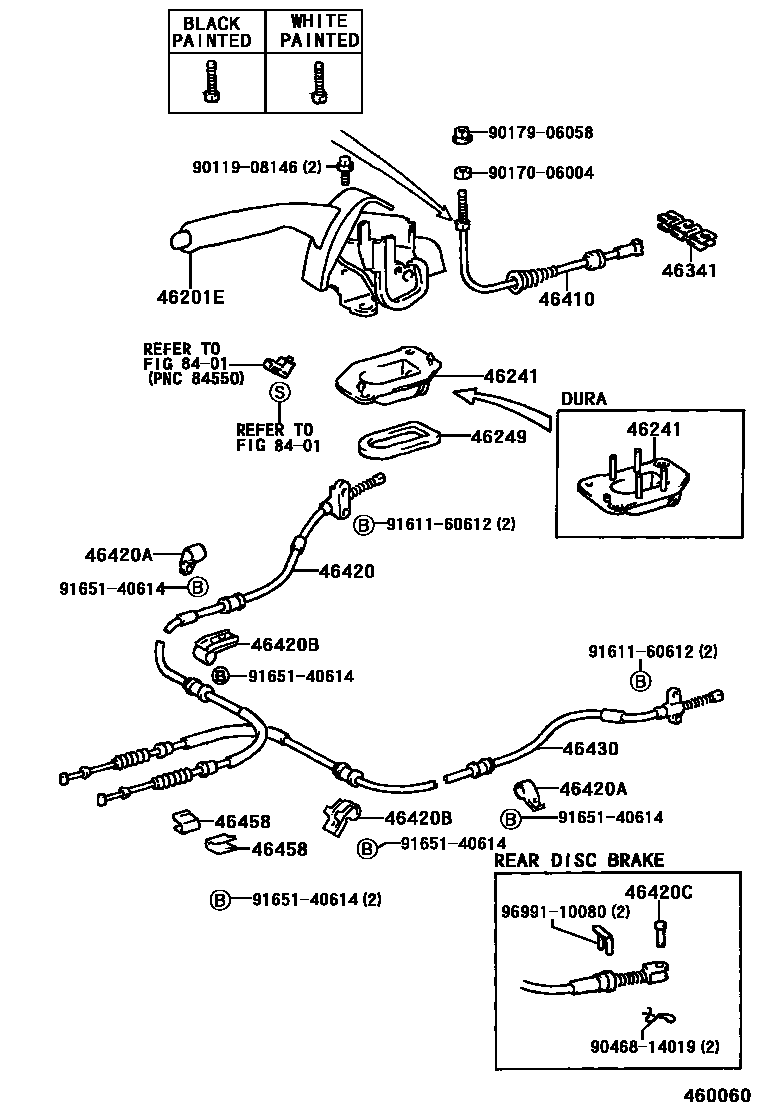

Toyota SPRINTER — PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
SHADOW GRAY,TRIM1#,DURA
OAK,TRIM4#,DURA
SHADOW GRAY,TRIM1#,DURA
OAK,TRIM4#,DURA
SHADOW GRAY,TRIM1#
MD.GRAY,TRIM1#
MD.CHARCOAL,TRIM1#
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#,TOYOTETU
MD.CHARCOAL,TRIM1#
MD.GRAY,TRIM11
OAK,TRIM4#; OAK,TRIM4#,TOYOTETU
SHADOW GRAY,TRIM1#
46241BOOT, PARKING BRAKE LEVER
DURA
main46241-12110iAE110,111,CE110,EE111..SCRU,SEVIN,XEVIN; AE114,CE114;AE110,CE110,EE111..LX199505-199704
TOYOTETU
46249SHIELD, PARKING BRAKE HOLE
DURA
main46249-12010iAE110,111,CE110,EE111..SCRU,SEVIN,XEVIN; AE114,CE114;AE110,CE110,EE111..LX199505-199704
TOYOTETU
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46458RETAINER, CABLE
8401SWITCH & RELAY & COMPUTER
9011908146
main90119-08146
9017006004
main90170-06004
9017906058
main90179-06058
9046814019
main90468-14019
9161160612
main91611-60612
9165140614
main91651-40614
9699110080
main96991-10080
19 parts on this diagram · 1 diagram in section
PARKING BRAKE & CABLE for Toyota SPRINTER
This section contains 19 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota SPRINTER. Key components include: LEVER SUB-ASSY, PARKING BRAKE, BOOT, PARKING BRAKE LEVER, SHIELD, PARKING BRAKE HOLE, EQUALIZER, PARKING BRAKE, CABLE ASSY, PARKING BRAKE, NO.1.
