Toyota SPRINTER — PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
46241BOOT, PARKING BRAKE LEVER
46249SHIELD, PARKING BRAKE HOLE
main46249-12010iAE104,CE104;AE100,101,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,GT,L,XL199306
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46458RETAINER, CABLE
8401SWITCH & RELAY & COMPUTER
9011908146
main90119-08146
9017006004
main90170-06004
9017906058
main90179-06058
9046814019
main90468-14019
9161160612
main91611-60612
9165140614
main91651-40614
9331514012
main93315-14012
9699110080
main96991-10080

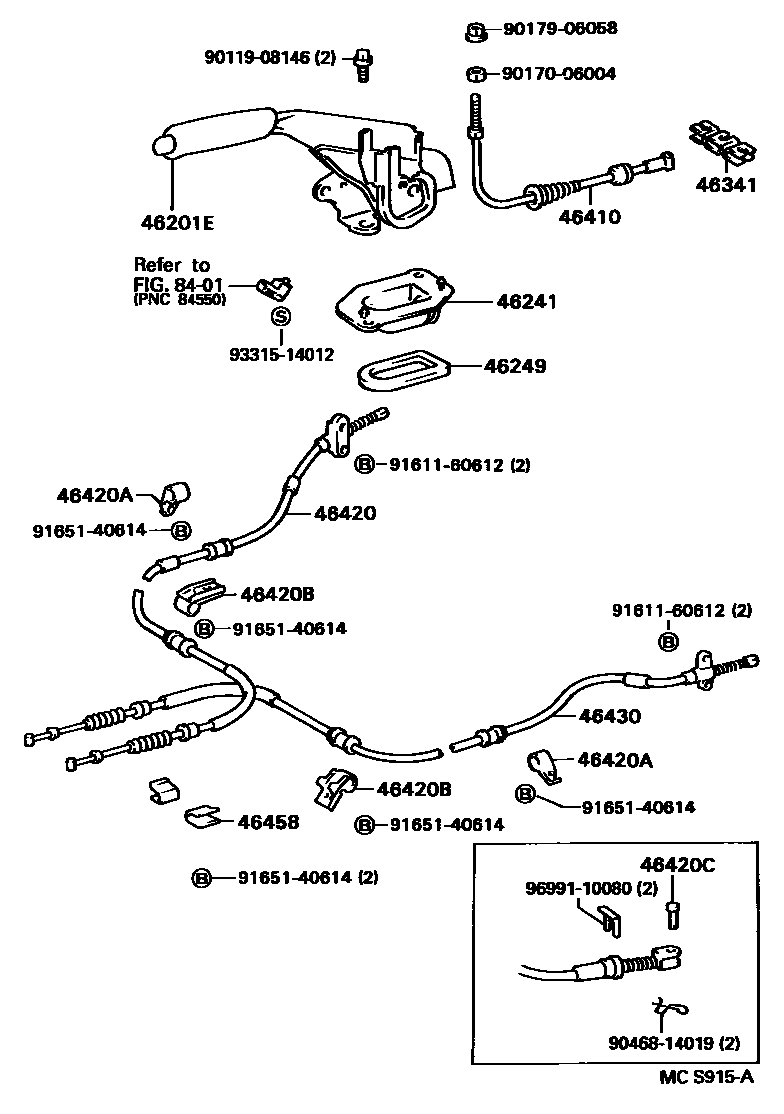

20 parts on this diagram · 1 diagram in section
PARKING BRAKE & CABLE for Toyota SPRINTER
This section contains 20 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota SPRINTER. Key components include: LEVER SUB-ASSY, PARKING BRAKE, BOOT, PARKING BRAKE LEVER, SHIELD, PARKING BRAKE HOLE, EQUALIZER, PARKING BRAKE, CABLE ASSY, PARKING BRAKE, NO.1.
