Toyota SPRINTER — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

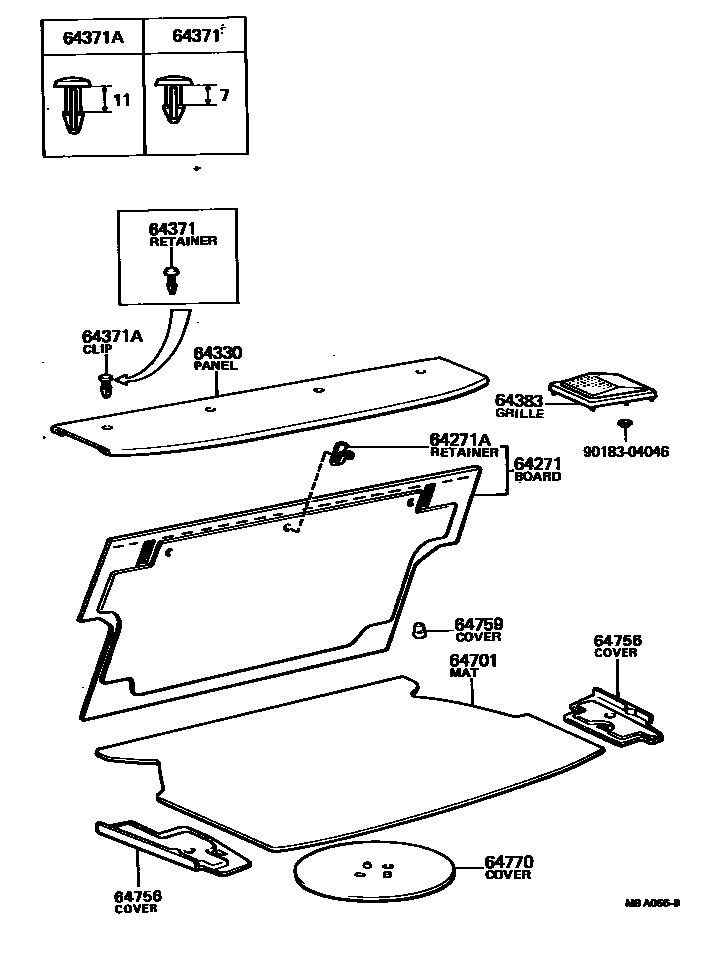

64271BOARD, ROOM PARTITION, NO.1

main64270-12010iAE70,CE70,KE70,TE7#..4D197903-198304

main64270-12020iAE70,KE70,TE7#..HT197903-198108

main64271-12060-01iAE70,KE70,TE71..HT..(GT,SE)198108-198304

RH,BLACK,BLACK,TRIM2#

main64271-12060-04iAE70,KE70,TE71..HT..(GT,SE)198108-198304

RH,BLUE,BLUE,TRIM8#

main64271-12060-06iAE70,KE70,TE71..HT..(GT,SE)198108-198304

RH,DARK BROWN,BROWN,TRIM4#

main64272-12010-01iAE70,KE70,TE71..HT..(GT,SE)198108-198304

LH,BLACK,BLACK,TRIM2#

main64272-12010-04iAE70,KE70,TE71..HT..(GT,SE)198108-198304

LH,BLUE,BLUE,TRIM8#

main64272-12010-06iAE70,KE70,TE71..HT..(GT,SE)198108-198304

LH,DARK BROWN,BROWN,TRIM4#

64271ARETAINER, ROOM PARTITION BOARD

main62598-14020×3iAE70,KE70,TE7#..HT,SED197903-198108

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12360-01iAE70,KE70,TE70..HT..(DX,SX,XL)197903-198304

BLACK,BLACK,TRIM2#

main64330-12360-04iAE70,KE70,TE70..HT..(DX,SX,XL)197903-198304

BLUE,BLUE,TRIM8#

main64330-12360-06iAE70,KE70,TE70..HT..(DX,SX,XL)197903-198304

DARK BROWN,BROWN,TRIM4#

main64330-12370-01iAE70,KE70,TE7#..HT..(GT,SE,XL)197903-198108

W/POCKET,BLACK,BLACK,TRIM2#

main64330-12370-04iAE70,KE70,TE7#..HT..(GT,SE,XL)197903-198108

W/POCKET,BLUE,BLUE,TRIM8#

main64330-12370-06iAE70,KE70,TE7#..HT..(GT,SE,XL)197903-198108

W/POCKET,DARK BROWN,BROWN,TRIM4#

main64330-12371-01iAE70,KE70,TE71..HT..(GT,SE)198108-198207

BLACK,BLACK,TRIM2#

sub64330-12430

main64330-12371-04iAE70,KE70,TE71..HT..(GT,SE)198108-198304

BLUE,BLUE,TRIM8#

sub64330-12430

main64330-12371-06iAE70,KE70,TE71..HT..(GT,SE)198108-198304

LIGHT BROWN,BROWN,TRIM4#

sub64330-12430

main64330-12371-11iAE70,KE70,TE71..HT..(GT,SE)198207-198304

BLACK,BLACK,TRIM2#

sub64330-12430

main64330-12380-01iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

BLACK,BLACK,TRIM2#

main64330-12380-04iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

BLUE,BLUE,TRIM8#

main64330-12380-05iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-198008

BEIGE,BEIGE,TRIM4#

main64330-12380-06iAE70,KE70,TE70..(DX,SPD,XL)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main64330-12380-16iAE70,CE70,KE70..(DX,SPD,SX,XL)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main64330-12390-01iAE70,TE7#..(GT,SE)..4D197903-198108

BLACK,BLACK,TRIM2#

main64330-12390-04iAE70,TE7#..(GT,SE)..4D197903-198108

BLUE,BLUE,TRIM8#

main64330-12390-06iAE70,TE7#..(GT,SE)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main64330-12390-16iAE70,TE7#..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main64330-12391-01iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198207

BLACK,BLACK,TRIM2#

main64330-12391-04iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

BLUE,BLUE,TRIM8#

main64330-12391-06iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

LIGHT BROWN,BROWN,TRIM4#

main64330-12391-11iAE70,CE70,KE70,TE71..(GT,SE)..4D198207-198304

BLACK,BLACK,TRIM2#

64371RETAINER, PACKAGE TRAY TRIM

main64371-12010-10×4iAE70,CE70,KE70,TE71..HT,SED198111-198304

DARK BROWN,DARK BROWN,TRIM4#

sub90467-09019

main64371-12010-20×4iAE70,KE70,TE70..(DX,SPD,XL)..4D198008-198108

LIGHT BROWN,LIGHT BROWN,TRIM4#

sub90467-09019

main64371-12010-21×4iAE70,KE70,TE70..(HT,SED)..(DX,SPD,SX,XL)197903-198111

BLACK,BLACK,TRIM2#

sub90467-09019

main64371-12010-34×4iAE70,CE70,KE70,TE71..HT,SED198111-198304

BLUE,BLUE,TRIM8#

sub90467-09019

main64371-12010-56×4iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

sub90467-09019

64371ACLIP(FOR PACKAGE TRAY TRIM)

main90467-09065-01×8iAE70,KE70,TE7#..HT197903-198111

BLACK,BLACK,TRIM2#

sub90467-09010

main90467-09065-04×4iAE70,KE70,TE7#..HT197903-198111

BLUE,BLUE,TRIM8#

sub90467-09010

main90467-09065-05×4iAE70,TE7#..(GT,SE)..4D197903-198008

BEIGE,BEIGE,TRIM4#

sub90467-09010

main90467-09065-26×4iAE70,TE7#..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

sub90467-09010

main90467-09065-36×8iAE70,KE70,TE7#..HT197903-198111

DARK BROWN,BROWN,TRIM4#

sub90467-09010

64383GRILLE, SPEAKER, REAR

main64033-12010×2iAE70,KE70,TE7#..(HT,SED)..(GT,SE,XL)197903-198108

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-12030iAE70,KE70..HT..(SX,XL)198108-198304

64756COVER, LUGGAGE COMPARTMENT SIDE

main58773-12020iAE70,KE70,TE71..HT..(GT,SE)198108-198304

RH

sub58773-12010

main58773-12030iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

RH

main58774-12020iAE70,KE70,TE71..HT..(GT,SE)198108-198304

LH

sub58774-12010

main58774-12030iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

LH

64759COVER, SHOCK ABSORBER HEAD

main58731-22020-03×2iAE70,CE70,KE70,TE7#..HT,SED197903-198304

GRAY,GRAY,TRIM2#

64770COVER ASSY, SPARE WHEEL

main64770-20030iAE70,CE70,KE70,TE7#..(HT,SED)..(GT,SE)197903-198304

9018304046

main90183-04046

11 parts on this diagram · 2 diagrams in section
