Toyota SPRINTER — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-12010-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

BLACK,TRIM1#,8#,9#

main58387-12010-22iAE100,101,CE100,EE101..DX,GT199106-199505

BLACK,TRIM1#

main58387-12010-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12030iAE10#,CE100,104,EE101199106-199505

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-12030iAE10#,CE100,104,EE101199106-199505

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-12110-K0iAE10#,CE100,104..SEG,SEL199106-199505

main64033-12110-P0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

main64033-12110-P0iAE10#,CE100,104..SEG,SEL199305-199505

SHADOW GRAY,TRIM1#

main64033-12110-W3iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

main64033-12120-K0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main64033-12120-P0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

SHADOW GRAY,TRIM1#

main64033-12120-W3iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-12050-K0iAE10#,CE100,104..SEG,SEL199106-199505

main64034-12050-P0iAE10#,CE100,104..SEG,SEL199106-199505

main64034-12050-P0iAE101..GT199305-199505

SHADOW GRAY,TRIM1#

main64034-12050-W3iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

main64034-12060-K0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main64034-12060-P0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

SHADOW GRAY,TRIM1#

main64034-12060-W3iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05020-22iAE101..GT199405-199505

GRAPHITE,TRIM1#

sub90467-05020

sub90467-05027

main90467-05110-B0iAE101..GT199106-199308

SHADOW GRAY,TRIM1#

main90467-05110-C0iAE101..GT199308-199405

BLACK,TRIM1#

64271GBOARD, ROOM PARTITION, RH

main64271-12130-C0iAE101..GT199308-199505

BLACK,TRIM1#

main64271-12130-P0iAE101..GT199106-199308

SHADOW GRAY,TRIM1#

64272BBOARD, ROOM PARTITION, LH

main64272-12070-C0iAE101..GT199308-199505

BLACK,TRIM1#

main64272-12070-P0iAE101..GT199106-199308

SHADOW GRAY,TRIM1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1A520-J0iAE100,104,CE100,104,EE101..LX,SEL,XE199106-199205

DARK BLUE,TRIM8#

sub64330-1A520

main64330-1A520-J1iAE100,104,CE100,104,EE101..LX,SEL,XE199205-199305

DARK BLUE,TRIM8#

sub64330-1A520

main64330-1A520-K0iAE100,104,CE100,104,EE101..LX199405-199505

sub64330-1A520

main64330-1A520-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub64330-1A520

main64330-1A520-P0iAE10#,CE100,104,EE101..DX,GT,LX,SEL,XE199106-199505

SHADOW GRAY,TRIM1#

sub64330-1A520

main64330-1A520-P0iAE100,104,CE100,104,EE101..DX,LX199405-199505

sub64330-1A520

main64330-1A530-J0iAE100,104,CE100,104,EE101..LX,SEL,XE199106-199205

sub64330-1A530

main64330-1A530-J1iAE100,104,CE100,104,EE101..LX,SEL,XE199205-199305

sub64330-1A530

main64330-1A530-K0iAE100,104,CE100,104,EE101..LX199205-199505

sub64330-1A530

main64330-1A530-K0iAE100,104,CE100,104,EE101..LX,SEL,XE199106-199205

sub64330-1A530

main64330-1A530-K0iAE100,104,CE100,104,EE101..LX199405-199505

TAUPE,TRIM9#

sub64330-1A530

main64330-1A530-P0iAE10#,CE100,104,EE101..GT,SEL,XE199405-199505

SHADOW GRAY,TRIM1#

sub64330-1A530

main64330-1A530-P0iAE10#,CE100,104,EE101..DX,GT,LX,SEL,XE199205-199505

sub64330-1A530

main64330-1A530-P0iAE10#,CE100,104,EE101..DX,GT,LX,SEL,XE199106-199205

sub64330-1A530

main64330-1A540-J0iAE100,104,CE100,104,EE101..SEL,XE199106-199205

DARK BLUE,TRIM8#

sub64330-1A540

main64330-1A540-J0iAE101..SEG199106-199205

sub64330-1A540

main64330-1A540-J1iAE100,104,CE100,104,EE101..SEL,XE199205-199305

sub64330-1A540

main64330-1A540-J1iAE100,104,CE100,104,EE101..SEL,XE199205-199305

DARK BLUE,TRIM8#

sub64330-1A540

main64330-1A540-K0iAE100,104,CE100,104..SEL199405-199505

sub64330-1A540

main64330-1A540-K0iAE100,104,CE100,104..SEL199405-199505

sub64330-1A540

main64330-1A540-K0iAE101..SEG199106-199405

TAUPE,TRIM9#

sub64330-1A540

main64330-1A540-K0iAE101..SEG199106-199405

sub64330-1A540

main64330-1A540-P0iAE101..SEG199405-199505

sub64330-1A540

main64330-1A540-P0iAE100,104,CE100,104..SEL199405-199505

sub64330-1A540

main64330-1A540-P0iAE10#,CE100,104,EE101..GT,SEL,XE199106-199405

sub64330-1A540

main64330-1A540-P0iAE101..SEG199106-199405

SHADOW GRAY,TRIM1#

sub64330-1A540

main64330-1A550-J0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

sub64330-1A550

main64330-1A550-J1iAE10#,CE100,104,EE101..SEG,SEL,XE199205-199305

sub64330-1A550

main64330-1A550-K0iAE10#,CE100,104..SEG,SEL199106-199405

sub64330-1A550

main64330-1A550-K0iAE10#,CE100,104..SEG,SEL199405-199505

sub64330-1A550

main64330-1A550-P0iAE10#,CE100,104..GT,SEG,SEL199405-199505

sub64330-1A550

main64330-1A550-P0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199405

sub64330-1A550

main64330-1A570-J0iAE101..SEG199106-199205

sub64330-1A570

main64330-1A570-J0iAE100,104,CE100,104,EE101..SEL,XE199106-199205

sub64330-1A570

main64330-1A570-J1iAE101..SEG199205-199305

sub64330-1A570

main64330-1A570-J1iAE100,104,CE100,104,EE101..SEL,XE199205-199305

sub64330-1A570

main64330-1A570-K0iAE101..SEG199405-199505

sub64330-1A570

main64330-1A570-K0iAE100,104,CE100,104,EE101..SEL,XE199205-199405

sub64330-1A570

main64330-1A570-K0iAE100,104,CE100,104,EE101..SEL,XE199205-199405

sub64330-1A570

main64330-1A570-K0iAE101..SEG199106-199205

sub64330-1A570

main64330-1A570-K0iAE101..SEG199106-199205

sub64330-1A570

main64330-1A570-K0iAE101..SEG199405-199505

TAUPE,TRIM9#

sub64330-1A570

main64330-1A570-P0iAE100,104,CE100,104,EE101..SEL,XE199405-199505

SHADOW GRAY,TRIM1#

sub64330-1A570

main64330-1A570-P0iAE101..SEG199405-199505

sub64330-1A570

main64330-1A570-P0iAE100,104,CE100,104,EE101..SEL,XE199205-199405

sub64330-1A570

main64330-1A570-P0iAE101..SEG199106-199205

sub64330-1A570

main64330-1A570-P0iAE101..SEG199106-199205

sub64330-1A570

main64330-1A570-P0iAE101..SEG199205-199405

sub64330-1A570

main64330-1A580-J0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

sub64330-1A580

main64330-1A580-J1iAE10#,CE100,104,EE101..SEG,SEL,XE199205-199305

sub64330-1A580

main64330-1A580-K0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

sub64330-1A580

main64330-1A580-K0iAE10#,CE100,104..SEG,SEL199205-199405

sub64330-1A580

main64330-1A580-K0iAE10#,CE100,104..SEG,SEL199405-199505

sub64330-1A580

main64330-1A580-P0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199405

sub64330-1A580

main64330-1A580-P0iAE10#,CE100,104..GT,SEG,SEL199405-199505

sub64330-1A580

main64330-1A580-P0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199205

sub64330-1A580

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-12250-22iAE100,104,CE100,104,EE101..LX199106-199305

BLACK,TRIM1#,8#,9#

main64711-12250-22iAE100,104,CE100,104,EE101..LX,XE199305-199505

BLACK,TRIM1#,9#

main64711-12250-22iAE100,CE100,EE101..DX199106-199505

BLACK,TRIM1#

main64711-12290-C0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

BLACK,TRIM1#,8#,9#

main64711-12290-C0iAE10#,CE100,104..SEG,SEL199305-199505

BLACK,TRIM1#,9#

main64711-12300-C0iAE101..GT199106-199505

BLACK,TRIM1#

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-09156-C0iAE101..GT199106-199505

BLACK,TRIM1#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-12180-22iAE10#,CE100,104,EE101..SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

main64716-12180-22iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

BLACK,TRIM1#,8#,9#

main64716-12180-22iAE101..GT199106-199505

BLACK,TRIM1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12050-C0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

BLACK,TRIM1#,8#,9#

main64717-12050-C0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

BLACK,TRIM1#

main64717-12060-C0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

sub64717-12080

main64717-12060-C0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#

sub64717-12080

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05027iAE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE199106-199209

main90467-05027-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199209-199305

BLACK,TRIM1#,8#,9#

sub90467-05027

main90467-05027-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199308

BLACK,TRIM1#,9#

sub90467-05027

main90467-05027-22iAE100,CE100,EE101..DX199209-199308

BLACK,TRIM1#

sub90467-05027

main90467-05096-22iAE100,CE100,EE101..DX199308-199502

BLACK,TRIM1#,9#

sub90467-05096

main90467-05096-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199308-199502

BLACK,TRIM1#

sub90467-05096

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12020-22iAE100,101,CE100,EE101..DX,GT199106-199505

BLACK,TRIM1#

sub64719-12050

main64719-12020-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

sub64719-12050

main64719-12020-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

BLACK,TRIM1#,8#,9#

sub64719-12050

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07072-11iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199205

BLACK,TRIM1#&040 ,183 ,3K4 ,6M3 ,8J7

sub90467-07072

main90467-07072-11iAE101..GT199106-199205

BLACK,TRIM1#&040 ,183 ,3K4 ,6M3

sub90467-07072

main90467-07072-11iAE101..GT199106-199205

BLACK,TRIM1#,8#,9#&040 ,183 ,3K4 ,3K5 ,3K9 ,6M3 ,8J7

sub90467-07072

main90467-07138iAE10#,CE100,104,EE101199211-199505

main90467-07146iAE10#,CE100,104,EE101199205-199211

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12130-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

BLACK,TRIM1#,8#,9#

main64721-12130-22iAE100,101,CE100,EE101..DX,GT199106-199505

BLACK,TRIM1#

main64721-12130-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iAE100,CE100,EE101..DX199308-199505

sub90467-05096

main90467-05096-22iAE100,CE100,EE101..DX199308-199505

sub90467-05096

main90467-05105-C0iAE100,101,CE100,EE101..DX,GT199106-199505

sub90467-05105

main90467-05105-C0iAE10#,CE100,104..SEG,SEL199106-199305

sub90467-05105

main90467-05105-C0iAE10#,CE100,104..SEG,SEL199106-199505

sub90467-05105

main90467-06146iAE10#,CE100,104,EE101199106-199308

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12160-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

BLACK,TRIM1#,8#,9#

main64722-12160-22iAE100,101,CE100,EE101..DX,GT199106-199505

BLACK,TRIM1#

main64722-12160-22iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

64770COVER ASSY, SPARE WHEEL

main64770-12160iAE10#,CE100,104,EE101199106-199403

sub64770-12161

sub51900-12050

sub64777-12010

main64770-12161iAE10#,CE100,104,EE101199403-199505

main64770-12170iAE10#,CE100,104,EE101199106-199403

sub64770-12171

sub51900-12060

sub51900-12070

sub64777-12020

main64770-12171iAE10#,CE100,104,EE101199403-199505

64778BPROTECTOR, SPARE WHEEL

main64778-12030iAE10#,CE100,104,EE101199106-199505

6792122020RETAINER, FRONT DOOR SCUFF PLATE

main67921-22020

9018304046

main90183-04046

9046709153

main90467-09153

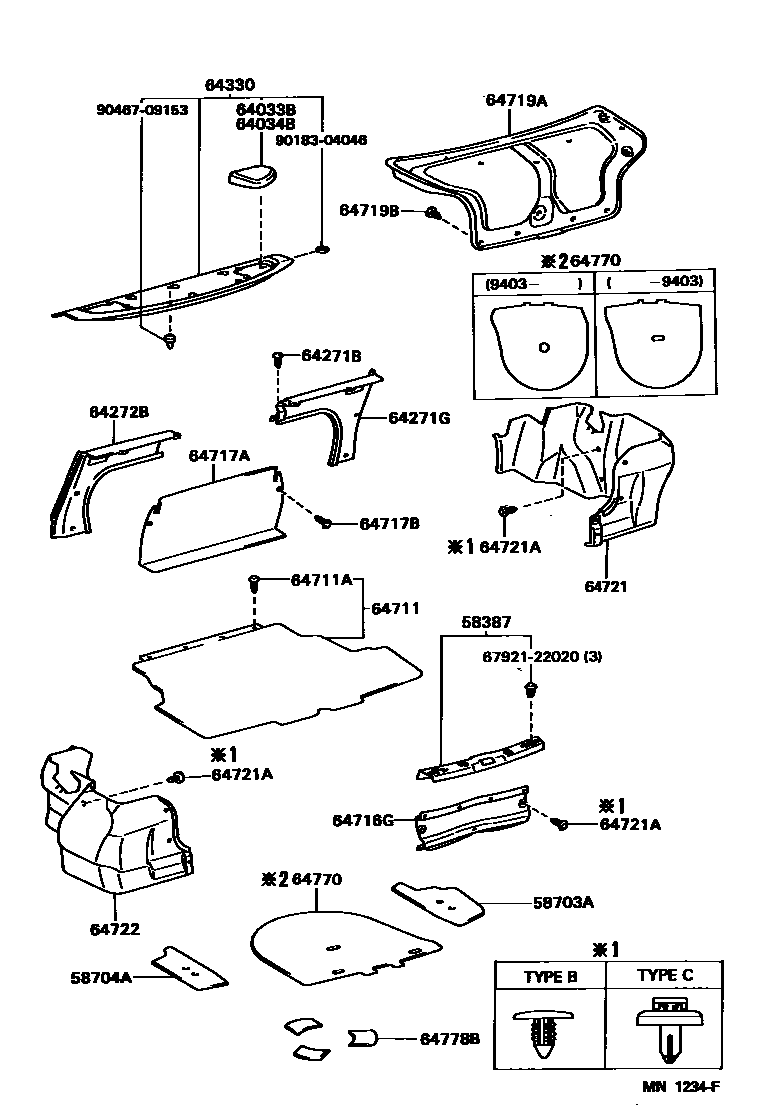

24 parts on this diagram · 1 diagram in section
