Toyota SPRINTER — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64261GARNISH, ROOM PARTITION
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64261BCUSHION(FOR ROOM PARTITION GARNISH)
64270BOARD ASSY, ROOM PARTITION, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
L=18.8,MAROON,RED/MAROON,TRIM3#
L=18.8,BLUE,BLUE,TRIM8#
L=18,8,BROWN,BROWN,TRIM4#
L=10.0,MAROON,RED/MAROON,TRIM3#
L=10.0,GRAY,GRAY,TRIM1#
L=10.0,BLUE,BLUE,TRIM8#
L=10,0,BROWN,SEPIA BROWN,TRIM4#
64277TRIM, ROOM PARTITION LOWER
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64280BOARD ASSY, ROOM PARTITION, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64337GARNISH, PACKAGE TRAY TRIM, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64337BCLIP(FOR PACKAGE TRAY TRIM GARNISH)
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64339GARNISH, PACKAGE TRAY TRIM, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64343REINFORCEMENT, PACKAGE TRAY TRIM, NO.1
64344REINFORCEMENT, PACKAGE TRAY TRIM, NO.2
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
SUPER
LISSE
SALOON
SALOON
64701ASET PLATE, LUGGAGE COMPARTMENT
64714COVER, LUGGAGE COMPARTMENT, RH
SUPER
SALOON
LISSE
64715COVER, LUGGAGE COMPARTMENT, LH
LISSE
SALOON
SUPER
64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
LISSE
SUPER
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
LISSE
SUPER
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
SUPER,BLACK
BLACK
LISSE,BLACK
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
LISSE
SUPER
64770COVER ASSY, SPARE WHEEL
W/COMPACT SPARE TIRE
W/O COMPACT SPARE TIRE
W/COMPACT SPARE TIRE
W/O COMPACT SPARE TIRE
9016740003
main90167-40003
9018904044
main90189-04044
9165540616
main91655-40616

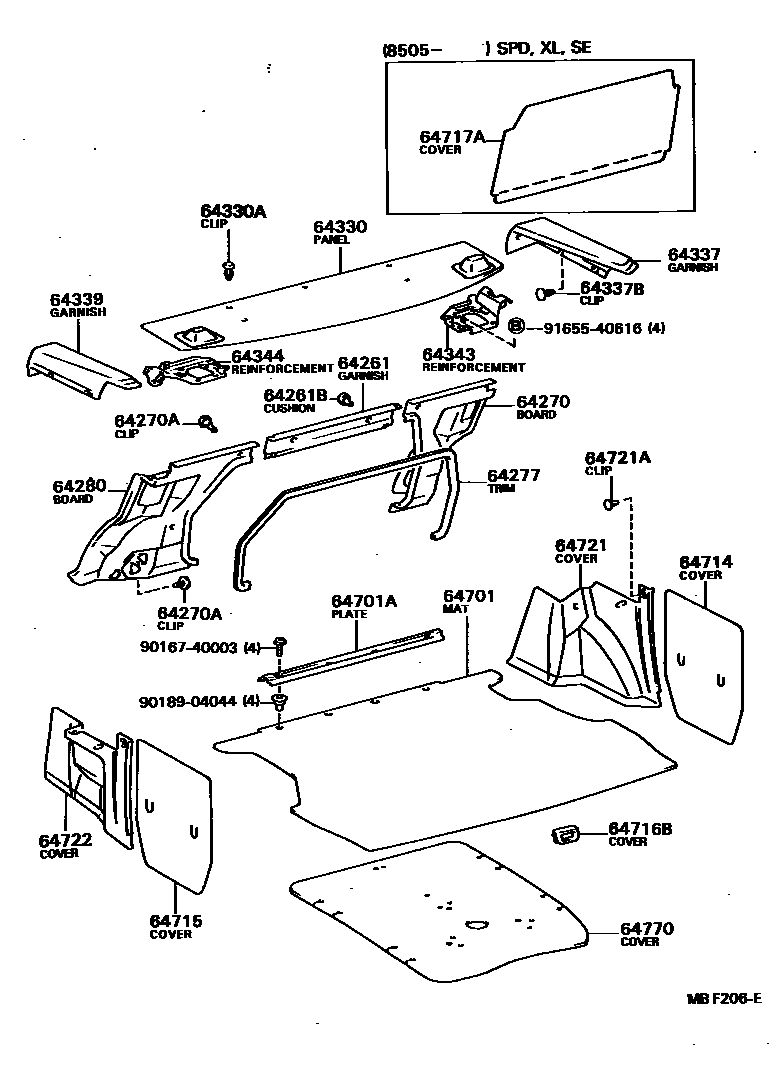

26 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota SPRINTER
This section contains 26 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota SPRINTER. Key components include: GARNISH, ROOM PARTITION, CUSHION(FOR ROOM PARTITION GARNISH), BOARD ASSY, ROOM PARTITION, RH, CLIP(FOR ROOM PARTITION BOARD SETTING), TRIM, ROOM PARTITION LOWER.
