Toyota SPRINTER — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

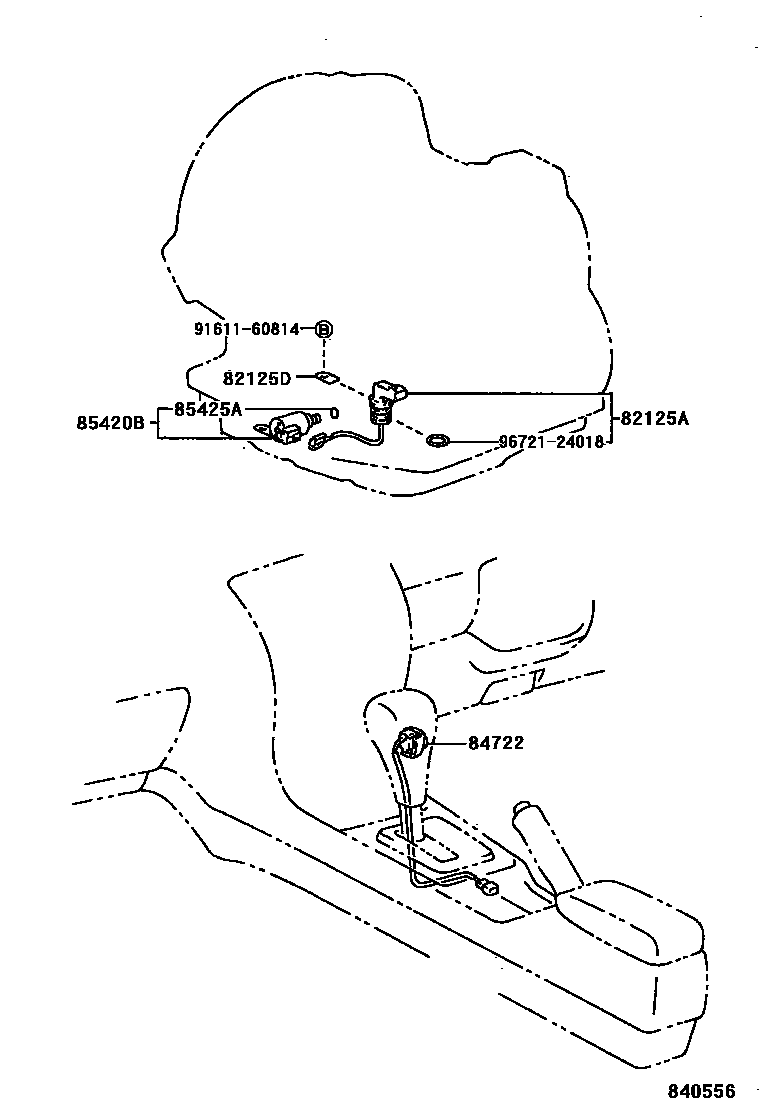

Parts diagram

82125AWIRE, TRANSMISSION

main82125-12350i199305-199505

main82125-20160i199106-199305

main82125-20170i199106-199505

main82125-20240i199512

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020i199305-199505

84722SWITCH, TRANSMISSION CONTROL

main84722-12050-B0i199106-199508

SHADOW GRAY,TRIM1#

main84722-12050-J0i199106-199305

DARK BLUE,TRIM8#

main84722-12050-K0i199106-199505

TAUPE,TRIM9#

main84722-12060-B0i199508

SHADOW GRAY,TRIM1#

85420SOLENOID ASSY, TRANSMISSION

main85420-12062i199106-199305

main85420-12100i199305-199505

main85420-12120i199305-199505

main85420-12140i199305-199505

main85420-22080×2i199106-199305

85420BSOLENOID ASSY, TRANSMISSION

main85420-10011i199106-199512

main85420-20180i199512

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004i199106

9161160814

main91611-60814

9672124018

main96721-24018

8 parts on this diagram · 2 diagrams in section

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION for Toyota SPRINTER

This section contains 19 genuine Toyota parts for the OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota SPRINTER. Key components include: WIRE, TRANSMISSION, PLATE, TRANSMISSION WIRE LOCK, SWITCH ASSY, PATTERN SELECT, BULB(FOR PATTERN SELECT SWITCH), SWITCH, TRANSMISSION CONTROL.
