Toyota SPRINTER — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

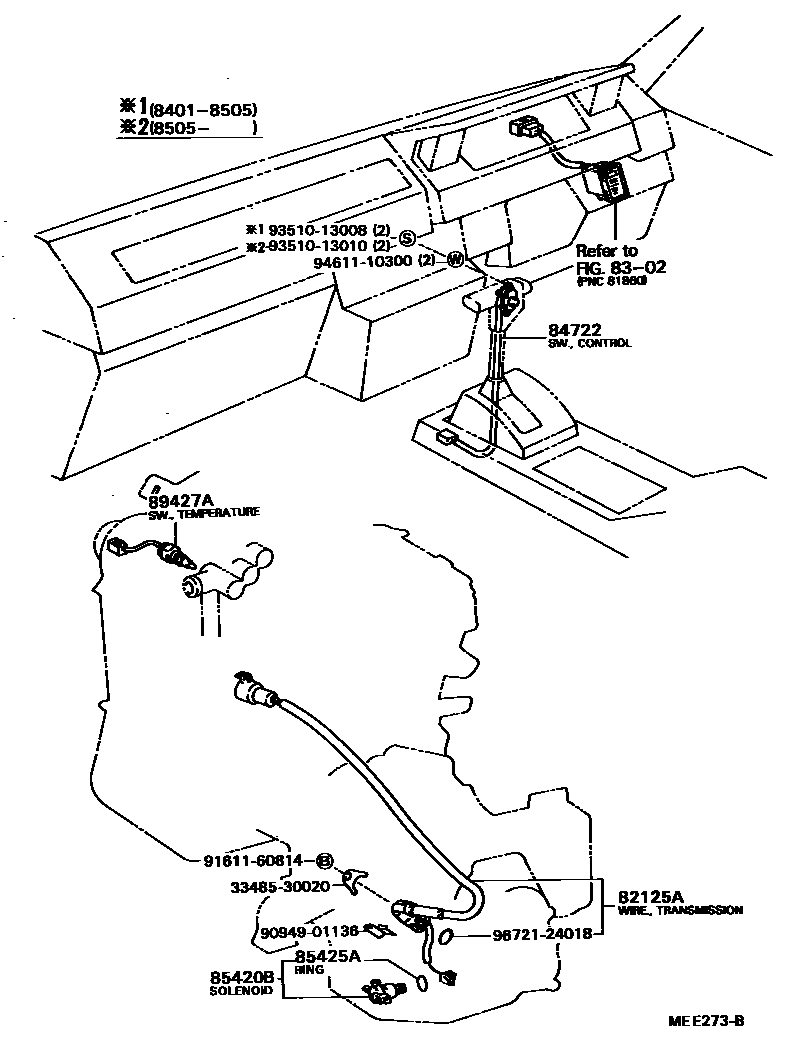

Parts diagram

82125AWIRE, TRANSMISSION

main82125-20060i198401-198704

8302INDICATOR

→ Go to FIG 83-02

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-01i198605-198704

BLACK,BLACK

main84722-20040-02i198401-198408

MAROON,DEEP MAROON,TRIM3#

main84722-20040-03i198401-198704

GRAY,GRAY,TRIM1#

main84722-20040-04i198401-198704

BLUE,BLUE,TRIM8#

main84722-20040-06i198408-198704

BROWN,BROWN,TRIM4#

85420BSOLENOID ASSY, TRANSMISSION

main85420-10010i198605-198704

main85420-20060i198401-198605

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004i198401-198704

89427ASWITCH, TEMPERATURE

main89427-32010i198401-198704

3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020

9094901136

main90949-01136

9161160814

main91611-60814

9351013008

main93510-13008

9351013010

main93510-13010

9461110300

main94611-10300

9672124018

main96721-24018

13 parts on this diagram · 1 diagram in section

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION for Toyota SPRINTER

This section contains 13 genuine Toyota parts for the OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota SPRINTER. Key components include: WIRE, TRANSMISSION, INDICATOR, SWITCH, TRANSMISSION CONTROL, SOLENOID ASSY, TRANSMISSION, RING, O (FOR OVERDRIVE SOLENOID).
