Toyota SPRINTER — OIL FILTER

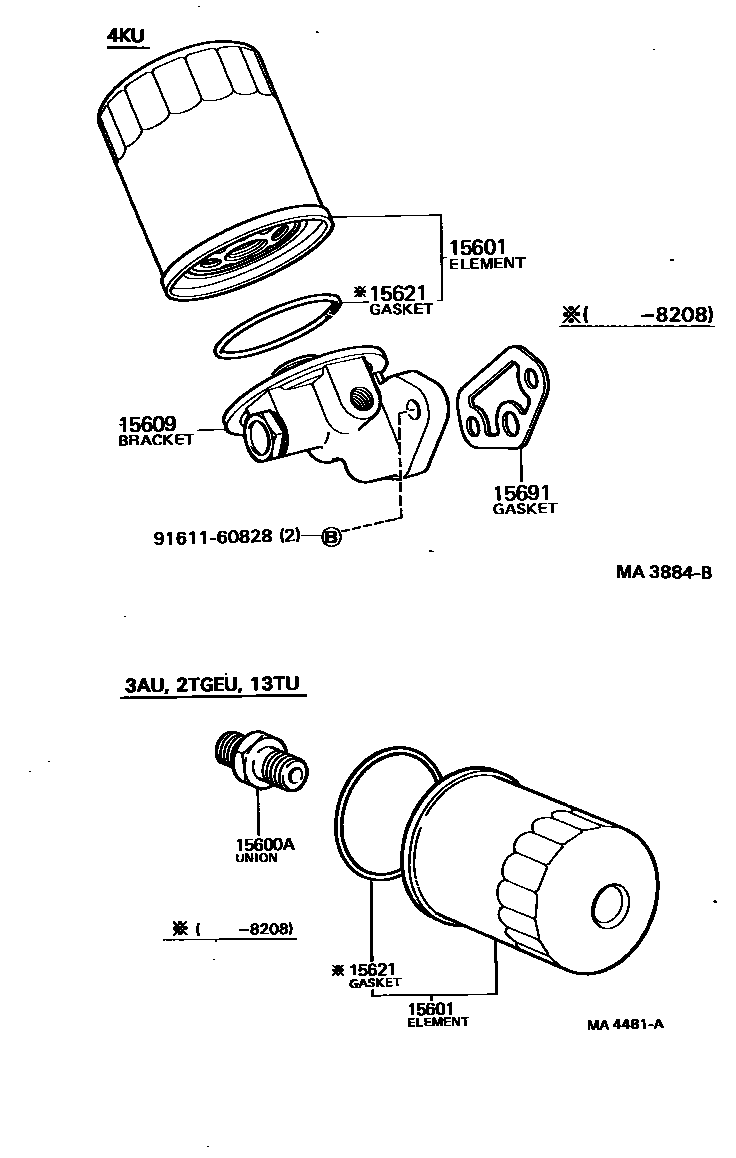

Parts diagram

15600AUNION(FOR OIL FILTER)

main90404-19001i197903-198304

main90404-19003i198202-198303

main90404-19004i198303-198304

main90404-20173i197903-198304

15601FILTER SUB-ASSY, OIL

main15600-25010i197903-198304

main15601-13010i197903-198304

15609BRACKET SUB-ASSY, OIL FILTER

main15671-13040i197903-198304

main15677-64010i198202-198303

main15677-64030i198303-198304

15621GASKET, OIL FILTER BODY

main15621-22010i197903-198208

main15621-41010i197903-198208

15691GASKET, OIL FILTER

main15691-22010i197903-198203

main15691-22011i198203-198304

main15691-64011i198202-198303

main15691-64020i198303-198304

9161160828

main91611-60828

6 parts on this diagram · 2 diagrams in section

OIL FILTER for Toyota SPRINTER

This section contains 7 genuine Toyota parts for the OIL FILTER system of the Toyota SPRINTER. Key components include: UNION(FOR OIL FILTER), FILTER SUB-ASSY, OIL, BRACKET SUB-ASSY, OIL FILTER, GASKET, OIL FILTER BODY, GASKET, OIL FILTER.
