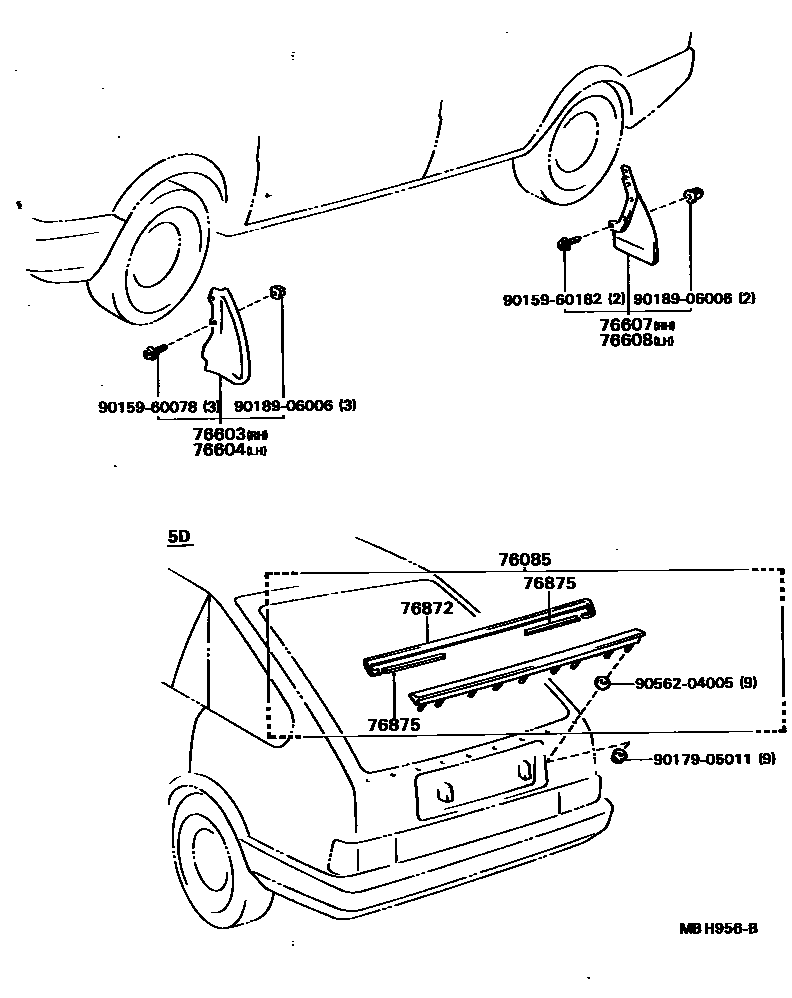

Toyota SPRINTER — MUDGUARD & SPOILER

0001 1 0002 1

76085SPOILER SUB-ASSY, REAR

main76085-12020iAE81,82,CE80..5D198401-198505

main76085-12070iAE82..GT198505-198704

main76085-12080iAE8#,CE80,EE80..5D198505-198704

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12100iAE81..SE198701-198704

SALOON LIMITED

main76621-19085iAE80,82,CE80198305-198401

main76621-19086iAE8#,CE80,EE80198410-198704

main76621-19155iAE8#..SE198608-198704

WHITE

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12100iAE81..SE198701-198704

SALOON LIMITED

main76622-19085iAE80,82,CE80198401-198401

main76622-19086iAE8#,CE80,EE80198410-198704

main76622-19155iAE8#..SE198608-198704

WHITE

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-12270iAE81..SE198701-198704

SALOON LIMITED

main76625-19035iAE80,82,CE80198305-198401

main76625-19036iAE8#,CE80198410-198505

main76625-19105iAE82..GT198505-198704

main76625-19125iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198505-198704

main76625-19215iAE8#..SE198608-198704

WHITE

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-12270iAE81..SE198701-198704

SALOON LIMITED

main76626-19045iAE80,82,CE80198305-198401

main76626-19046iAE8#,CE80198410-198505

main76626-19115iAE82..GT198505-198704

main76626-19135iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198505-198704

main76626-19225iAE8#..SE198608-198704

WHITE

76872PROTECTOR, REAR SPOILER, NO.1

main76872-12900iAE81,82,CE80..5D198401-198505

main76872-12901iAE8#,CE80,EE80..5D198505-198704

76875PROTECTOR, REAR SPOILER, NO.4

main76875-12010×2iAE81,82,CE80..5D198401-198505

main76875-12050iAE8#,CE80,EE80..5D198505-198704

9015960078

main90159-60078

9015960182

main90159-60182

9017905011

main90179-05011

9018906006

main90189-06006

9056204005

main90562-04005

12 parts on this diagram · 2 diagrams in section
