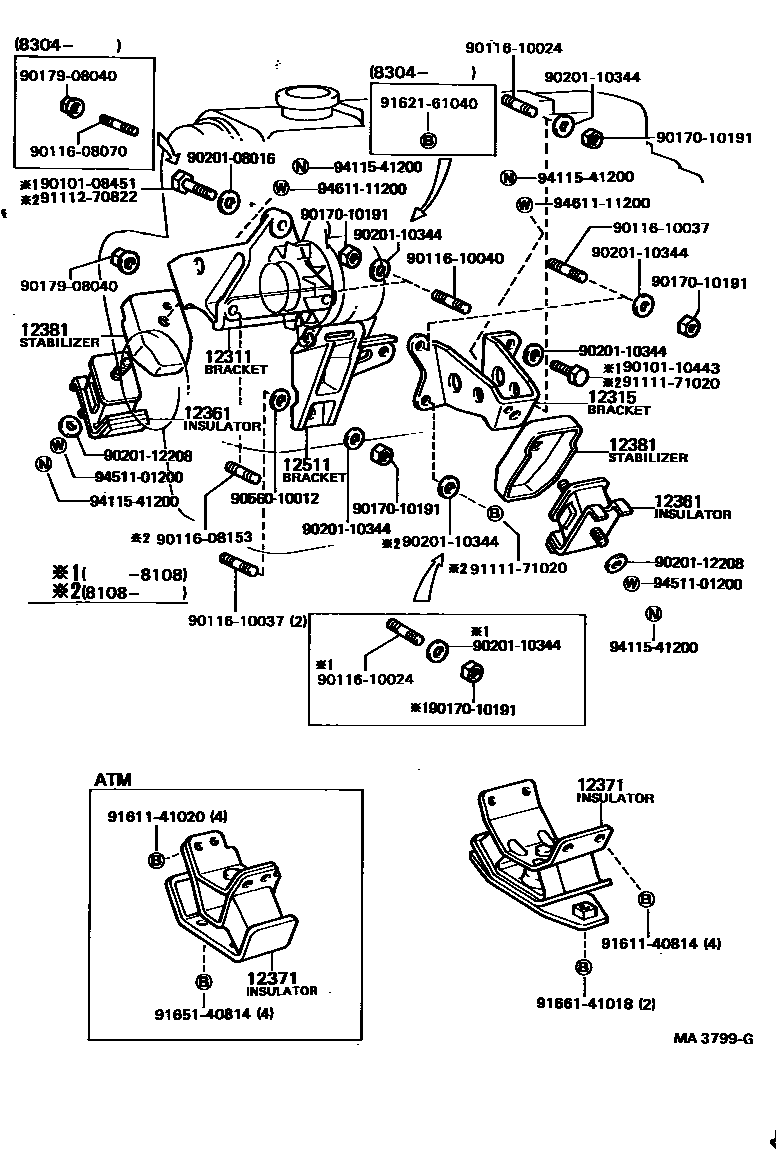

Toyota SPRINTER — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13020i4KU..KE70197903-198304

main12311-15020i3AU..AE70197903-198108

main12311-15021i3AU..AE70198108-198304

sub12311-15090

main12311-25050i2TGEU..TE71197903-198001

main12311-25051i2TGEU..TE71198001-198304

main12311-25060i13TU..TE70197908-197911

main12311-25061i13TU..TE70197911-198008

main12311-26060i13TU..TE70198008-198108

main12311-64010i1C..CE70198202-198304

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13042i4KU..KE70197910-198108

main12302-13043i4KU..KE70198108-198304

sub12302-12013

main12302-13070i4KU..KE70197903-197910

main12312-25040i2TGEU..TE71197903-198001

main12312-25041i2TGEU..TE71198001-198304

main12312-25050i13TU..TE70197908-198001

main12312-25060i13TU..TE70198001-198108

main12315-15020i3AU..AE70197903-198304

sub12315-15060

main12315-64010i1C..CE70198202-198304

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-15040×2i3AU..AE70197903-198304

main12361-18010×2i13TU..TE70197908-198108

MARUYASU,TOKAIGOMU

main12361-18020×2i13TU..TE70197908-198108

TOYOGOMU

main12361-25014×2i2TGEU..TE71197903-198304

main12361-64021×2i1C..CE70198202-198204

main12361-64022×2i1C..CE70198204-198304

sub12361-64023

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-13010i4KU..KE70..2FC197903-198108

main12371-13030i3AU..AE70..MTM197903-198304

main12371-33010i13TU,2TGEU..TE7#..MTM197903-198304

main12371-34020i13TU..TE70..3FC197908-198108

main12371-34030i3AU..AE70..3FC197910-198304

12381STABILIZER, ENGINE MOUNTING

main12381-15010×2i3AU..AE70197903-198301

main12381-15040×2i3AU..AE70198301-198304

main12381-18010i13TU..TE70197908-198108

LH,MARUYASU,TOKAIGOMU

main12381-18020i13TU..TE70197908-198108

LH,TOKOGOMU

main12381-18030i13TU..TE70197908-198108

RH,MARUYASU,TOKAIGOMU

main12381-18040i13TU..TE70197908-198108

RH,TOYOGOMU

main12381-25010×2i2TGEU..TE71197903-198304

main12381-64010×2i1C..CE70198202-198304

sub12381-64011

12511BRACKET, ALTERNATOR, NO.1

main12511-15011i3AU..AE70197903-198304

main12511-24011i4KU..KE70197903-198304

main12511-25010i13TU,2TGEU..TE7#197903-198304

main12511-64011i1C..CE70198202-198304

9010108451

main90101-08451

9010110443

main90101-10443

9011608070

main90116-08070

9011608153

main90116-08153

9011610024

main90116-10024

9011610037

main90116-10037

9011610040

main90116-10040

9017010191

main90170-10191

9017908040

main90179-08040

9020108016

main90201-08016

9020110344

main90201-10344

9020112208

main90201-12208

9056010012

main90560-10012

9111171020

main91111-71020

9111270822

main91112-70822

9161140814

main91611-40814

9161141020

main91611-41020

9162161040

main91621-61040

9165140814

main91651-40814

9166141018

main91661-41018

9411541200

main94115-41200

9451101200

main94511-01200

9461111200

main94611-11200

29 parts on this diagram · 5 diagrams in section
