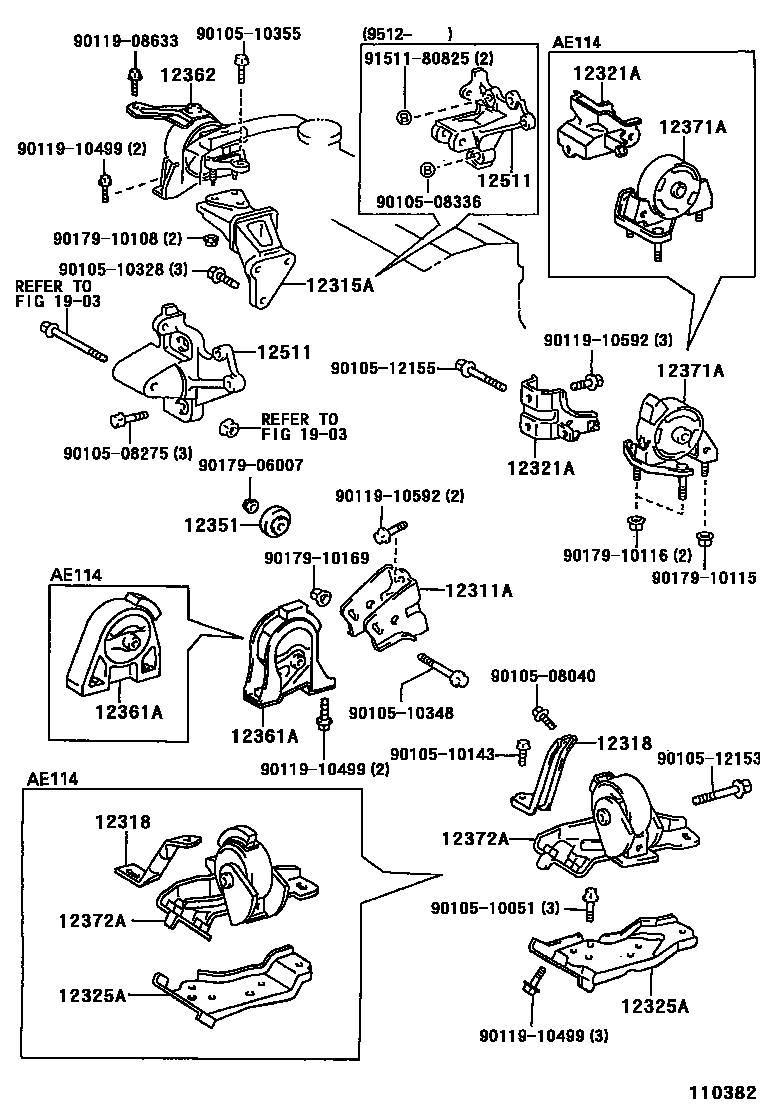

Toyota SPRINTER — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-64020i2C..CE110199505-199704

main12301-64030i2C..CE114199505-199704

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-11090i4EFE..EE111199505-199704

main12311-15130i5AFE..AE110199704-200008

main12311-16090i4AGE..AE111199704-200008

main12311-16110i4AFE..AE114199505-199704

main12311-64120i2C,3CE..CE110,113199704-200008

main12311-64130i2C,3CE..CE114,116199704-200008

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11050i4EFE..EE111199505-199702

main12315-11051i4EFE..EE111199702-199704

main12315-15070i4AFE..AE114199704-200008

main12315-15081i4AFE,5AFE..AE110,111199505-199704

main12315-16070i4AGE..AE111199704-200008

main12315-64050i2C..CE11#199704-199803

main12315-64160i2C,3CE..CE11#199803-200008

12318STAY, ENGINE MOUNTING, LH

main12318-11020i4EFE..EE111..3FC199505-199704

main12318-11050i4AGE..AE111..6F199704-200008

main12318-15050i4AFE,5AFE..AE110,111..4FC199505-199704

main12318-15080i5AFE..AE110..5F199704-200008

main12318-16010i4EFE..EE111..4F199505-199704

main12318-16040i4AFE..AE114..4FC199505-199704

main12318-16070i4AFE..AE114..5F199505-199704

main12318-16110i4AFE,5AFE..AE110,111..5F199505-199704

main12318-64020i2C..CE110..4FC199704-199705

main12318-64060i2C..CE110..5F199505-199704

main12318-64080i2C..CE114199704-199705

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-11191i4EFE..EE111..MTM199704-200008

main12321-11200i4EFE..EE111..3FC199704-200008

main12321-15120i4AFE,5AFE..AE110,111..5F199505-199704

main12321-15140i5AFE..AE110..4FC199704-200008

main12321-16210i4AGE..AE111..6F199704-200008

main12321-16220i4AGE..AE111..4FC199704-200008

main12321-16240i4AFE..AE114..5F199704-200008

main12321-16250i4AFE..AE114..4FC199505-199704

main12321-64190i2C..CE110..5F199704-199803

main12321-64191i2C,3CE..CE110,113..5F199803-200008

main12321-64200i2C..CE110..4FC199704-199803

main12321-64201i2C,3CE..CE110,113..4FC199803-200008

main12321-64210i2C,3CE..CE114,116199704-200008

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11130i4EFE..EE111..3FC199505-199704

sub12325-11131

main12325-11170i4EFE..EE111..MTM199704-200008

main12325-11180i4EFE..EE111..3FC199704-200008

main12325-15080i5AFE..AE110..5F199704-200008

main12325-15110i5AFE..AE110..4FC199704-200008

main12325-16120i4EFE..EE111..4F199505-199704

main12325-16130i5AFE..AE110..4FC199505-199704

main12325-16140i4AFE..AE114..5F199505-199704

main12325-16160i4AFE..AE114..4FC199505-199704

main12325-16170i4AFE..AE111..4FC199505-199704

main12325-16240i4AFE..AE114..5F199704-200008

main12325-16250i4AFE..AE114..4FC199704-200008

main12325-16270i4AGE..AE111..6F199704-200008

main12325-16280i4AGE..AE111..4FC199704-200008

main12325-64010i2C..CE110..5F199505-199704

main12325-64020i2C..CE110..4FC199505-199704

main12325-64030i2C..CE114199505-199704

main12325-64130i2C,3CE..CE110,113..5F199704-200008

main12325-64140i2C,3CE..CE110,113..4FC199704-200008

main12325-64150i2C,3CE..CE114,116199704-200008

12351DAMPER, ENGINE MOUNTING

main12351-15060i4AFE,5AFE..AE110,111199505-199704

main12351-15070i2C,3CE..CE110,113..5F199704-200008

PNC 12325A

main12351-15080i4AFE..AE114..5F199704-200008

main12351-64050i2C..CE11#199505-199704

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-11180i4EFE..EE111..4F199505-199612

main12361-11181i4EFE..EE111..4F199612-199704

main12361-15170i4AGE,5AFE..AE110,111..MTM199704-199801

main12361-15171i4AGE,5AFE..AE110,111..MTM199801-200008

main12361-15180i4AFE,5AFE..AE110,111..4FC199505-199704

main12361-15181i4EFE..EE111..3FC199809-200008

main12361-16270i4AFE..AE114199505-199704

main12361-64240i2C..CE110..5F199505-199612

main12361-64241i2C..CE110..5F199612-199704

main12361-64290i2C..CE114199505-199612

main12361-64291i2C..CE114199612-199704

main12361-64300i2C..CE110..4FC199704-199803

main12361-64301i2C,3CE..CE110,113..4FC199803-200008

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-11050i4EFE..EE111..4F199505-199704

main12305-11060i4EFE..EE111..3FC199704-200008

main12305-15040i5AFE..AE110199704-200008

main12305-16100i4AGE..AE111199704-200008

main12305-16110i4AFE..AE114199704-200008

main12362-64220i2C..CE11#199505-199704

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11600i2C,3CE..CE110,113..5F199704-200008

main12371-15240i4EFE..EE111..4F199505-199612

main12371-15241i4EFE..EE111..4F199612-199704

main12371-16250i4AFE..AE114..4FC199704-200008

main12371-64210i2C,3CE..CE110,113..4FC199704-200008

main12371-64220i2C..CE114199505-199704

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11240i4EFE..EE111..4F199505-199704

main12372-11250i4EFE..EE111..3FC199505-199704

main12372-15171i4AFE,5AFE..AE110,111..5F199505-199704

main12372-15181i4AFE,5AFE..AE110,111..4FC199505-199704

main12372-15200i4AFE,5AFE..AE110,114..5F199704-200008

main12372-15210i4EFE..EE111..3FC199704-200008

main12372-15220i4AGE,5AFE..AE110,111..4FC199704-200008

main12372-15230i4AFE..AE114..4FC199704-200008

main12372-16251i4AFE..AE114..5F199505-199704

main12372-16260i4AFE..AE114..4FC199505-199704

main12372-16430i4AGE..AE111..6F199704-200008

main12372-64110i2C..CE110..4FC199505-199704

main12372-64140i2C..CE114199505-199704

main12372-64170i2C..CE110..5F199505-199704

main12372-64250i2C,3CE..CE11#199704-199902

main12372-64251i3CE..CE11#199902-200008

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i4EFE..EE111199505-199704

main12511-15050i4AFE,5AFE..AE11#199505-199512

main12511-15060i4AFE,5AFE..AE11#199512-199704

main12511-16080i4AGE..AE111199704-200008

main12511-64060i2C..CE11#199505-199704

main12511-64100i3CE..CE11#199804-200008

1903

9010508040

main90105-08040

9010508275

main90105-08275

9010508336

main90105-08336

9010510051

main90105-10051

9010510143

main90105-10143

9010510328

main90105-10328

9010510348

main90105-10348

9010510355

main90105-10355

9010512153

main90105-12153

9010512155

main90105-12155

9011908633

main90119-08633

9011910499

main90119-10499

9011910592

main90119-10592

9017906007

main90179-06007

9017910108

main90179-10108

9017910115

main90179-10115

9017910116

main90179-10116

9017910169

main90179-10169

9151180825

main91511-80825

32 parts on this diagram · 8 diagrams in section
