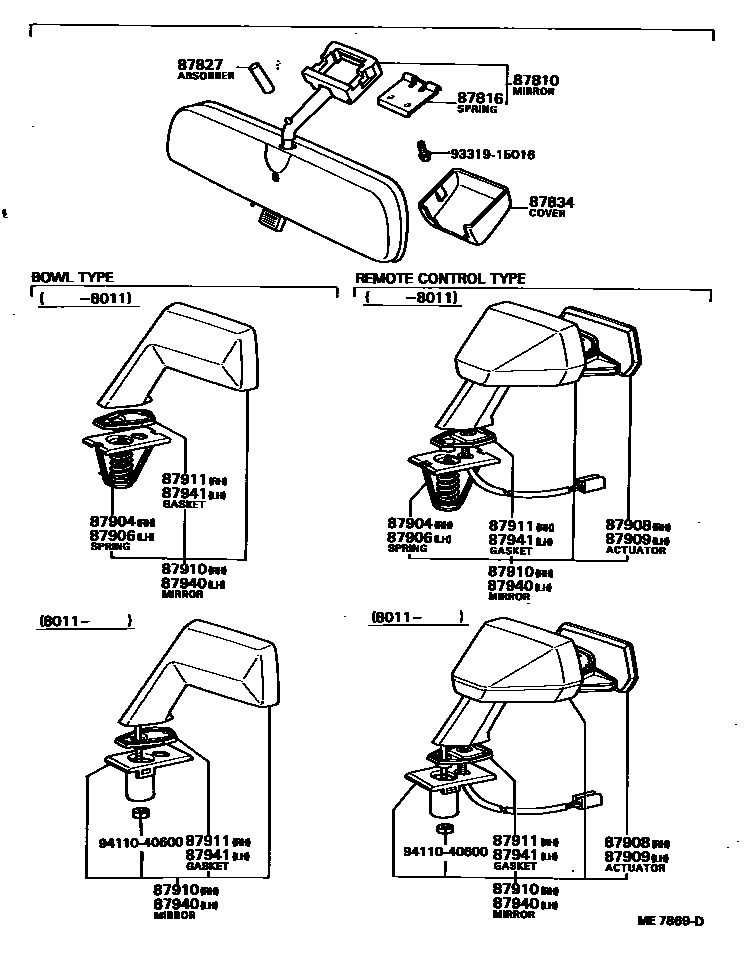

Toyota SPRINTER — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12150-01iAE70,CE70,TE71..DX,SPD,TRS198108-198304

BLACK,BLACK,TRIM2#

sub87810-12180

main87810-12150-04iKE70;AE70..DX197903-198003

BLUE,BLUE,TRIM8#

sub87810-12180

main87810-12150-06iKE70;AE70..DX197903-198008

LIGHT BROWN,BROWN,TRIM4#

sub87810-12180

main87810-12150-16iAE70,CE70,TE71..DX,SPD,TRS198108-198304

DARK BROWN,BROWN,TRIM4#

sub87810-12180

main87810-12150-26iKE70;AE70..DX198008-198108

LIGHT BROWN,BROWN,TRIM4#

sub87810-12180

main87810-12160-01iAE70,KE70,TE7#197903-198108

NON GLARE TYPE,BLACK,BLACK,TRIM2#

sub87810-12180

sub87810-12181

main87810-12160-04iAE70,KE70,TE7#197903-198003

NON GLARE TYPE,BLUE,BLUE,TRIM8#

sub87810-12180

sub87810-12181

main87810-12160-06iAE70,KE70,TE7#197903-198008

NON GLARE TYPE,LIGHT BROWN,BROWN,TRIM4#

sub87810-12180

sub87810-12181

main87810-12160-16iAE70,CE70,KE70,TE71198108-198304

NON GLARE TYPE DARK BROWN,BROWN,TRIM4#

sub87810-12180

sub87810-12181

main87810-12160-26iAE70,KE70,TE7#198008-198108

NON GLARE TYPE,LIGHT BROWN,BROWN,TRIM4#

sub87810-12180

sub87810-12181

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAE70,CE70,KE70,TE7#197903-198304

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-12010iAE70,KE70,TE7#..CP197912-198304

L=35

main87828-12020iKE70..(ST,XL)..2D197903-197912

L=30

main87828-12030iAE70,CE70,KE70,TE71..4D197903-198304

L=27

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-08iAE70,CE70,KE70,TE7#197910-198208

IVORY,IVORY,TRIM2#,4#,8#

main87834-20080-18iAE70,CE70,KE70,TE71198208-198304

IVORY,IVORY,TRIM2#,4#,8#

main87834-22041-08iAE70,KE70,TE7#197903-197910

IVORY,IVORY,TRIM2#,4#,8#

87904SPRING SUB-ASSY, OUTER MIRROR, RH

main87904-12050iAE70,KE70,TE7#..4D197912-198011

main87904-12070iAE70,TE7#..2D197912-198011

REMOTE CONTROL TYPE

87906SPRING SUB-ASSY, OUTER MIRROR, LH

main87905-12040iAE70,KE70,TE70..(DX,SR,ST,XL)..2D197912-198011

main87905-12060iAE70,TE7#..2D197912-198011

REMOTE CONTROL TYPE

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-12020iAE70,TE7#..GT,SE,SR,ST,TRR,XL197903-198108

main87908-12021iAE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL198108-198202

main87908-22010iTE71..TRR198108-198304

APEX

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-12020iAE70,TE7#..GT,SE,SR,ST,TRR,XL197903-198108

main87909-12021iAE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL198108-198202

main87909-22010iTE71..TRR198108-198304

APEX

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12240iAE70,KE70,TE70..DX,SPD,SR,ST,XL197903-198011

main87910-12260iAE70,TE7#..GT,SE,SR,ST,TRR,XL197903-197912

REMOTE CONTROL TYPE

main87910-12330iAE70,TE7#..2D197912-198011

REMOTE CONTROL TYPE

main87910-19565iAE70,KE70,TE70..DX,SPD,SR,ST,XL198011-198108

sub87910-12241

main87910-19566iAE70,CE70,KE70,TE71..DX,SPD,SR,SX,TRS,XL198108-198304

sub87910-12242

main87910-19575iAE70,TE7#..(GT,SE,XL)..4D198011-198108

REMOTE CONTROL TYPE

sub87910-12261

main87910-19576iAE70,CE70,KE70,TE71..(DX,GT,SE,SX,XL)..4D198108-198304

REMOTE CONTROL TYPE

sub87910-12262

main87910-19585iAE70,TE7#..2D198011-198102

REMOTE CONTROL TYPE

main87910-19625iAE70,TE7#..2D198102-198108

REMOTE CONTROL TYPE

main87910-19626iAE70,KE70,TE71..2D198108-198304

REMOTE CONTROL TYPE

main87910-80003iTE71..TRR198108-198304

APEX

main87910-80010iAE70..HT..(3FC,5F)..SE198203-198203

LIMITED EDITION

main87910-80027iAE70..SE..4D198210-198304

*RCM,SE SALOON(WHITE STAY)

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-12070iAE70,KE70,TE70..DX,SPD,SR,ST,XL197903-198011

main87911-12071iAE70,KE70,TE70..DX,SPD,SR,ST,XL198011-198108

main87911-12072iAE70,CE70,KE70,TE71..DX,SPD,SR,SX,TRS,XL198108-198304

main87911-12090iAE70,TE7#..GT,SE,SR,ST,TRR,XL197903-198011

REMOTE CONTROL TYPE

main87911-12091iAE70,TE7#..GT,SE,SR,ST,TRR,XL198011-198108

REMOTE CONTROL TYPE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12310iAE70,KE70,TE70..DX,SPD,SR,ST,XL197903-198011

main87940-12330iAE70,TE7#..(GT,SE,XL)..4D197912-198011

REMOTE CONTROL TYPE

main87940-12390iAE70,TE7#..2D197912-198011

REMOTE CONTROL TYPE

main87940-19575iAE70,KE70,TE70..DX,SPD,SR,ST,XL198011-198108

sub87940-12311

main87940-19576iAE70,CE70,KE70,TE71..DX,SPD,SR,SX,TRS,XL198108-198304

sub87940-12312

main87940-19585iAE70,TE7#..(GT,SE,XL)..4D198011-198108

REMOTE CONTROL TYPE

sub87940-12331

main87940-19586iAE70,CE70,KE70,TE71..(DX,GT,SE,SX,XL)..4D198108-198304

REMOTE CONTROL TYPE

sub87940-12332

main87940-19595iAE70,TE7#..2D198011-198102

REMOTE CONTROL TYPE

main87940-19635iAE70,TE7#..2D198102-198108

REMOTE CONTROL TYPE

main87940-19636iAE70,KE70,TE71..2D198108-198304

REMOTE CONTROL TYPE

main87940-80003iTE71..TRR198108-198304

APEX

main87940-80010iAE70..HT..(3FC,5F)..SE198203-198203

LIMITED EDITION

main87940-80027iAE70..SE..4D198210-198304

*RCM,SE SALOON(WHITE STAY)

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-12070iAE70,KE70,TE70..DX,SPD,SR,ST,XL197903-198011

main87941-12071iAE70,KE70,TE70..DX,SPD,SR,ST,XL198011-198108

main87941-12072iAE70,CE70,KE70,TE71..DX,SPD,SR,SX,TRS,XL198108-198304

main87941-12090iAE70,TE7#..GT,SE,SR,ST,TRR,XL197903-198011

REMOTE CONTROL TYPE

main87941-12091iAE70,TE7#..GT,SE,SR,ST,TRR,XL198011-198108

REMOTE CONTROL TYPE

9331915016

main93319-15016

9411040600

main94110-40600

14 parts on this diagram · 1 diagram in section
