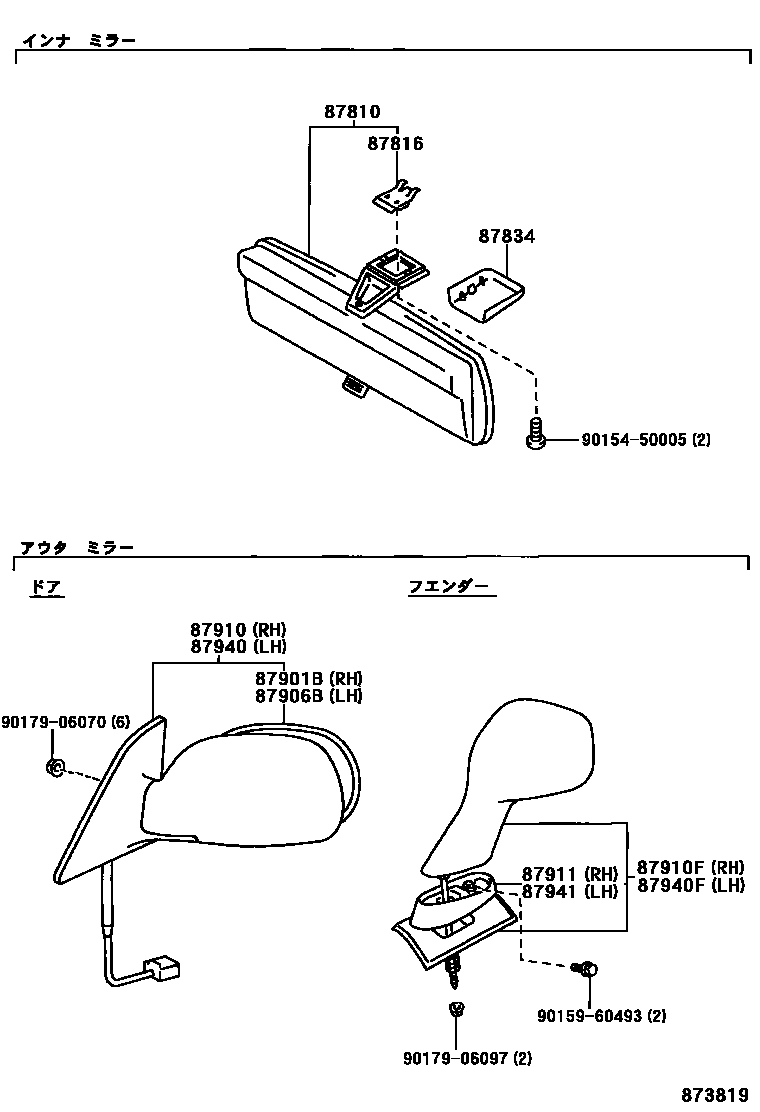

Toyota SPRINTER — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12230-A0iAE110,114,CE11#,EE111..XEVIN199505-199605

IVORY,TRIM4#

sub87810-12250

main87810-12230-B1iAE110,114,CE11#,EE111..LX199605-199704

LT.GRAY,TRIM1#

sub87810-12250

main87810-12240-A0iAE110,114,CE11#..SEVIN199505-199605

IVORY,TRIM4#

sub87810-12260

main87810-12240-B3iAE110,114,CE11#,EE111..XEVIN199510-199604

sub87810-12260

main87810-12270-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

LT.GRAY,TRIM11

sub87810-12271

main87810-12270-B1iEE111..3FC..XEVIN;AE110,114..SEVIN,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

sub87810-12271

main87810-12280-B0iAE110,114..LX;EE111..3FC..LX199704-200008

LT.GRAY,TRIM1#

sub87810-12271

main87810-12280-B2iCE11#,EE111..(4FC,5F)..LX199804-200008

MD.CHARCOAL,TRIM1#

sub87810-12271

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAE11#,CE11#,EE111199704-200008

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-01020-B4iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

LT.GRAY,TRIM11

main87834-01020-B5iEE111..3FC..XEVIN;AE110,114..SEVIN,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main87834-12030-A0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main87834-12030-B4iAE110,114,EE111..(3FC,4FC,5F)..(SEVIN,XEVIN)199704-199804

main87834-12030-B6iAE110,114,EE111..(3FC,4FC,5F)..(SEVIN,XEVIN)199704-199804

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A830iAE110,114,CE11#,EE111..LX199704-200008

main87931-1E550iAE11#,CE11#,EE111199505-199704

main87931-1E690iAE110,114,CE11#,EE111..XEVIN200004-200008

main87931-1E720iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-199804

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1E230iAE110,114,CE11#,EE111..XEVIN200004-200008

main87961-1E550iAE11#,CE11#,EE111199505-199704

main87961-1E830iAE110,114,CE11#,EE111..LX199704-200008

main87961-1H050iAE110,114,CE11#,EE111..XEVIN199804-200008

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A830iAE110,114,CE11#,EE111..LX199704-200008

main87910-1E530iAE110,114,CE11#,EE111..LX199505-199704

main87910-1E560-A0iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

SUPER WHITE 2,040

main87910-1E560-B0iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

WARM GRAY PEARL ME.,1A5

main87910-1E560-B1iAE110,114,CE11#,EE111..XEVIN199605-199704

BL.GRAY ME,182

main87910-1E560-B3iAE110,114,CE11#,EE111..XEVIN199605-199704

SILVER ME,199

main87910-1E560-D0iAE110,114,CE11#,EE111..XEVIN199605-199704

RED MM,3K4

main87910-1E560-G0iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

DK GREEN MICA,6M1

main87910-1E560-G1iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

MD.GREEN M.M.,6P0

main87910-1E560-J0iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

DK.BLUE M.M.,8L2

main87910-1E570-A0iAE11#,CE11#..SCRU,SEVIN199605-199704

SUPER WHITE 2,040

main87910-1E570-B0iAE110,114,CE11#..SEVIN199505-199605

WARM GRAY PEARL ME.,1A5

main87910-1E570-B1iAE110,114,CE11#..SEVIN199505-199605

BL.GRAY ME,182

main87910-1E570-B3iAE11#,CE11#..SCRU,SEVIN199605-199704

SILVER ME,199

main87910-1E570-D0iAE110,114,CE11#..SEVIN199505-199605

RED MM,3K4

main87910-1E570-G0iAE11#,CE11#..SCRU,SEVIN199605-199704

DK GREEN MICA,6M1

main87910-1E570-G1iAE110,114,CE11#..SEVIN199505-199605

MD.GREEN M.M.,6P0

main87910-1E570-J0iAE110,114,CE11#..SEVIN199505-199605

DK.BLUE M.M.,8L2

main87910-1E690-A0iAE110,114,CE11#,EE111..XEVIN199904-200004

main87910-1E690-A1iAE110,114,CE11#,EE111..XEVIN200004-200008

main87910-1E690-B0iAE110,114,CE11#,EE111..XEVIN200004-200008

main87910-1E690-B1iAE11#,CE11#..GT,SEVIN199804-200008

DK.GRAY ME.,1B4

main87910-1E690-B2iAE11#,CE11#..GT,SEVIN199804-200008

CRYSTAL SILVER PEARL,1C1

main87910-1E690-B3iAE110,114,CE11#,EE111..XEVIN199904-200004

main87910-1E690-G0iAE110,114,CE11#,EE111..XEVIN199904-200008

main87910-1E690-J0iAE11#,CE11#..GT,SEVIN199804-200008

DK.BLUE M.M.,8L2

main87910-1E710-A0iAE110,114,CE11#,EE111..XEVIN199704-200008

SUPER WHITE 2,040

main87910-1E710-B1iAE110,114,CE11#,EE111..XEVIN199704-200008

SILVER ME,199

main87910-1E710-B2iAE110,114,CE11#,EE111..XEVIN199704-200008

WARM GRAY PEARL ME.,1A5

main87910-1E710-B3iAE110,114,CE11#,EE111..XEVIN199704-200008

DK.GRAY ME.,1B4

main87910-1E710-B5iAE110,114,CE11#,EE111..XEVIN199804-200008

CRYSTAL SILVER PEARL,1C1

main87910-1E710-D0iAE110,114,CE11#,EE111..XEVIN199704-199804

RED MM,3K4

main87910-1E710-G0iAE110,114,CE11#,EE111..XEVIN199704-200008

DK.GREEN M.M.,6P2

main87910-1E710-J0iAE110,114,CE11#,EE111..XEVIN199704-200008

DK.BLUE M.M.,8L2

main87910-1E720-A0iAE11#,CE11#..GT,SEVIN199704-199804

SUPER WHITE 2,040

main87910-1E720-B1iAE11#,CE11#..GT,SEVIN199704-199804

SILVER ME,199

main87910-1E720-B2iAE11#,CE11#..GT,SEVIN199704-199804

WARM GRAY PEARL ME.,1A5

main87910-1E720-B3iAE11#,CE11#..GT,SEVIN199704-199804

DK.GRAY ME.,1B4

main87910-1E720-D0iAE11#,CE11#..GT,SEVIN199704-199804

RED MM,3K4

main87910-1E720-G0iAE11#,CE11#..GT,SEVIN199704-199804

DK.GREEN M.M.,6P2

main87910-1E720-J0iAE11#,CE11#..GT,SEVIN199704-199804

DK.BLUE M.M.,8L2

87910FMIRROR ASSY, FENDER, RH

main87910-1E520iAE11#,CE11#,EE111199505-199704

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-12310iAE11#,CE11#,EE111199505-199704

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1E230-A0iAE110,114,CE11#,EE111..XEVIN199904-200004

main87940-1E230-A1iAE110,114,CE11#,EE111..XEVIN199904-200004

main87940-1E230-B0iAE11#,CE11#..GT,SEVIN199804-200008

WARM GRAY PEARL ME.,1A5

main87940-1E230-B1iAE11#,CE11#..GT,SEVIN199804-200008

DK.GRAY ME.,1B4

main87940-1E230-B2iAE11#,CE11#..GT,SEVIN199804-200008

CRYSTAL SILVER PEARL,1C1

main87940-1E230-B3iAE11#,CE11#..GT,SEVIN199804-200008

SILVER ME,199

main87940-1E230-G0iAE110,114,CE11#,EE111..XEVIN199904-200008

main87940-1E230-J0iAE11#,CE11#..GT,SEVIN199804-200008

DK.BLUE M.M.,8L2

main87940-1E530iAE110,114,CE11#,EE111..LX199505-199704

main87940-1E560-A0iAE110,114,CE11#,EE111..XEVIN199605-199704

SUPER WHITE 2,040

main87940-1E560-B0iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

WARM GRAY PEARL ME.,1A5

main87940-1E560-B1iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

BL.GRAY ME,182

main87940-1E560-B3iAE110,114,CE11#,EE111..XEVIN199605-199704

SILVER ME,199

main87940-1E560-D0iAE110,114,CE11#,EE111..XEVIN199605-199704

RED MM,3K4

main87940-1E560-G0iAE110,114,CE11#,EE111..XEVIN199605-199704

DK GREEN MICA,6M1

main87940-1E560-G1iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

MD.GREEN M.M.,6P0

main87940-1E560-J0iAE11#,CE11#,EE111..SCRU,XEVIN199505-199605

DK.BLUE M.M.,8L2

main87940-1E570-A0iAE110,114,CE11#..SEVIN199505-199605

SUPER WHITE 2,040

main87940-1E570-B0iAE110,114,CE11#..SEVIN199505-199605

WARM GRAY PEARL ME.,1A5

main87940-1E570-B1iAE11#,CE11#..SCRU,SEVIN199605-199704

BL.GRAY ME,182

main87940-1E570-B3iAE11#,CE11#..SCRU,SEVIN199605-199704

SILVER ME,199

main87940-1E570-D0iAE11#,CE11#..SCRU,SEVIN199605-199704

RED MM,3K4

main87940-1E570-G0iAE11#,CE11#..SCRU,SEVIN199605-199704

DK GREEN MICA,6M1

main87940-1E570-G1iAE110,114,CE11#..SEVIN199505-199605

MD.GREEN M.M.,6P0

main87940-1E570-J0iAE110,114,CE11#..SEVIN199505-199605

DK.BLUE M.M.,8L2

main87940-1E830iAE110,114,CE11#,EE111..LX199704-200008

main87940-1H040-A0iAE110,114,CE11#,EE111..XEVIN199704-200008

SUPER WHITE 2,040

main87940-1H040-B1iAE110,114,CE11#,EE111..XEVIN199704-200008

SILVER ME,199

main87940-1H040-B2iAE110,114,CE11#,EE111..XEVIN199704-200008

WARM GRAY PEARL ME.,1A5

main87940-1H040-B3iAE110,114,CE11#,EE111..XEVIN199704-200008

DK.GRAY ME.,1B4

main87940-1H040-B5iAE110,114,CE11#,EE111..XEVIN199804-200008

CRYSTAL SILVER PEARL,1C1

main87940-1H040-D0iAE110,114,CE11#,EE111..XEVIN199704-199804

RED MM,3K4

main87940-1H040-G0iAE110,114,CE11#,EE111..XEVIN199704-200008

DK.GREEN M.M.,6P2

main87940-1H040-J0iAE110,114,CE11#,EE111..XEVIN199704-200008

DK.BLUE M.M.,8L2

main87940-1H050-A0iAE11#,CE11#..GT,SEVIN199704-199804

SUPER WHITE 2,040

main87940-1H050-B1iAE11#,CE11#..GT,SEVIN199704-199804

SILVER ME,199

main87940-1H050-B2iAE11#,CE11#..GT,SEVIN199704-199804

WARM GRAY PEARL ME.,1A5

main87940-1H050-B3iAE11#,CE11#..GT,SEVIN199704-199804

DK.GRAY ME.,1B4

main87940-1H050-D0iAE11#,CE11#..GT,SEVIN199704-199804

RED MM,3K4

main87940-1H050-G0iAE11#,CE11#..GT,SEVIN199704-199804

DK.GREEN M.M.,6P2

main87940-1H050-J0iAE11#,CE11#..GT,SEVIN199704-199804

DK.BLUE M.M.,8L2

87940FMIRROR ASSY, FENDER, LH

main87940-1E520iAE11#,CE11#,EE111199505-199704

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-12290iAE11#,CE11#,EE111199505-199704

9015450005

main90154-50005

9015960493

main90159-60493

9017906070

main90179-06070

9017906097

main90179-06097

15 parts on this diagram · 1 diagram in section
