Toyota SPRINTER — MIRROR

0001 1 0002 1

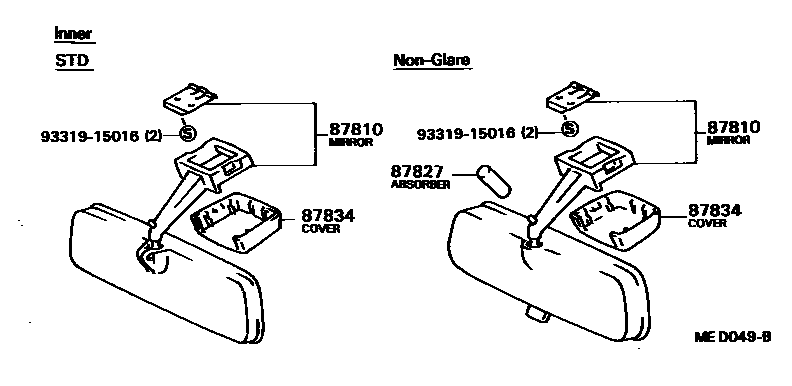

87810MIRROR ASSY, INNER REAR VIEW

main87810-12190-02iAE80;AE81,CE80..DX198305-198408

STD TYPE,MAROON,RED/MAROON,TRIM3#

main87810-12190-03iAE80,EE80;AE81,CE80..DX198305-198704

STD TYPE,GRAY,GRAY,TRIM1#

main87810-12190-04iAE80,EE80;AE81,CE80..DX198305-198704

STD TYPE,BLUE,BLUE,TRIM8#

main87810-12190-06iAE80,EE80;AE81,CE80..DX198408-198704

STD TYPE,BROWN,BROWN,TRIM4#

main87810-12200-02iAE81,82,CE80..SE,SR,SX,XL,ZX198305-198408

NON-GLARE TYPE,MAROON,RED/MAROON,TRIM3#

sub87810-12221

main87810-12200-03iAE81,82,CE80..GT,SE,SR,SX,XL,ZX198305-198704

NON-GLARE TYPE,GRAY,GRAY,TRIM1#

sub87810-12221

main87810-12200-04iAE81,82,CE80..SE,SR,SX,XL,ZX198305-198704

NON-GLARE TYPE,BLUE,BLUE,TRIM8#

sub87810-12221

main87810-12200-06iAE81,82,CE80..SE,SR,SX,XL,ZX198408-198704

NON-GLARE TYPE,BROWN,BROWN,TRIM4#

sub87810-12221

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iAE81,82,CE80..SE,SX,XL,ZX198305-198309

L=35,NON-GLARE TYPE

main87828-23010iAE81,82,CE80..GT,SE,SR,SX,XL,ZX198309-198704

L=38.5,NON-GLARE TYPE

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-18iAE8#,CE80,EE80198305-198704

IVORY,IVORY,TRIM3#,4#

9331915016

main93319-15016

4 parts on this diagram · 2 diagrams in section
