Toyota SPRINTER — METER

0001 1�����(�������) 0002 1�����(�������) 0003 1������ 0004 1����� & ����(YAZAKI) 0005 1����� & ����(AMERICA YAZAKI) 0006 1����� & ���� - �����(�������)0007 1����� & ���� - ������ 0008 1

83110SPEEDOMETER ASSY

main83110-1E660iAE109,CE10#,EE10#199804-200206

main83110-1E690iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

83132CASE, COMBINATION METER

main83132-0W010iAE100,CE100,106,108,EE10#..MTM..(CTD,DX,L,LX,XL)199205-199305

main83132-1A450iAE101..5F..SEG199106-199305

main83132-1A470iAE101..4FC..SEG199106-199305

main83132-1A530iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

main83132-1E020iAE100,CE100,106,108,EE10#..MTM..(CTD,DX,L,LX,XL)199205-199305

83134COVER, COMBINATION METER, NO.1

main83134-0W010iCE10#,EE102,103..MTM199705-200206

main83134-1E040iAE100,CE100,104,106,108,EE10#..MTM..(CTD,DX,DXJ,L,LX,XL)199305-199605

83145LENS, METER, NO.1

main83145-0W010iAE100,CE100,104,106,108,EE10#..MTM..(CTD,DX,DXJ,L,LX,XL)199305-199605

main83145-89320×2iAE100,CE100,106,108,EE10#..MTM..(CTD,DX,L,LX,XL)199205-199305

83180DETECTOR ASSY, REVOLUTION

main83180-32020iCE10#199106-199804

83181ASENSOR, SPEEDOMETER

main83181-12010iAE104,109..4FC199109

main83181-12020iAE100,101,EE10#..4F,4FC,5F199106

main83181-12030iCE100,102,106,107,108..5F199106

main83181-12040iAE100,EE10#..3FC199106

main83181-12050iAE104,109,CE104,105,109..5F199109

main83181-12060iCE100,102,106,107,108..4FC199106

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-0W010iAE100,EE10#..MTM..(CTD,DX,DXJ,L,LX,XL)199205-199704

main83243-0W020iCE10#..5F199605-199704

main83243-1E020iAE100,EE10#..3FC..(CTD,DX,L,LX,XL)199205-199305

main83243-1E040iCE100,106,108..5F..(CTD,DX,L,LX,XL)199205-199305

main83243-1E060iAE100,EE10#..MTM..(CTD,DX,DXJ,L,LX,XL)199305-199704

main83243-1E080iCE100,104,106,108..5F..(CTD,DX,L,LX,XL)199305-199605

main83243-1E120iCE109199109-199605

main83243-1E710iAE101..SEG199106-199201

main83243-1E890iAE100,EE101..SEL,XE199106-199202

main83243-1E891iAE100,EE101..SEL,XE199202-199305

main83243-1H010iAE101199106-199202

main83243-1H011iAE101199202-199305

main83243-1H012iAE101199305-199505

main83243-1H030iCE100..SEL,XE199106-199202

main83243-1H031iCE100..SEL,XE199202-199305

main83243-1H050iAE104..5F..(SEL,XE)199109-199505

main83243-1H070iAE104..4FC;AE100,EE101..SEL,XE199305-199505

main83243-1H090iCE104..SEL,XE199109-199305

sub83882-1A470

main83243-1H530iAE101..SEG199201-199305

main83882-0W010iEE104..5F199612-199704

main83882-0W011iCE10#..5F199806-200206

main83882-0W020iCE108..5F199612-199804

main83882-0W021iCE10#..5F199804-199806

main83882-12080iAE109..4FC199605-199704

main83882-1A420iEE104..3FC199612-199804

main83882-1A430iCE108..5F199612-199804

main83882-1A431iCE102,107..4FC199804-200206

main83882-1A600iAE109..5F199704-199804

main83882-1A602iEE102,103..3FC;AE109,EE104..3FC,5F199804-200206

main83882-1A610iAE109..4FC199704-199804

main83882-1A612iAE109..4FC199804-200206

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-0W010iAE100,EE10#..MTM..(CTD,DX,DXJ,L,LX,XL)199205-199705

main83244-0W011iEE102,103..MTM199804-200206

main83244-0W020iCE10#..5F199605-199804

main83244-0W021iCE10#..5F199804-200206

main83244-1A810iAE101..SEG199106-199305

main83244-1A830iAE10#,EE101..GT,SEG,SEL,XE199106-199505

main83244-1A850iCE100,104..SEL,XE199106-199505

main83244-1E020iAE100,EE103,104,107,108..3FC..(DX,L,LX,XL);AE104,109,EE101,102,106..(3FC,4FC,5F)..(CTD,DX,DXJ,LX)199205-199804

main83244-1E040iCE109;CE100,106,108..4FC..(DX,L,LX,XL)199305-199605

main83883-1A431iCE102,107..4FC199804-200206

main83883-1A602iAE109,EE104;EE102,103..3FC199804-200206

83247PLATE, METER CIRCUIT

main83149-1E020iAE100,CE100,104,106,108,EE10#..MTM..(CTD,DX,DXJ,L,LX,XL)199305-199605

main83247-0W010iAE100,CE100,104,106,108,EE10#..MTM..(CTD,DX,DXJ,L,LX,XL)199305-199605

main83247-1H050iAE101..5F..SEG199106-199305

main83247-1H070iAE101..4FC..SEG199106-199305

main83247-1H330iAE100,CE100,104,EE101..SEL,XE199106-199505

main83247-1H350iAE101199106-199505

main83247-1H370iAE104..5F..(SEL,XE)199109-199505

main83247-1H390iAE104..4FC199109-199505

main83861-0W010iCE106,109,EE102,103..MTM199705-199711

main83861-0W011iCE10#..5F199804-200206

main83861-0W030iEE10#..MTM199711-199804

main83861-0W031iEE102,103..MTM199804-200206

main83861-12080iAE109..4FC199605-199704

main83861-1A420iCE108..4FC199711-199804

main83861-1A421iEE10#..MTM199711-199804

main83861-1A422iEE102,103..3FC199804-200206

main83861-1A431iCE102,107..4FC199804-200206

main83861-1A600iAE109..5F199704-199711

main83861-1A601iAE109..5F199711-199804

main83861-1A602iAE109..5F199804-200206

main83861-1A610iAE109..4FC199704-199711

main83861-1A611iAE109..4FC199711-199804

main83861-1A612iAE109..4FC199804-200206

main83861-1E110iEE104199804-200206

83910CLOCK ASSY

main83910-12460iAE10#,CE10#,EE10#199106

JECO

main83910-12480iAE10#,CE10#,EE10#199106

RHYTHM

main83910-12490iAE101..SEG199106-199305

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iAE10#,CE100,EE101..ATM..(GT,SEG,SEL,XE)199106-199505

main83970-12030iAE100,109,CE100,102,106,107,108,EE10#..ATM..(CTD,DX,DXJ,L,LX,XL)199106-200206

main83970-20010iAE101..4FC..SEG199106-199305

831611E020CASE, COMBINATION METER MIRROR, NO.1

main83161-1E020

8316120280CASE, COMBINATION METER MIRROR, NO.1

main83161-20280

9356855014

main93568-55014

9671124018

main96711-24018

9671124030

main96711-24030

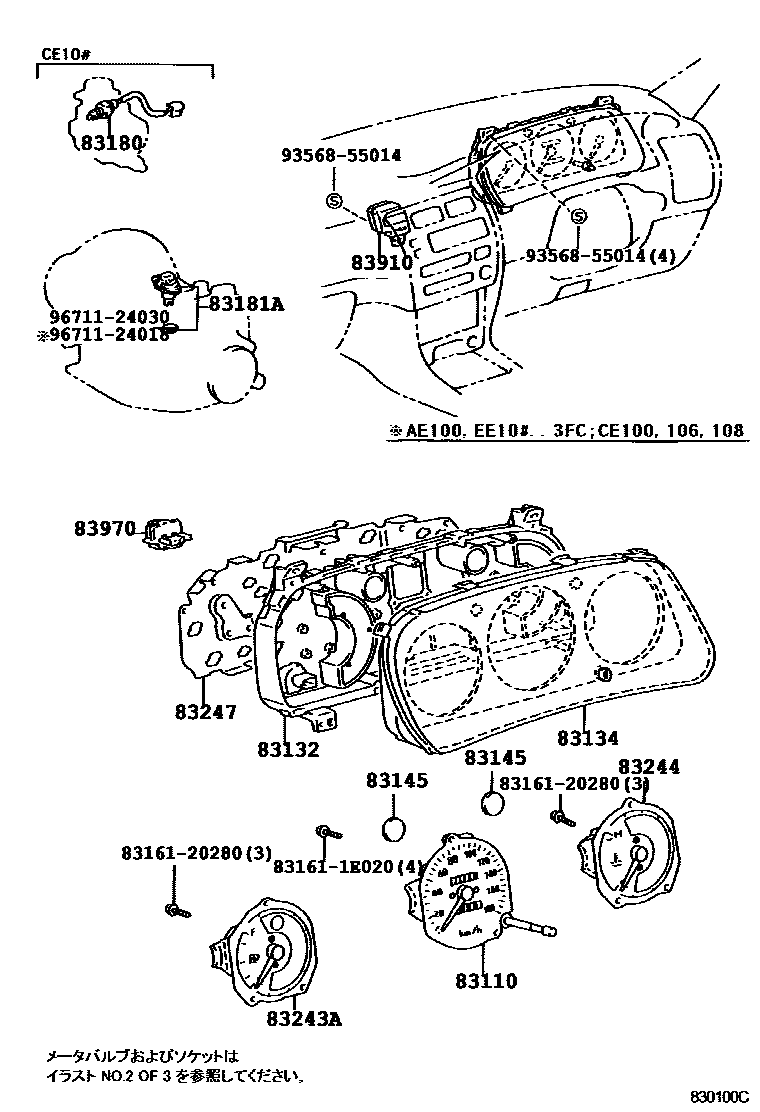

16 parts on this diagram · 8 diagrams in section
