Toyota SPRINTER — METER

0001 1 0002 1 0003 1 0005 1W(DIGITAL SPEEDOMETER) 0006 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080iAE9#,CE9#,EE9#198705-199106

main83109-12030iAE9#,CE9#,EE9#198705-199106

main83109-20030iAE9#,CE9#,EE9#198705-199106

main90981-11018iAE9#,CE9#,EE9#198705-199106

main99132-12034iAE9#,CE9#,EE9#198705-199106

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAE9#,CE9#,EE9#198705-199106

12V 3.4W BULB

main83101-14040iAE9#,CE9#,EE9#198705-199106

14V 1.4W BULB

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-13010iAE95..5F..AV1198710-198908

main83247-13010iAE95..5F..AV1198710-198908

NO.1

main83247-13011iAE95..4FC..AV1198905-199009

main83247-13110iAE95..4FC..(AV1,MX)198710-199106

main83247-13430iAE91..SE..EFI198905-199008

main83247-13450iAE91..SE..EFI199005-199106

main83247-13450iAE91..SE..EFI198905-199005

main83247-13510iAE91..SE..EFI198905-199106

main83247-13650iAE95..4FC..MX199008-199106

main83247-13670iAE95..5F..(LX,MX)199008-199106

main83247-13850iAE95..5F..MX199001-199106

main83247-13850iAE95..5F..SE199008-199106

main83247-13870iAE95..5F..SE199008-199106

main83247-13890iAE91..SE..EFI199008-199106

main83247-13890iAE95..4FC..SE199008-199106

main83247-1E080iAE91..XI;AE92..5F198705-198905

main83247-1E080iAE92..4FC198705-198905

main83247-1E080iAE92..4FC198705-198905

NO.1

main83247-1E081iAE92..5D..4FC198905-199106

main83247-1E081iAE92..4FC198905-199106

main83247-1E081iAE92..4FC198905-199106

NO.1

main83247-1E081iAE92..4FC198905-199106

main83247-1E140iAE92..5F198705-198905

main83247-1E141iAE92..5F198905-199106

main83247-1E160iAE92..4FC198705-198905

main83247-1E161iAE92..4FC198905-199106

main83247-1E180iAE92..4FC198705-198905

main83247-1E181iAE92..4FC198905-199106

main83247-1E240iAE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL198705-198908

NO.1

main83247-1E241iAE95..5F..(LX,MX);AE91,CE90,EE90..DX,L,LX,MX198905-199108

NO.1

sub83247-13011

main83247-1E480iAE91..G,SE;AE95..5F..(AV2,RVS,SE)198705-198908

NO.1

main83247-1E481iAE91..(G,SE)..EFI;AE95..5F..(AV2,RVS)198905-199106

NO.1

main83247-1E481iAE91..MX199001-199106

main83247-1E500iCE90..SE198705-198905

NO.1

sub83247-1E480

main83247-1E501iCE90,95..MX199001-199106

main83247-1E501iCE90,95..SE198905-199106

NO.1

main83247-1E740iAE91..XI,XS198705-199106

main83247-1E740iAE92198705-199106

main83247-1E760iAE91..XI,XS198705-199106

main83247-1E760iAE92198705-199106

main83247-1E780iAE95..4FC..SE..CBR;AE95..4FC..(AV2,RVS)198710-198908

NO.1

main83247-1E781iAE95..4FC..(AV2,RVS,SE)198905-199106

NO.1

main83247-1E781iAE95..4FC..MX199001-199106

83110SPEEDOMETER ASSY

main83110-1A800iAE95,EE98..AV1,DX,XL198705-198908

main83110-1A801iAE91,95,EE9#..AV1,CTD,DX,L,LX,MX,XL198905-199108

sub83110-1A802

main83110-1A840iAE91,95..AV2,G,RVS,SE198705-198908

main83110-1A841iAE91,95..(AV2,G,RVS,SE)..EFI198905-199106

main83110-1A841iAE91,95..MX199001-199106

main83110-1E080iAE91,92..GT,XI198705-198905

main83110-1E081iAE92;AE91..EFIS198905-199106

sub83110-1E082

main83110-1E390iCE96,EE96198705-198908

sub83110-1A800

main83110-1E391iCE9#..CTD,DX,LX,MX,XL198905-199108

main83110-1E400iCE90..SE198705-198905

sub83110-1A840

main83110-1E401iCE90,95..SE198905-199106

sub83110-1A841

main83110-1E401iCE90,95..MX199001-199106

sub83110-1A841

83132CASE, COMBINATION METER

main83132-1A090iAE91,92..GT,XI198705-198905

main83132-1A091iAE92..5D198905-199106

main83132-1A190iAE95..AV1;AE91,CE9#,EE9#..CTD,DX,L,LX,MX,XL198705-199108

main83132-1A210iAE95..LX,MX199008-199106

main83132-1A250iAE91,95,CE90,95..(AV2,G,RVS,SE)..(CBR,DSL,EFI)198705-199106

main83132-1A250iAE91,95,CE90,95..MX199001-199106

main83132-1A290iAE91,92..GT,XI,XS198705-199106

83133PLATE, COMBINATION METER, NO.1

main83133-13170iAE95..5F..MX199001-199106

main83133-13170iAE95..5F..SE199008-199106

main83133-13190iAE95..5F..SE199008-199106

sub83133-13210

main83133-13210iAE95..4FC..SE199008-199106

main83133-13230iAE91..SE..EFI199008-199106

sub83133-13210

main83133-1A250iAE92..5F198705-199106

main83133-1A270iAE92..5F198705-199106

sub83133-1A290

main83133-1A290iAE92..4FC198705-199106

main83133-1A310iAE91..XI,XS;AE91..SE..EFIS198705-199106

main83133-1A710iAE95..5F..AV1;AE91,CE90,96,EE9#..CTD,DX,XL198705-199108

main83133-1A710iAE91,CE90,EE90..LX198910-199106

main83133-1A730iAE91,95,CE90,95,EE90..L,LX,MX198905-199106

main83133-1A770iAE91..(G,SE)..EFI;AE95..5F..(AV2,RVS)198705-199106

main83133-1A770iAE91..MX199001-199106

main83133-1A790iCE90,95..MX199001-199106

main83133-1A790iCE90,95..SE198705-199106

main83133-1E170iAE91,92..GT,XI,XS198705-199106

main83133-1E190iAE91..5F..(XI,XS)198705-199106

main83133-1E190iAE91..5F..(XI,XS)198705-199106

main83133-1E210iAE92..5F198705-198905

main83133-1E230iAE92..4FC198705-198905

main83133-1E250iAE91..4FC..XI198705-198905

main83133-1E270iAE92..4FC198705-198905

main83133-1E290iAE91,92..GT,XI,XS198705-199106

main83133-1E310iAE95..4FC..MX199001-199106

main83133-1E310iAE95..4FC..(AV2,RVS,SE)198710-199106

main83133-1E330iAE95..5F..RVS198802-198908

sub83133-1E310

main83133-1E330iAE91..5F..SE..EFI198905-199005

sub83133-1E310

main83133-1E330iAE91..5F..SE..EFI199005-199106

sub83133-1E310

main83133-1E550iAE92..5F198905-199106

main83133-1E570iAE92..4FC198905-199106

main83133-1E590iAE91..4FC..XS198905-199106

main83133-1E610iAE92..4FC198905-199106

main83133-1E630iAE92..4D..5F198905-199106

main83133-1E650iAE92..4D..5F198905-199106

main83133-1E670iAE92..4D..4FC198905-199106

main83133-1E710iAE92..4D..4FC198905-199106

main83133-1E730iAE91..SE..EFI198905-199008

83138GLASS, SPEEDOMETER

main83138-12870iAE91,CE90,96,EE9#..CTD,DX,STD198705-199108

main83138-12890iAE91,95,CE9#,EE9#..AV1,L,LX,MX,XL198705-199108

main83138-12890iAE91,CE9#,EE9#..CTD,DX,STD198705-199108

main83138-1A010iAE91,95,CE90,95,EE90..(AV2,G,L,LX,MX,RVS,SE)..(CBR,DSL,EFI)198705-199106

83145LENS, METER, NO.1

main83145-13010iAE95..4FC..(AV1,MX)198710-199106

main83145-13030iEE98..(3FC,5F)..XL198908-199108

main83145-13030iAE95..5F..AV1198802-199106

main83145-13230iAE91,EE9#..CTD,DX,LX,XL198905-199108

main83145-13330iAE95..4FC..MX199008-199106

sub83145-13350

main83145-13350iAE95..5F..(LX,MX)199008-199106

main83145-1E270iEE96,98198705-198908

main83145-1E290iAE91,95,EE90..(3FC,4F,5F)..(L,MX)198705-198905

main83145-1E290iEE98..(3FC,5F)..XL198808-198908

main83145-1E310iCE90..DX198705-198709

sub83145-1E350

main83145-1E330iCE90..LX198705-198709

sub83145-1E350

main83145-1E330iCE90..LX198705-199108

sub83145-1E350

main83145-1E350iCE90,95..MX198705-199106

main83145-1E350iCE96..XL198908-199108

main83145-1E390iAE91,95,EE9#..AV1,CTD,DX,L,LX,MX,XL198705-199108

main83145-1E410iCE90..LX198910-199106

main83145-1E410iCE9#..DX,LX,MX,STD,XL198705-199108

main83145-1E470iEE96198808-198908

main83145-1E490iAE91,CE9#,EE9#..DX,STD198705-199108

sub83145-1E510

main83145-1E710iCE90,95..LX198905-199106

main83145-1E870iAE91,92..GT,XI,XS198705-199106

83248CHIME, SPEED WARNING

main86640-12060iAE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL198705-198908

main86640-12100iAE91,95,CE90..AV2,G,RVS,SE198705-198908

main86640-12120iAE91,92..GT,XS198905-199108

main86640-12130iAE91,92..GT,XI198705-199106

main86640-12140iAE91,92..GT,XI198705-198905

83310GAGE ASSY, FUEL RECEIVER

main83243-1A150iAE91,92..GT,XI198705-198905

main83243-1A151iAE92;AE91..EFIS198905-199106

main83243-1A230iAE95..AV2198705-198908

main83243-1A231iAE95..4FC..MX199001-199106

main83243-1A231iAE95..SE198905-199106

main83243-1A270iAE91,95,EE9#..(3FC,4F,5F)..(DX,L,LX,MX,STD,XL)198705-198908

main83243-1A271iAE91,95,EE9#..(3FC,4F,5F)..(AV1,CTD,DX,L,LX,MX,XL)198905-199108

main83243-1A290iCE96198705-198908

main83243-1A291iCE90..DX,LX,MX198905-199108

main83243-1A370iAE95..4FC..MX198710-198802

main83243-1A371iAE95..4FC..MX198905-199106

main83243-1A390iAE95..RVS198802-198908

main83243-1A391iAE95..RVS198908-199009

main83243-1A450iAE95..5F..AV1198802-198908

main83243-1A470iAE95..4FC..AV1;AE95..4FC..MX..CBR198802-198908

83909KNOB, CLOCK

main83909-12320iAE95..AV1;AE91,CE90,96,EE9#..CTD,DX,LX,XL198705-199108

83910CLOCK ASSY

main83910-12390iAE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL198705-199108

main83910-12400iAE95..AV2,RVS198905-199108

JECO

main83910-12400iAE91,95,CE90..AV2,G,RVS,SE198705-198905

main83910-12440iAE91..SE..EFIS;AE91,92..GT,XI,XS198705-199106

main83910-12440iAE92..5D198905-199106

main83910-12450iAE91,95,CE90,EE90..(G,L,LX,MX,SE)..(CBR,DSL,EFI)198905-199108

RHYTHM

main83910-14340iAE91,92..GT,XI,XS198705-199106

83918KNOB, CLOCK

main83918-12320iAE95..AV1;AE91,CE90,96,EE9#..CTD,DX,LX,XL198705-199108

83919SCREW, CLOCK

main83919-12320iAE95..5F..(LX,MX);AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL198705-199108

9009300416

main90093-00416

9009900909

main90099-00909

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9016750020

main90167-50020

9411540400

main94115-40400

9451100400

main94511-00400

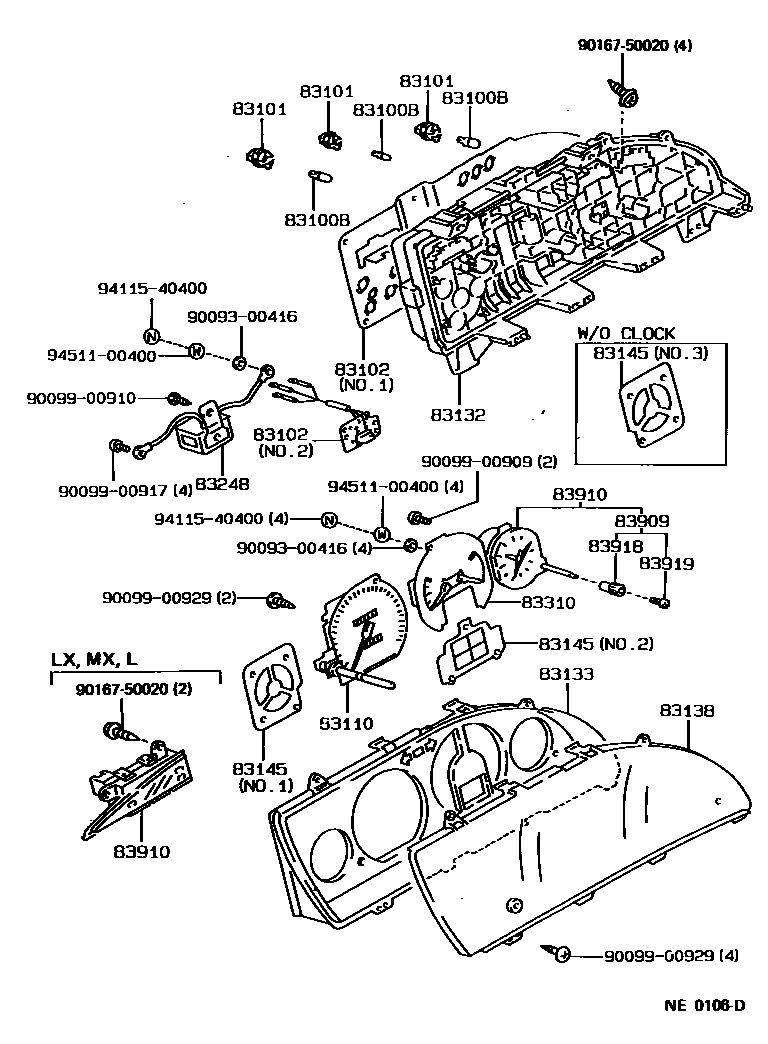

22 parts on this diagram · 5 diagrams in section
