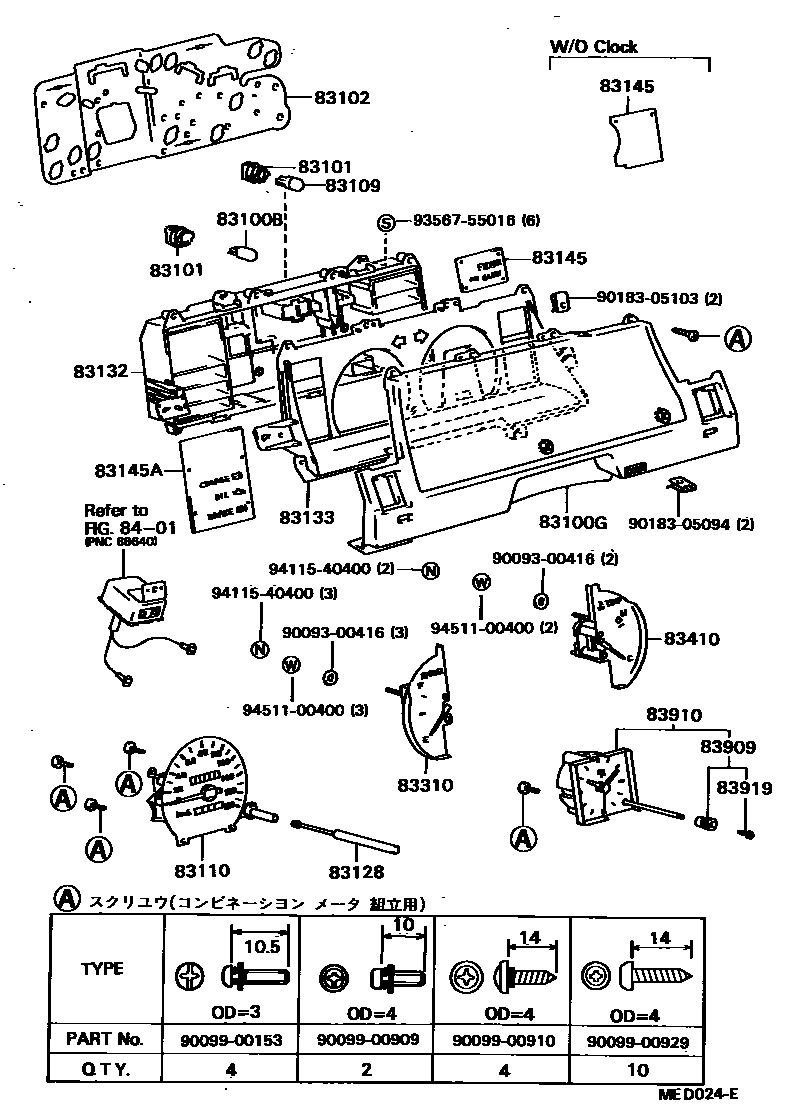

Toyota SPRINTER — METER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×12iAE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX198305-198704

main99132-12034×8iAE8#,CE80,EE80198305-198704

83100GGLASS, COMBINATION METER

main83138-12370iAE80,81,CE80..XL198305-198505

main83138-12390iAE80,81,CE80..DX,SPD198305-198505

W/O CLOCK

main83138-12410iAE80,81,CE80..DX,SPD198401-198505

W/CLOCK

main83138-12510iAE81,82,CE80..GT,SE,SR,SX,ZX198305-198505

main83138-12550iAE82..GT,SR,ZX198305-198505

W/*DS

main83138-12630iAE82198505-198704

W/*DS

main83138-12670iAE81,CE80,EE80..DX,SPD,XL198505-198704

W/CLOCK

main83138-12690iAE81,CE80,EE80..DX,SPD198505-198704

W/O CLOCK

main83138-12770iAE8#,CE80..GT,SE,ZX198505-198704

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×8iAE8#,CE80,EE80198305-198704

OD=18,W/ANALOGUE METER

main83101-14040×12iAE81,82,CE80..GT,SE,SR,SX,ZX198305-198704

OD=11.3

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1A450iAE81,EE80..DX,SPD198505-198704

W/O CLOCK

main83247-1A470iAE80..4F;AE81..4F..XL198305-198401

W/CLOCK

main83247-1A490iAE80..3FC..DX198305-198505

W/O CLOCK

main83247-1A510iAE81,EE80..3FC..XL198505-198704

main83247-1A530iCE80..DX198305-198704

W/O CLOCK

main83247-1A550iCE80..DX,XL198305-198701

W/CLOCK

main83247-1A870iAE81..5F198305-198704

main83247-1A890iAE81..ATM..(SE,SX,ZX)198305-198704

main83247-1E030iAE82198305-198704

main83247-1E050iCE80..SE,SX198305-198704

main83247-1E150iAE82..GT,SE,SR,ZX198305-198704

W/*DS

main83247-1E830iAE81,EE80..DX,SPD198701-198704

W/CLOCK

main83247-1E850iCE80..DX198701-198704

W/CLOCK

83109BULB, COMBINATION METER, NO.2

main83109-24030×3iAE80,81,CE80,EE80198305-198704

main83109-24040×2iAE82198505-198704

83110SPEEDOMETER ASSY

main83110-1A410iCE80..DX,XL198305-198408

main83110-1A411iCE80..DX,XL198408-198505

main83110-1A412iCE80..DX,XL198505-198704

main83110-1A420iAE80,81..ATM..(DX,XL)198305-198408

main83110-1A421iAE80,81..ATM..(DX,XL)198408-198505

main83110-1A422iAE81,EE80..3FC..XL198505-198704

main83110-1A430iAE82,CE80..SE,SR,SX,ZX198305-198408

main83110-1A431iAE82,CE80..SE,SR,SX,ZX198408-198505

main83110-1A432iAE81..5F198505-198704

main83110-1A440iAE81..ATM..(SE,SX,ZX)198305-198408

main83110-1A441iAE81..ATM..(SE,SX,ZX)198408-198505

main83110-1A442iAE81..4FC198505-198704

main83110-1A730iAE82..GT198410-198505

main83110-1A731iAE82..GT198505-198704

main83110-1A780iAE82..ZX198505-198704

83128KNOB, TRIP COUNTER

main83128-12690iAE80,81,CE80,EE80..DX,SPD,XL198305-198704

main83128-12710iAE81,82,CE80..GT,SE,SR,SX,ZX198305-198704

main83128-12730iAE82..GT,SE,SR,ZX198305-198704

W/*DS

83132CASE, COMBINATION METER

main83132-12510iAE80,81,CE80,EE80..DX,SPD,XL198305-198704

main83132-12550iAE81,82,CE80..GT,SE,SR,SX,ZX198305-198704

main83132-12610iAE82..GT,SR,ZX198305-198505

W/*DS

main83132-1A010iAE82198505-198704

W/*DS

83133PLATE, COMBINATION METER, NO.1

main83133-12590iCE80..DX,XL198305-198505

main83133-12610iAE80,81..DX,SPD,XL198305-198505

main83133-12650iAE81,82,CE80..GT,SE,SR,SX,ZX198305-198505

main83133-12770iAE82..GT,SR,ZX198305-198505

W/*DS

main83133-1A010iAE82198505-198704

W/*DS

main83133-1A030iAE82..GT,ZX198505-198704

main83133-1A050iAE81,EE80..3FC,4F198505-198704

main83133-1A070iCE80..DX,XL198505-198704

main83133-1A130iAE81,CE80..SE,ZX198505-198704

83145LENS, METER, NO.1

main83145-12650iCE80..DX198305-198505

W/O CLOCK

main83145-12670iCE80..DX,XL198305-198505

W/CLOCK

main83145-1A050iAE80,81,EE80..DX,SPD198305-198704

W/O CLOCK

main83145-1A070iAE81..SE,SX,ZX198305-198505

main83145-1A090iAE82..SR,SX,ZX198305-198505

main83145-1A110iCE80..SE,SX198305-198505

main83145-1A370iAE82..GT198410-198704

main83145-1A570iCE80..DX,XL198505-198704

W/CLOCK

main83145-1A590iCE80..DX198505-198704

W/O CLOCK

main83145-1A830iAE81..SE,ZX198505-198704

main83145-1A850iAE82..SE198505-198704

main83145-1A870iCE80..SE198505-198704

83145ALENS, METER, NO.2

main83145-12570iAE80,81..DX,SPD,XL198305-198505

main83145-12590iCE80..DX,XL198305-198505

main83145-1A150iAE81,CE80..SE,SX,ZX198305-198505

main83145-1A170iAE82..SR,SX,ZX198305-198505

main83145-1A390iAE82..GT198410-198505

main83145-1A490iAE81,EE80..3FC,4F198505-198704

main83145-1A510iCE80..DX,XL198505-198704

main83145-1E030iAE81,CE80..SE,ZX198505-198704

main83145-1E050iAE82..SE198505-198704

main83145-1E230iAE82..GT,ZX198505-198704

83310GAGE ASSY, FUEL RECEIVER

main83243-12510iAE80,81,CE80,EE80..DX,SPD,XL198305-198704

main83243-12590iAE81,82,CE80..SE,SR,SX,ZX198305-198505

main83243-12830iAE82..GT198410-198704

main83243-1A010iAE81,CE80..SE,ZX198505-198704

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-12730iAE80,81,CE80,EE80..DX,SPD,XL198305-198704

main83244-12890iAE81,82,CE80..SE,SR,SX,ZX198305-198505

main83244-1A330iAE82..GT198410-198704

main83244-1A410iAE81,CE80..SE,ZX198505-198704

83909KNOB, CLOCK

main83909-12320iAE81..XL;AE80,CE80..DX,SPD,XL198305-198401

83910CLOCK ASSY

main83910-12320iAE80,81,CE80,EE80..DX,SPD,XL198401-198704

main83910-12330iAE81,CE80..SE,ZX198505-198704

W/*DS

main83910-12370iAE82..GT198410-198704

W/*AS

83919SCREW, CLOCK

main83919-12320iAE80,81,CE80,EE80..DX,SPD,XL198401-198704

8401

9009300416

main90093-00416

9009900153

main90099-00153

9009900909

main90099-00909

9009900910

main90099-00910

9009900929

main90099-00929

9018305094

main90183-05094

9018305103

main90183-05103

9356755016

main93567-55016

9411540400

main94115-40400

9451100400

main94511-00400

27 parts on this diagram · 7 diagrams in section
