Toyota SPRINTER — MAT & CARPET

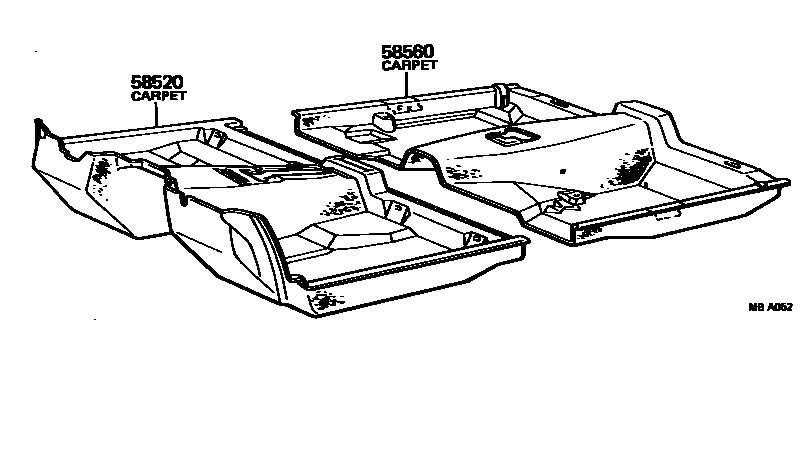

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-12510-01i197903-198108
W/HEATER DUCT,BLACK,BLACK,TRIM2#
main58510-12510-04i197903-198108
W/HEATEA DUCT,BLUE,BLUE,TRIM8#
main58510-12510-05i197903-198008
W/HEATER DUCT,BEIGE,BEIGE,TRIM4#
main58510-12510-06i198008-198108
W/HEATER DUCT,L-BROWN,BROWN,TRIM4#
main58510-12511-01i198108-198207
W/HEATER DUCT,BLACK,BLACK,TRIM2#
main58510-12511-04i198108-198304
W/HEATER DUCT,BLUE,BLUE,TRIM8#
main58510-12511-06i198108-198304
W/HEATER DUCT,L-BROWN,BROWN,TRIM4#
main58510-12511-11i198207-198304
W/HEATER DUCT,BLACK,BLACK,TRIM2#
main58510-12530-01i197903-198108
BLACK,BLACK,TRIM2#
main58510-12530-04i197903-198108
BLUE,BLUE,TRIM8#
main58510-12530-05i197903-198008
BEIGE,BEIGE,TRIM4#
main58510-12530-06i198008-198108
L-BROWN,BROWN,TRIM4#
main58510-12531-01i198108-198207
BLACK,BLACK,TRIM2#
main58510-12531-04i198108-198304
W/FOOT REST,BLUE,BLUE,TRIM8#
main58510-12531-06i198108-198304
W/FOOT REST,L-BROWN,BROWN,TRIM8#
main58510-12531-11i198207-198304
BLACK,BLACK,TRIM2#
main58510-12540-01i197903-198108
W/HEATER DUCT,BLACK,BLACK,TRIM2#
main58510-12540-04i197903-198108
W/HEATER DUCT,BLUE,BLUE,TRIM8#
main58510-12540-05i197903-198008
W/HEATER DUCT,BEIGE,BEIGE,TRIM4#
main58510-12540-06i198008-198108
W/HEATER DUCT,L-BROWN,BROWN,TRIM4#
main58510-12541-01i198108-198207
W/HEATER DUCT,BLACK,BLACK,TRIM2#
main58510-12541-04i198108-198304
W/HEATER DUCT,BLUE,BLUE,TRIM8#
main58510-12541-06i198108-198304
W/HEATER DUCT,L-BROWN,BROWN,TRIM4#
main58510-12541-11i198207-198304
W/HEATER DUCT,BLACK,BLACK,TRIM2#
main58510-12570-03i197903-198108
GRAY,GRAY,TRIM2#
main58510-12570-04i197903-198108
BLUE,BLUE,TRIM8#
main58510-12570-05i197903-198008
BEIGE,BEIGE,TRIM4#
main58510-12570-06i198008-198108
L-BROWN,BROWN,TRIM4#
main58510-12571-02i198108-198304
LISSE,TERRA COTTA,RED/MAROON,TRIM3#
main58510-12571-03i198108-198304
GRAY,GRAY,TRIM2#
main58510-12571-04i198108-198304
BLUE,BLUE,TRIM8#
main58510-12571-06i198108-198304
L-BROWN,BROWN,TRIM4#
main58510-12580-03i197903-198108
W/HEATER DUCT,GRAY,GRAY,TRIM2#
main58510-12580-04i197903-198108
W/HEATER DUCT,BLUE,BLUE,TRIM8#
main58510-12580-05i197903-198008
W/HEATER DUCT,BEIGE,BEIGE,TRIM4#
main58510-12580-06i198008-198108
W/HEATER DUCT,L-BROWN,BROWN,TRIM4#
main58510-12581-02i198108-198304
LISSE,W/HEATERDUCT,TERRA COTTA,RED/MAROON,TRIM3#
main58510-12581-03i198108-198304
W/HEATER DUCT,GRAY,GRAY,TRIM2#
main58510-12581-04i198108-198304
APEX,W/HEATER DUCT,BLUE,BLUE,TRIM8#
main58510-12581-06i198108-198304
W/HEATER DUCT,L-BROWN,BROWN,TRIM4#
main58510-12590-01i197903-198108
BLACK,BLACK,TRIM2#
main58510-12590-04i197903-198108
BLUE,BLUE,TRIM8#
main58510-12590-05i197903-198008
BEIGE,BEIGE,TRIM4#
main58510-12590-06i198008-198108
L-BROWN,BROWN,TRIM4#
main58510-12591-01i198108-198207
BLACK,BLACK,TRIM2#
main58510-12591-04i198108-198304
BLUE,BLUE,TRIM8#
main58510-12591-06i198108-198304
L-BROWN,BROWN,TRIM4#
main58510-12591-11i198207-198304
BLACK,BLACK,TRIM2#
58560CARPET ASSY, FLOOR, REAR
main58540-12410-01i197903-198207
BLACK,BLACK,TRIM2#
main58540-12410-04i197903-198304
BLUE,BLUE,TRIM8#
main58540-12410-05i197903-198008
BEIGE,BEIGE,TRIM4#
main58540-12410-06i198008-198304
L-BROWN,BROWN,TRIM4#
main58540-12410-11i198207-198304
BLACK,BLACK,TRIM2#
main58540-12420-03i197903-198108
GRAY,GRAY,TRIM2#
main58540-12420-04i197903-198108
BLUE,BLUE,TRIM8#
main58540-12420-05i197903-198008
BEIGE,BEIGE,TRIM4#
main58540-12420-06i198008-198108
L-BROWN,BROWN,TRIM4#
main58540-12421-02i198108-198304
LISSE,TERRA COTTA,RED/MAROON,TRIM3#
main58540-12421-03i198108-198304
GRAY,GRAY,TRIM2#
main58540-12421-04i198108-198304
BLUE,BLUE,TRIM8#
main58540-12421-06i198108-198304
L-BROWN,BROWN,TRIM4#

2 parts on this diagram · 2 diagrams in section
