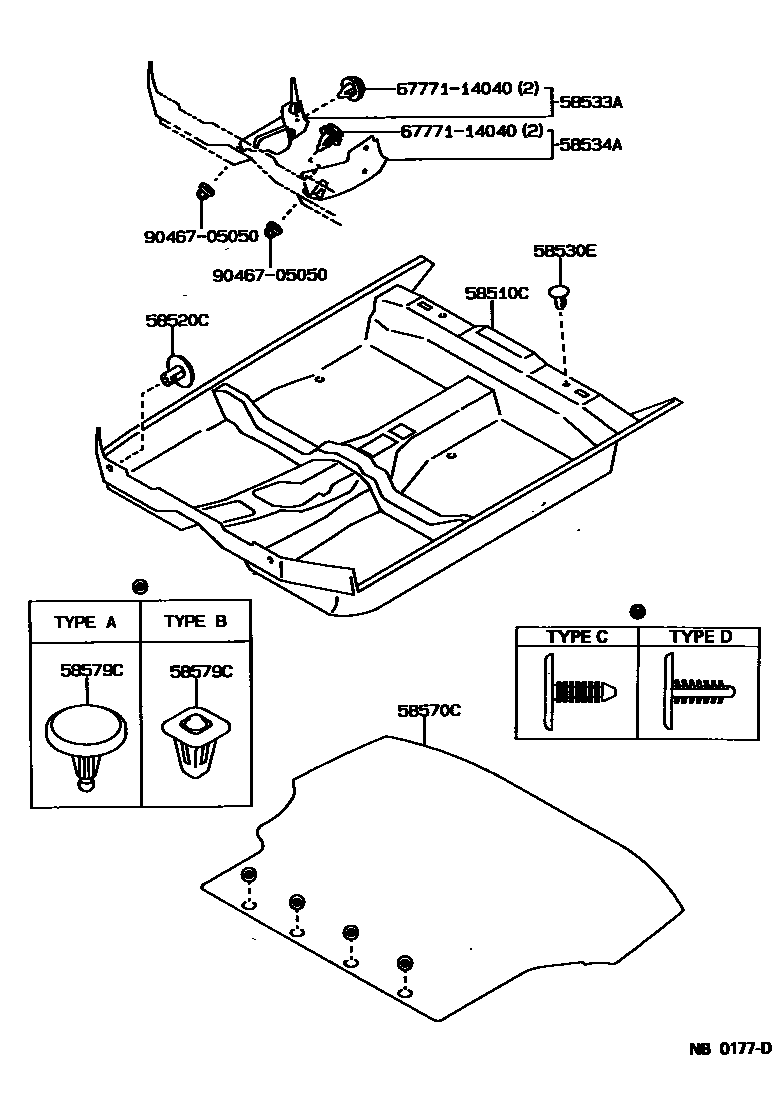

Toyota SPRINTER — MAT & CARPET

0001 1 0002 1 0003 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-13300-03iCE96,EE96,98..DX,XL198808-199108

SHADOW GRAY,TRIM1#

sub58510-13230

main58510-13300-04iCE96,EE96,98..DX,XL198908-199108

DARK BLUE,TRIM8#

sub58510-13230

main58510-13300-05iCE96,EE96,98..DX,XL198808-198908

DARK BEIGE,TRIM4#

sub58510-13230

main58510-13330-03iCE96,EE96,98..DX,XL198808-199108

main58510-13330-04iCE96,EE96,98..DX,XL198908-199108

main58510-13330-05iCE96,EE96,98..DX,XL198808-198908

main58510-1A210-02iAE91,CE90,EE90..MX198705-199106

MAROON,TRIM3#

sub58510-1A510

main58510-1A210-03iAE91,CE90,EE90..DX,L,LX,MX198705-199106

SHADOW GRAY,TRIM1#

sub58510-1A510

main58510-1A210-04iAE91,CE90,EE90..DX,L,LX,MX198905-199106

DARK BLUE,TRIM8#

sub58510-1A510

main58510-1A210-05iAE91,CE90,EE90..L,LX,MX198705-198905

DARK BEIGE,TRIM4#

sub58510-1A510

main58510-1A220-02iAE91,CE90..SE198705-198905

MAROON,TRIM3#

main58510-1A220-03iAE91,92,CE90..G,GT,SE,XI198705-198905

SHADOW GRAY,TRIM1#

main58510-1A220-05iAE91,CE90..G,SE,XI198705-198905

DARK BEIGE,TRIM4#

main58510-1A221-02iAE91,CE90..SE198905-199106

MAROON,TRIM3#

sub58510-1A260

main58510-1A221-03iAE91,92,CE90..G,GT,SE,XS198905-199106

SHADOW GRAY,TRIM1#

sub58510-1A260

main58510-1A221-04iAE91,CE90..G,SE,XS198905-199106

DARK BLUE,TRIM8#

sub58510-1A260

main58510-1A230-02iAE91,CE90,EE90..MX198705-199106

main58510-1A230-03iAE91,CE90,EE90..DX,L,LX,MX198705-199106

main58510-1A230-04iAE91,CE90,EE90..DX,L,LX,MX198905-199106

main58510-1A230-05iAE91,CE90,EE90..L,LX,MX198705-198905

main58510-1A240-02iAE91,CE90..SE198705-198905

main58510-1A240-03iAE91,92,CE90..G,GT,SE,XI198705-198905

main58510-1A240-05iAE91,CE90..G,SE,XI198705-198905

main58510-1A241-02iAE91,CE90..SE198905-199106

main58510-1A241-03iAE91,92,CE90..G,GT,SE,XS198905-199106

main58510-1A241-04iAE91,CE90..G,SE,XS198905-199106

main58510-1A570-02iAE95,CE95..MX198710-199106

MAROON,TRIM3#

sub58510-1A520

main58510-1A570-03iAE95,CE95..AV1,LX,MX,RVS198710-199106

SHADOW GRAY,TRIM1#

sub58510-1A520

main58510-1A570-04iAE95..LX,MX198905-198908

DARK BLUE,TRIM8#

sub58510-1A520

main58510-1A570-05iAE95..AV1,RVS;AE95..(LX,MX)..CBR198710-198908

DARK BEIGE,TRIM4#

sub58510-1A520

main58510-1A580-02iAE95..SE198710-198905

MAROON,TRIM3#

main58510-1A580-03iAE95..AV2;AE95..SE..CBR198710-198908

SHADOW GRAY,TRIM1#

main58510-1A580-05iAE95..SE198710-198905

DARK BEIGE,TRIM4#

main58510-1A581-02iAE95,CE95..SE198908-199106

MAROON,TRIM3#

sub58510-1A530

main58510-1A581-03iAE95..SE198905-198908

SHADOW GRAY,TRIM1#

sub58510-1A530

main58510-1A581-04iAE95..SE198905-198908

DARK BLUE,TRIM8#

sub58510-1A530

main58510-1A590-02iAE95,CE95..MX198710-199106

main58510-1A590-03iAE95,CE95..AV1,LX,MX,RVS198710-199106

main58510-1A590-04iAE95,CE95..AV1,LX,MX,RVS198908-199106

main58510-1A590-05iAE95..AV1,RVS;AE95..(LX,MX)..CBR198710-198908

main58510-1A600-02iAE95..SE198710-198905

main58510-1A600-03iAE95..AV2;AE95..SE..CBR198710-198908

main58510-1A600-05iAE95..SE198710-198905

main58510-1A601-02iAE95,CE95..SE198908-199106

main58510-1A601-03iAE95,CE95..AV2,SE198908-199106

main58510-1A601-04iAE95,CE95..AV2,SE198908-199106

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-01×2iAE91,CE90,EE90..G,L,LX,XI198705-198802

BLACK,TRIM1#

main90467-09068-03×2iCE96,EE96,98..DX,XL198808-198908

SHADOW GRAY,TRIM1#

main90467-09068-05×2iCE96,EE96,98..DX,XL198808-198809

DARK BEIGE,TRIM4#

main90467-09068-11×2iAE91,95,CE9#,EE9#..AV1,AV2,DX,G,L,LX,RVS,XL,XS198908-199108

BLACK,TRIM1#,8#

main90467-09068-E0×2iCE96,EE96,98..DX,XL198809-198908

DARK BEIGE,TRIM4#

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-06049-01×2iAE92,95..AV2,GT198905-198908

BLACK,TRIM1#

main90467-06049-03×2iAE9#,CE90,EE90198705-198905

GRAY,TRIM1#

main90467-06049-12×2iAE91,95,CE90,EE90..MX,SE198705-198809

MAROON,TRIM3#

main90467-06049-15×2iAE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198809

DARK BEIGE,TRIM4#

main90467-06049-B0×2iAE9#,CE90,95,EE90198908-199106

SHADOW GRAY,TRIM1#

main90467-06049-D0×2iAE91,95,CE90,95,EE90..MX,SE198908-199106

MAROON,TRIM3#

main90467-06049-E0×3iCE96,EE96,98..DX,XL198809-198908

DARK BEIGE,TRIM4#

main90467-06049-J1×2iAE91,95,CE90,EE90..4D,5D198905-198908

DARK BLUE,TRIM8#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-12020iAE91,92,CE90,96,EE9#198705-199108

main58533-12030iAE95,CE95198710-199106

58534AMAT, TRANSMISSION COVER

main58534-12010iAE9#,CE9#,EE9#198705-199108

58570CCARPET ASSY, REAR FLOOR

main58570-12350-03iAE95..AV1,RVS198908-199009

SHADOW GRAY,TRIM1#

sub58570-12360

main58570-12350-04iAE95..AV1,RVS198908-199009

DARK BLUE,TRIM8#

sub58570-12360

main58570-12350-05iAE95..AV1,RVS198802-198908

DARL BEIGE,TRIM4#

sub58570-12360

main58570-12380-03iAE95..AV2198802-199009

SHADOW GRAY,TRIM1#

sub58570-12390

main58570-12380-04iAE95..AV2198908-199009

DARK BLUE,TRIM8#

sub58570-12390

main58570-13141-03iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

main58570-13141-04iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

main58570-13141-05iEE98..(3FC,5F)..XL198808-198908

main58571-12060-03iAE91..L198908-199106

SHADOW GRAY,TRIM1#

main58571-12060-04iAE91..L198908-199106

DARK BLUE,TRIM8#

main58571-12060-05iAE91..L198705-198905

DARK BEIGE,TRIM4#

main58571-12070-03iAE91,92..5D..(G,GT,XI,XS)198705-199106

SHADOW GRAY,TRIM1#

main58571-12070-04iAE91..G,XS198905-199106

DARK BLUE,TRIM8#

58579CCLIP, REAR FLOOR CARPET SET

main90467-06037-13×5iAE95..WG198802-199009

main90467-06037-24×5iAE95..WG198908-199009

main90467-06037-25×5iAE95..AV1,RVS198802-198908

main90467-07049-03×9iEE98..(3FC,5F)..XL198808-198908

main90467-07049-15×5iAE95..AV1,RVS198802-198908

main90467-07049-J0×5iAE95..WG198908-199009

main90467-07079-03×4iAE9#..5D198705-198708

main90467-07079-05×4iAE91..5D198705-198708

main90467-07084-03×4iAE91,92..5D198908-199106

main90467-07084-04×4iAE91..5D198908-199106

main90467-07084-05×4iAE91..5D198708-198905

main90467-10023×4iAE91,92..5D198705-199106

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040

9046705050

main90467-05050

9 parts on this diagram · 3 diagrams in section
