Toyota SPRINTER — MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

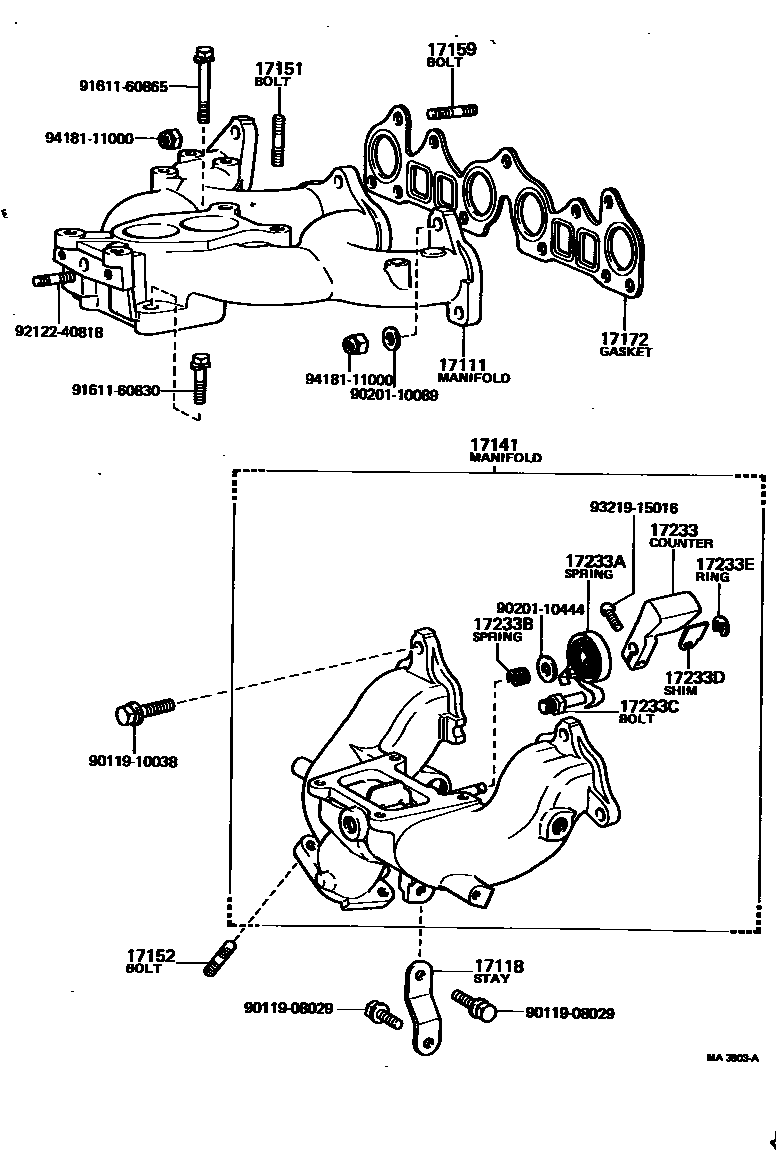

17111MANIFOLD, INTAKE

main17111-15020i3AU..AE70197903-198108

main17111-15021i3AU..AE70198108-198304

main17111-26901i13TU..TE70197908-198108

main17111-64010i1C..CE70198202-198304

main17111-88262i2TGEU..TE71197903-198108

main17111-88265i2TGEU..TE71198108-198304

17118STAY, MANIFOLD

main17118-15020i3AU..AE70197903-198108

main17118-15030i3AU..AE70198108-198304

main17118-64010i1C..CE70198202-198304

17141MANIFOLD, EXHAUST

main17140-15020i3AU..AE70197903-198108

main17141-15060i3AU..AE70198108-198304

main17141-26080i2TGEU..TE71197903-198304

sub17141-28010

main17141-27011i13TU..TE70197908-198108

main17141-64010i1C..CE70198202-198304

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08010×4i4KU..KE70197903-198304

L=39,S=13&13

main90116-08023×4i13TU..TE70197908-198108

main90116-08201×2i2TGEU..TE71197903-198304

L=37.4,S=13.7&13.7

main92112-40832×4i3AU..AE70197903-198304

L=42,S=16&10

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017×3i4KU..KE70198008-198107

L=41,S=14&21

main90116-10056×3i13TU..TE70198008-198108

L=44,S=14&21

sub90116-10087

main90116-10058×2i1C..CE70198110-198304

L=46.5,S=14&20

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08035×4i13TU..TE70197908-198108

INTAKE MANIFOLD

main90116-08201×3i2TGEU..TE71197903-198304

INTAKE MANIFOLD

main92112-61032×2i3AU..AE70198110-198304

L=44,S=12&20

main92112-61035×2i3AU..AE70197905-198110

L=47,S=12&20

main92122-41028×2i4KU..KE70197903-198304

L=43,S=15&15

main92122-60820×2i1C..CE70198202-198304

INTAKE MANIFOLD

main92122-61025×5i13TU,2TGEU..TE7#197903-198304

EXHAUST MANIFOLD

main92122-61032×2i1C..CE70198202-198304

EXHAUST MANIFOLD

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-13020×2i4KU..KE70198108-198304

sub17172-13021

main17172-15010i3AU..AE70197903-198304

sub17172-14011

main17172-24011×2i4KU..KE70197903-198108

17233COUNTER WEIGHT

main17233-15010i3AU..AE70197903-198108

17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)

main90510-06001i3AU..AE70197903-198002

main90510-06002i3AU..AE70198002-198108

17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)

main90501-08022i3AU..AE70197903-198108

17233CBOLT(FOR COUNTER WEIGHT)

main90109-10045i3AU..AE70197903-198108

17233DSHIM(FOR COUNTER WEIGHT)

main90910-10005i3AU..AE70197903-198108

17233ERING, E(FOR COUNTER WEIGHT)

main96160-00800i3AU..AE70197903-198108

9011908029

main90119-08029

9011910038

main90119-10038

9020110089

main90201-10089

9020110444

main90201-10444

9161160830

main91611-60830

9161160865

main91611-60865

9212240818

main92122-40818

9321915016

main93219-15016

9418111000

main94181-11000

22 parts on this diagram · 7 diagrams in section
