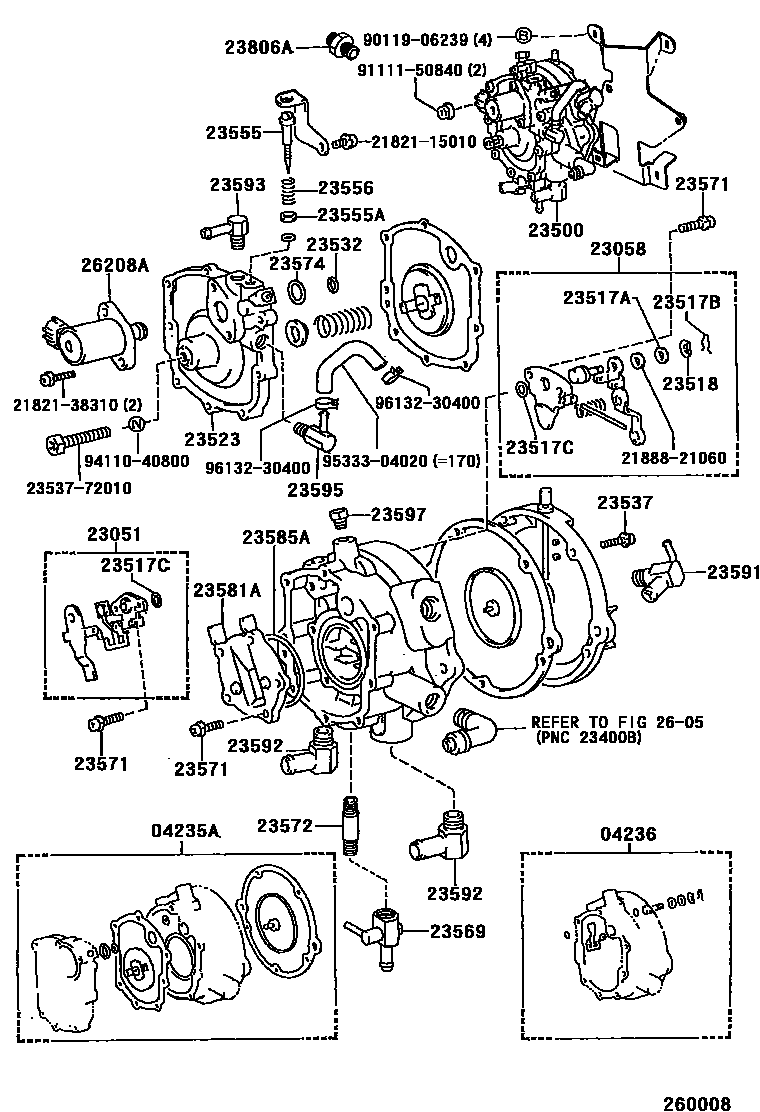

Toyota SPRINTER — LPG OR CNG REGULATOR
04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
04236VALVE KIT, LPG REGULATOR
23051VALVE SUB-ASSY, 1ST
23058VALVE SUB-ASSY, 2ND
23500REGULATOR ASSY, LPG(CNG)
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)
23517CGASKET(FOR ELASTIC FACE VALVE)
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23523COVER, 1ST REGULATOR
23532RING, O, NO.2(FOR BULB)
23537SCREW(FOR 2ND REGULATOR COVER SET)
23555SCREW, IDLE ADJUST
23555AWASHER, IDLE ADJUST SCREW
23556SPRING, IDLE ADJUST SCREW
23569COCK, DRAIN
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23572PIPE, DRAIN
23574RING, O, NO.1(FOR BULB)
23581ACOVER, UPPER PREHEATER
23585ARING, O(FOR PREHEATER)
23591UNION, NO.1, FUEL
23592UNION, NO.2, FUEL HOSE
23593UNION, NO.3
23595UNION, NO.5
23597PLUG, LPG REGULATOR BODY
23806AUNION(FOR LPG REGULATOR)
2605LPG FILTER
26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188821060WASHER(FOR POSITIONER VALVE SET)
main21888-21060
2353772010SCREW(FOR 2ND REGULATOR COVER SET)
main23537-72010
9011906239
main90119-06239
9111150840
main91111-50840
9411040800
main94110-40800
9533304020
main95333-04020
9613230400
main96132-30400
38 parts on this diagram · 1 diagram in section
LPG OR CNG REGULATOR for Toyota SPRINTER
This section contains 38 genuine Toyota parts for the LPG OR CNG REGULATOR system of the Toyota SPRINTER. Key components include: DIAPHRAGM KIT, LPG REGULATOR, W/O VALVE, VALVE KIT, LPG REGULATOR, VALVE SUB-ASSY, 1ST, VALVE SUB-ASSY, 2ND, REGULATOR ASSY, LPG(CNG).
