Toyota SPRINTER — LPG CARBURETOR
23260TINJECTOR ASSY, LPG
26200CARBURETOR ASSY, LPG
26206SSPRING, IDLE ADJUST SCREW(FOR LPG)
26213SCREW, ADJUST
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26216VALVE, POWER
26218BOOT(FOR POWER VALVE)
26239SPRING
26246JET
26251HORN, AIR
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2184224230SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-24230
2184424230SCREW, CHOKE LEVER
main21844-24230
2188538310
main21885-38310
2190870010ACTUATOR SUB-ASSY, IDLE-UP
main21908-70010
2359244050UNION, NO.2, FUEL HOSE
main23592-44050
2623610010GASKET, AIR HORN
main26236-10010
2623972010SPRING
main26239-72010
2624444060COLLAR(FOR LPG CARBURETOR)
main26244-44060
9161160616
main91611-60616
9165140614
main91651-40614
9321914008
main93219-14008
9461110300
main94611-10300

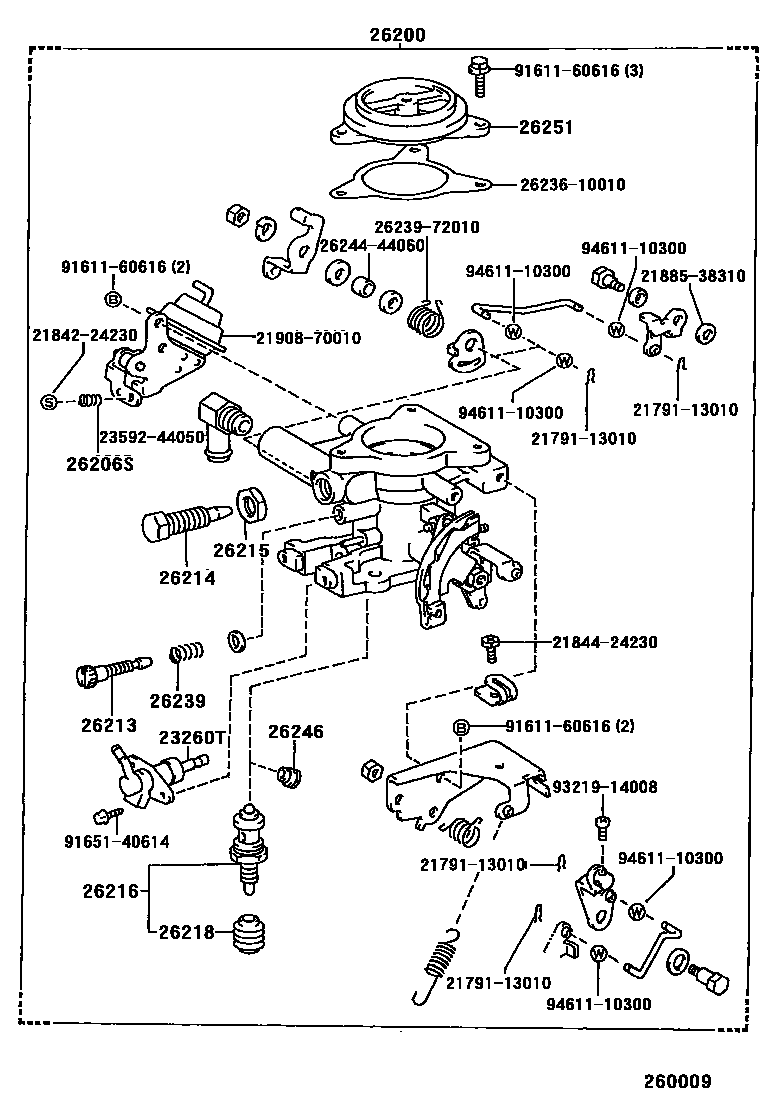

24 parts on this diagram · 1 diagram in section
LPG CARBURETOR for Toyota SPRINTER
This section contains 24 genuine Toyota parts for the LPG CARBURETOR system of the Toyota SPRINTER. Key components include: INJECTOR ASSY, LPG, CARBURETOR ASSY, LPG, SPRING, IDLE ADJUST SCREW(FOR LPG), SCREW, ADJUST, SCREW, POWER ADJUST.
