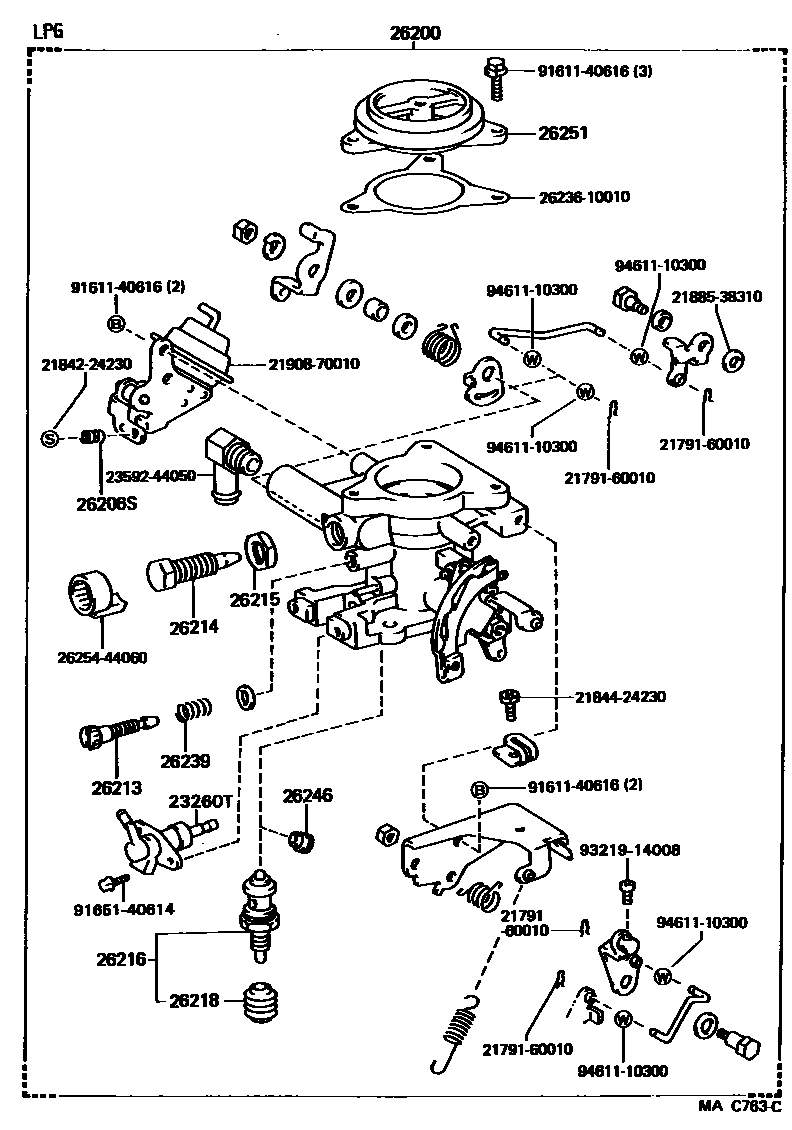

Toyota SPRINTER — LPG CARBURETOR
23260TINJECTOR ASSY, LPG
26200CARBURETOR ASSY, LPG
26206SSPRING, IDLE ADJUST SCREW(FOR LPG)
26213SCREW, ADJUST
sub26214-10010
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26216VALVE, POWER
26218BOOT(FOR POWER VALVE)
26239SPRING
26246JET
26251HORN, AIR
2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-60010
2184224230SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-24230
2184424230SCREW, CHOKE LEVER
main21844-24230
2188538310
main21885-38310
2190870010ACTUATOR SUB-ASSY, IDLE-UP
main21908-70010
2359244050UNION, NO.2, FUEL HOSE
main23592-44050
2623610010GASKET, AIR HORN
main26236-10010
2625444060CAP, POWER SCREW LIMIT
main26254-44060
9161140616
main91611-40616
9165140614
main91651-40614
9321914008
main93219-14008
9461110300
main94611-10300
23 parts on this diagram · 1 diagram in section
