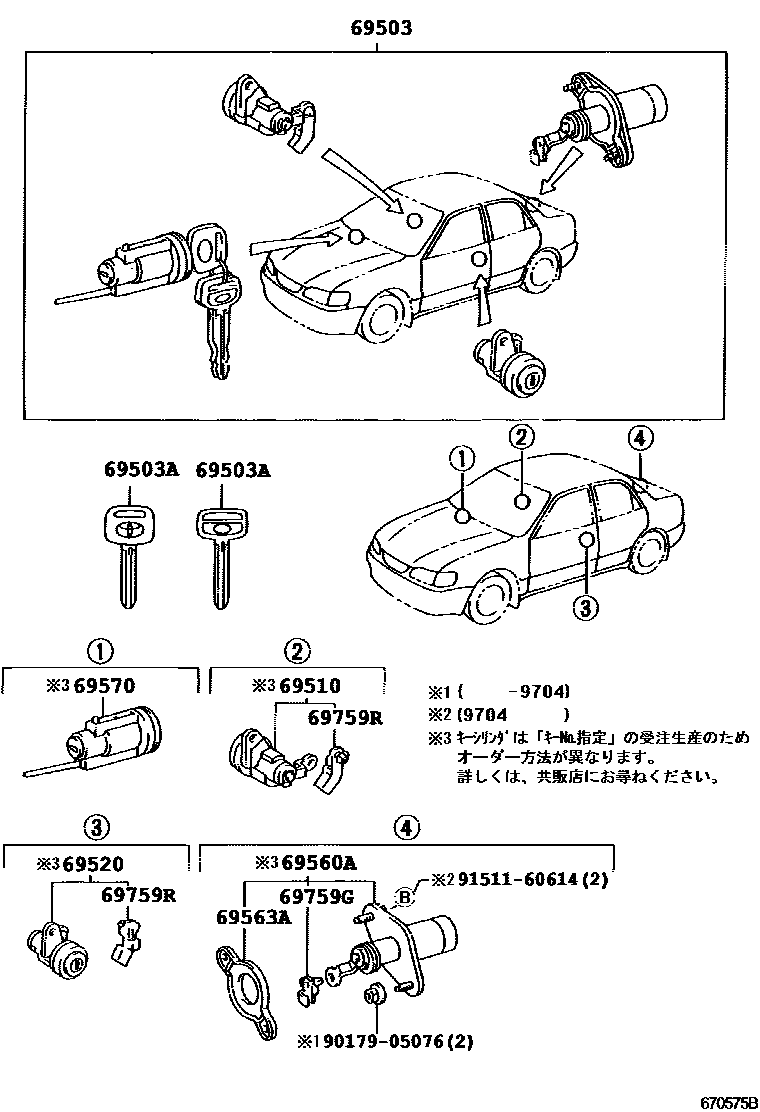

Toyota SPRINTER — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-1A480iAE110,114,CE11#,EE111..LX,XEVIN199605-199704

main69005-1E070iAE11#,CE11#..SCRU,SEVIN199605-199704

main69005-1E250iAE110,114,CE11#,EE111..LX,XEVIN199804-200008

main69005-1E300iAE110,114,CE11#,EE111..LX,XEVIN199704-199804

main69005-1E310iAE11#,CE11#..GT,SEVIN199704-199804

main69005-1E350iAE11#,CE11#..GT,SEVIN199804-200008

69503AKEY, BLANK

main90999-00185iAE11#,CE11#,EE111199505-199704

main90999-00186×2iAE11#,CE11#,EE111199704-200008

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-12250iAE11#,CE11#,EE111199505-199704

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-12250iAE11#,CE11#,EE111199704-200008

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-12550iAE11#,CE11#,EE111199505-199704

main69560-12680iAE11#,CE11#,EE111199704-200008

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-12100iAE11#,CE11#,EE111199505-199704

main69563-12140iAE11#,CE11#,EE111199704-200008

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12150iAE11#,CE11#,EE111199505-199605

main69570-12200iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

sub69570-12170

main69570-12210iAE11#,CE11#..GT,SEVIN199704-200008

sub69570-12220

main69570-20220iAE11#,CE11#..SCRU,SEVIN199605-199704

sub69570-12220

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090iAE11#,CE11#,EE111199505-199704

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAE11#,CE11#,EE111199505-199704

main69759-12090iAE11#,CE11#,EE111199704-200008

9017905076

main90179-05076

9151160614

main91511-60614

11 parts on this diagram · 1 diagram in section
