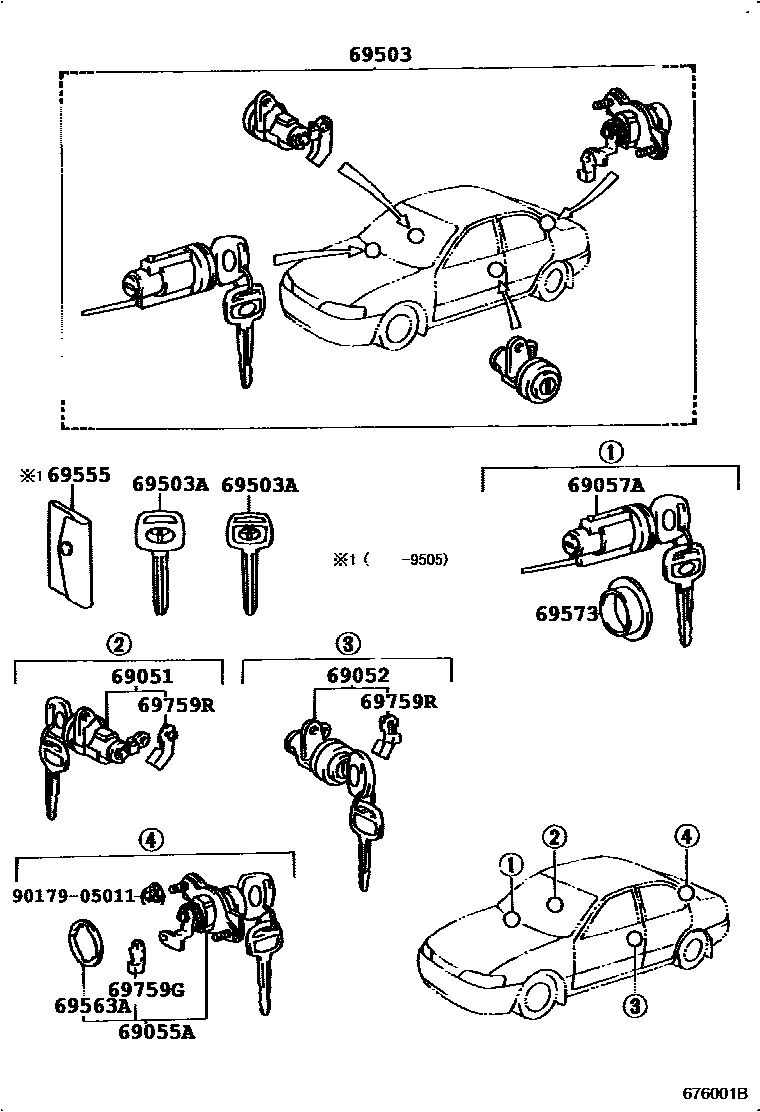

Toyota SPRINTER — LOCK CYLINDER SET

0001 1 0002 1��(����� ��� ���) 0003 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12320iAE10#,CE100,104,EE101199106-199505

sub69051-12360

main69051-13130iAE109,CE106,108,109,EE102,103,104,106,107,108199109-199804

main69051-13200iAE109,CE10#,EE10#199804

sub69051-12360

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12320iAE10#,CE100,104,EE101199106-199505

sub69052-12360

main69052-13130iAE109,CE106,108,109,EE102,103,104,106,107,108199109-199804

main69052-13190iAE109,CE10#,EE10#199804

sub69052-12340

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-12640iAE10#,CE100,104,EE101199106-199505

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12180iAE10#,CE100,104,EE101199106-199505

sub69057-12220

main69057-13100iCE106,EE106..CTD199109-199302

main69057-13110iCE106,108,109,EE106,107,108..DX,L,XL199109-199302

main69057-13190iCE107,EE102..DXJ199804

main69057-13200iAE109,CE10#,EE10#..DX,L,XL199804

69503CYLINDER SET, LOCK

main69005-13210iCE106,EE102,106..CTD,DXJ199109-199804

main69005-13220iAE109,CE106,108,109,EE102,103,104,106,107,108..DX,L,XL199109-199804

main69005-13470iCE107,EE102..DXJ199804

main69005-13480iAE109,CE10#,EE10#..DX,L,XL199804

main69005-1A330iAE10#,CE100,104,EE101..DX,GT,LX,SEL,XE199106-199505

69503AKEY, BLANK

main90999-00185iAE10#,CE100,104,EE101..DX,GT,LX,SEL,XE199106-199505

main90999-00186×2iAE10#,CE100,104,EE101199106-199505

main90999-00192×2iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main90999-00193iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

69555COVER, KEY

main69555-17020iAE10#,CE100,104,EE101199209-199210

main69555-20030iAE10#,CE100,104,EE101199205-199209

main69555-95J00iCE106,108,109,EE106,107,108199205-199210

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-12070iAE10#,CE100,104,EE101199106-199505

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010iAE10#,CE10#,EE10#199106

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090iAE10#,CE100,104,EE101199106-199505

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAE10#,CE10#,EE10#199106

main69759-12090iAE10#,CE10#,EE10#199106

9017905011

main90179-05011

12 parts on this diagram · 3 diagrams in section
