Toyota SPRINTER — INTERIOR LAMP

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81205-12040iAE70,KE70,TE7#197903-197910

main81205-12041iAE70,CE70,KE70,TE7#197910-198304

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iAE70,CE70,KE70,TE7#197903-198304

81240LAMP ASSY, ROOM, NO.1

main81240-16010-08iAE70,CE70,KE70,TE7#197903-198208

IVORY,IVORY,TRIM2#,4#,8#

sub81240-22060

main81240-16010-18iAE70,CE70,KE70,TE71198208-198304

IVORY,IVORY,TRIM2#,4#,8#

sub81240-22060

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAE70,CE70,KE70,TE7#197903-198304

81241LENS, ROOM LAMP, NO.1

main81241-16010iAE70,CE70,KE70,TE7#197903-198304

sub81241-20060

81250LAMP ASSY, ROOM, NO.2

main81250-12020-01iAE70,KE70,TE7#..CP,LB197903-198304

BLACK,BLACK,TRIM2#

main81250-12020-04iAE70,KE70,TE7#..CP,LB197903-198304

BLUE,BLUE,TRIM8#

main81250-12020-06iAE70,KE70,TE7#..CP,LB197903-198304

DARK BROWN,BROWN,TRIM4#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE70,KE70,TE7#..CP,LB197903-198304

81251LENS, ROOM LAMP, NO.2

main81231-30010iAE70,KE70,TE7#..CP,LB197903-198304

8125914010

main81259-14010

9354014514

main93540-14514

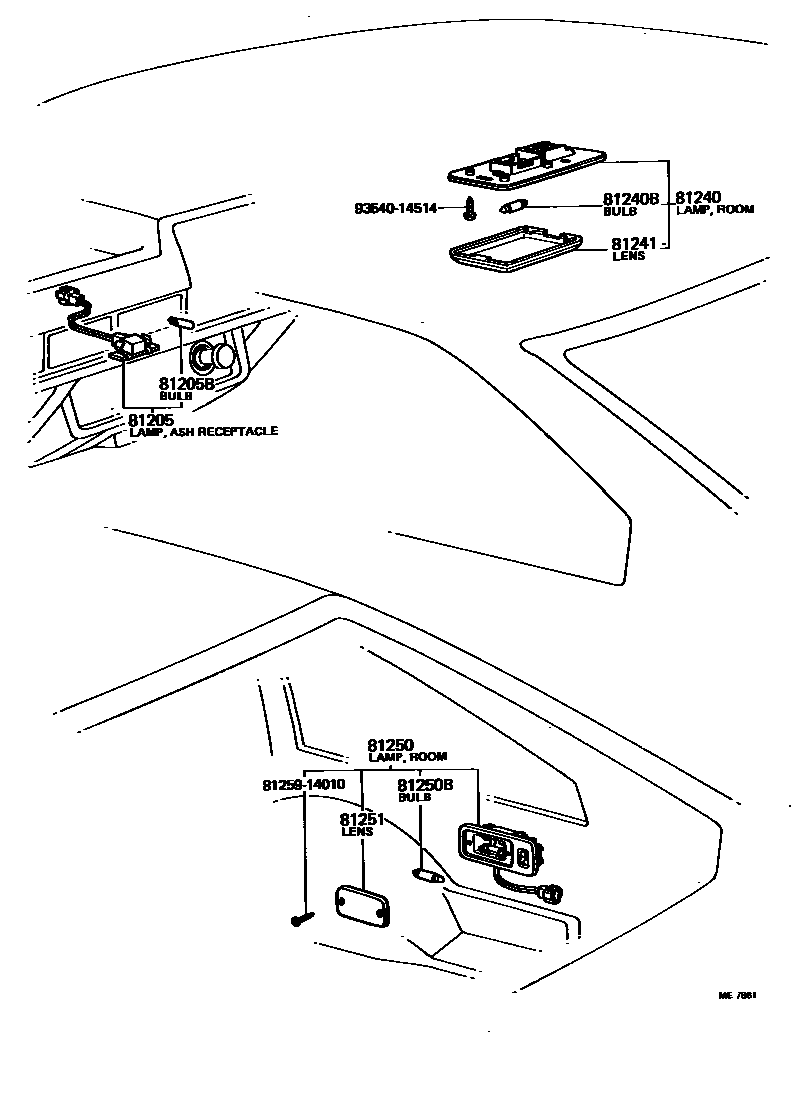

10 parts on this diagram · 1 diagram in section
