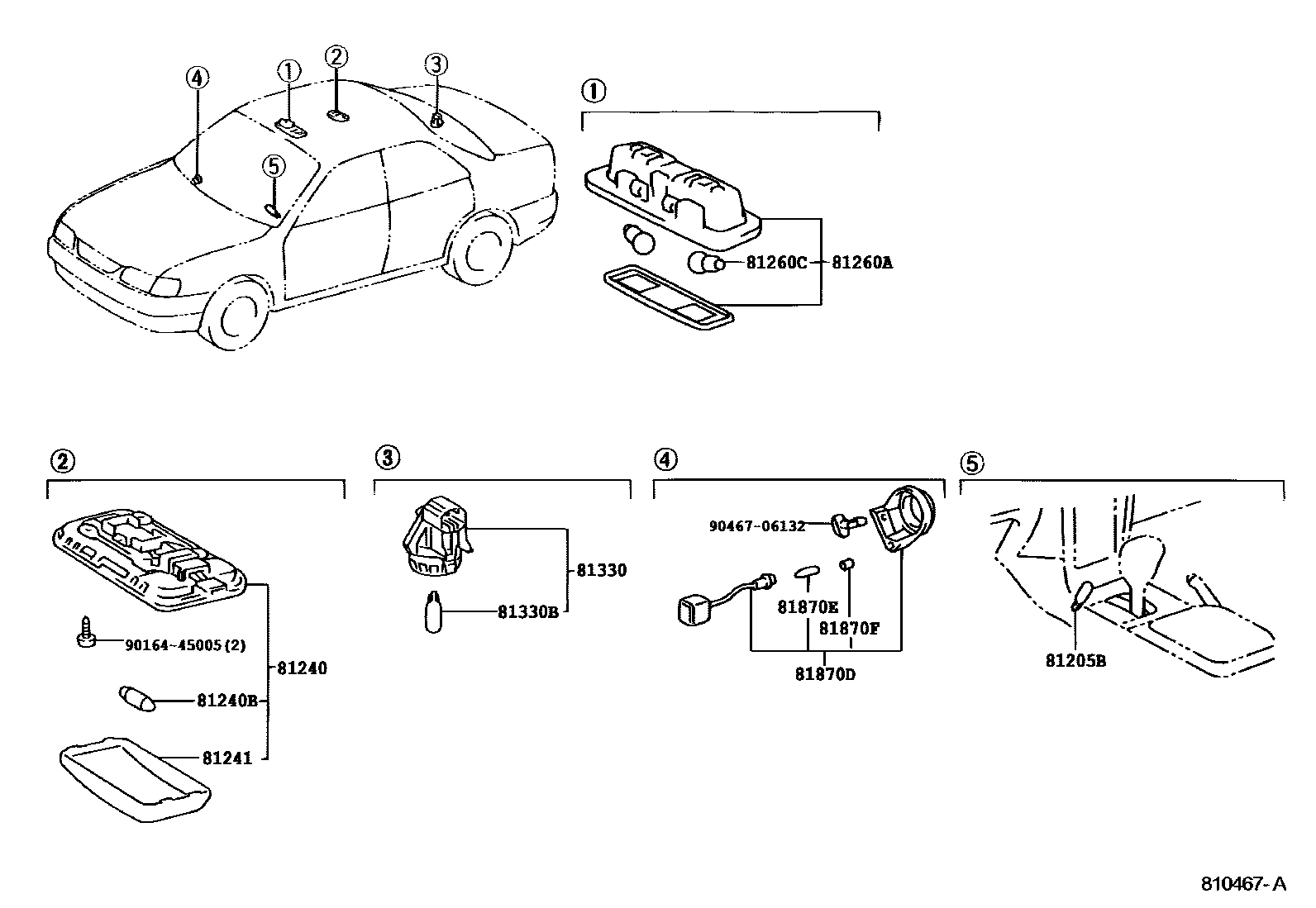

Toyota SPRINTER — INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iAE11#,CE11#,EE111199505-199704

81240LAMP ASSY, ROOM, NO.1

main81240-12060-A1iAE110,114,CE11#,EE111..SEVIN,XEVIN199511-199704

IVORY,TRIM4#

main81240-12060-B3iAE110,114,CE11#,EE111199704-199804

LT.GRAY,TRIM1#

main81240-12060-B4iAE111199704-200008

MD.GRAY,TRIM1#

main81240-12060-B6iAE11#,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main81240-12080-A0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199511

IVORY,TRIM4#

main81240-12080-B0iAE11#,CE11#,EE111199505-199511

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAE11#,CE11#,EE111199505-199704

81241LENS, ROOM LAMP, NO.1

main81241-12020iAE11#,CE11#,EE111199505-199704

81260ALAMP ASSY, MAP

main81260-12100-B1iCE11#..SEVIN199704-199804

MD.CHARCOAL,TRIM14

main81260-12100-B3iAE110,114..SEVIN199704-199804

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2iAE11#,CE11#..GT,SEVIN199704-200008

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iAE11#,CE11#..SCRU,SEVIN199505-199704

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iAE11#,CE11#..SCRU,SEVIN199505-199704

81870DLAMP ASSY, KEY CYLINDER

main81870-32051iAE11#,CE11#..SCRU,SEVIN199605-199704

sub81870-33020

81870EBULB, KEY CYLINDER LAMP

main90981-11018iAE11#,CE11#..SCRU,SEVIN199605-199704

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iAE11#,CE11#..SCRU,SEVIN199605-199704

9016445005

main90164-45005

9046706132

main90467-06132

13 parts on this diagram · 1 diagram in section
