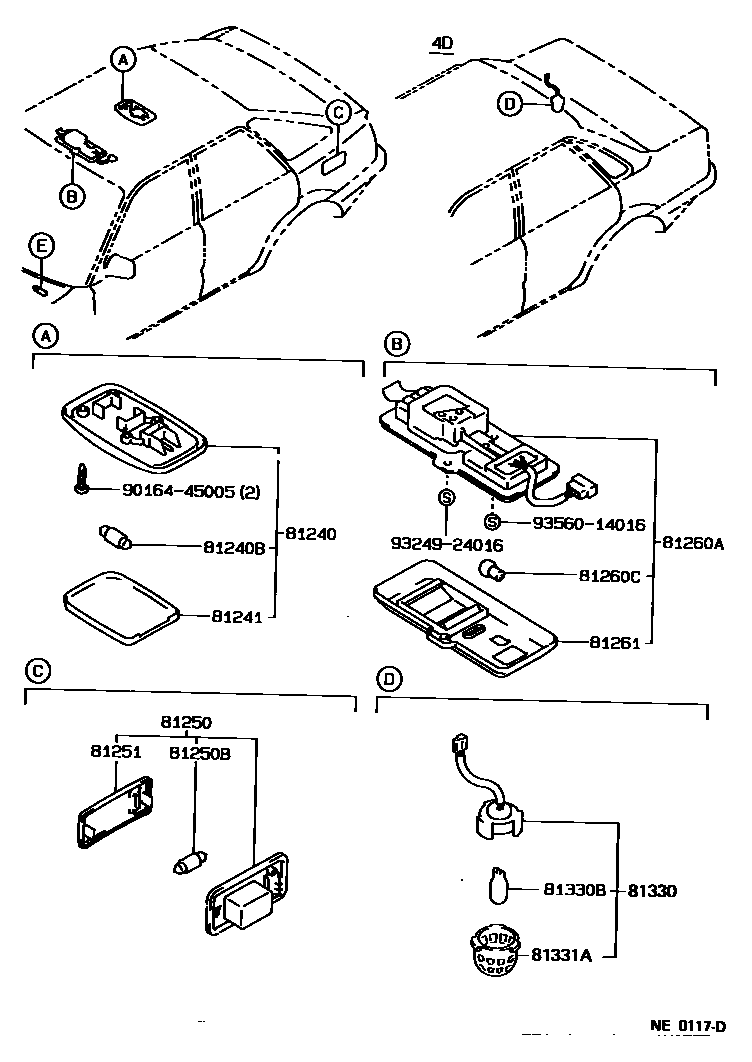

Toyota SPRINTER — INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-12020-02iAE91,95,CE90,95,EE90..MX,SE198705-199106

MAROON,TRIM3#

sub81240-12020

main81240-12020-03iAE92..4D198705-199106

LIGHT GRAY,TRIM1#

sub81240-12020

main81240-12020-03iAE91,92..5D198905-199106

LIGHT GRAY,LIGHT GRAY,TRIM1#

sub81240-12020

main81240-12020-04iAE91,95,CE90,95,EE90198908-199106

LIGHT BLUE,TRIM8#

sub81240-12020

main81240-12020-05iAE95..AV1,RVS198705-198908

LIGHT BEIGE,TRIM4#

sub81240-12020

main81240-12030-03iCE96,EE96,98198808-199106

LIGHT GRAY,TRIM1#

sub81240-12030

sub81240-22100

main81240-12030-04iCE96,EE96,98198908-199108

LIGHT BLUE,TRIM8#

sub81240-12030

sub81240-22100

main81240-12030-05iCE96,EE96,98..DX,XL198808-198908

LIGHT BEIGE,TRIM4#

sub81240-12030

sub81240-22100

main81240-12030-S3iCE96,EE9#..CTD,XL199106-199108

LIGHT GRAY,TRIM1#

sub81240-12030

sub81240-22100

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAE9#,CE9#,EE9#198705-199108

81241LENS, ROOM LAMP, NO.1

main81241-12020iAE9#,CE9#,EE9#198705-199108

81250LAMP ASSY, ROOM, NO.2

main81250-12030-03iAE9#..5D,WG198705-199106

SHADOW GRAY,TRIM1#

sub81250-12030

sub81250-95J05

main81250-12030-04iAE91,95..5D,WG198908-199106

DARK BLUE,TRIM8#

sub81250-12030

sub81250-95J05

main81250-12030-05iAE91..5D..CBR;AE91,95..AV1,RVS,XI198705-198908

DARK BEIGE,TRIM4#

sub81250-12030

sub81250-95J05

main81250-13010-03iCE96,EE96,98..XL198808-199108

LIGHT GRAY,TRIM1#

sub81250-13010

main81250-13010-04iCE96,EE96,98..DX,XL198908-199108

LIGHT BLUE,TRIM8#

sub81250-13010

main81250-13010-05iCE96,EE96,98..XL198808-198908

LIGHT BEIGE,TRIM4#

sub81250-13010

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE9#,CE96,EE96,98..(5D,V,WG)..(AV1,AV2,G,GT,L,RVS,XI,XL,XS)198705-199108

81251LENS, ROOM LAMP, NO.2

main81251-12030iAE9#..5D,WG198705-199106

main81251-14030iCE96,EE96,98..XL198808-199108

81260ALAMP ASSY, MAP

main81260-12060-03iAE95..AV2,RVS198802-199009

GRAY,TRIM1#

sub81260-12060

main81260-12060-04iAE95..AV2,RVS198908-199009

BLUE,TRIM8#

sub81260-12060

main81260-12060-05iAE95..RVS198802-198908

BEIGE,TRIM4#

sub81260-12060

main81260-16040-03iAE91,92..5D..(G,GT,XI)198705-198809

LIGHT GRAY,TRIM1#

sub81260-16040

main81260-16040-05iAE91..G,XI198705-198809

LIGHT BEIGE,TRIM4#

sub81260-16040

main81260-16040-B0iAE91,92..5D..(G,GT,XI,XS)198809-199106

LIGHT GRAY,TRIM1#

sub81260-16040

main81260-16040-E0iAE91..G,XI198809-198905

LIGHT BEIGE,TRIM4#

sub81260-16040

main81260-16040-J0iAE91..G,XS198905-199106

LIGHT BLUE,TRIM8#

sub81260-16040

81260CBULB(FOR MAP LAMP)

main90981-12014iAE9#..(5D,WG)..(AV2,G,GT,RVS,XI,XS)198705-199106

81261LENS AND COVER, MAP LAMP

main81261-12060-03iAE95..AV2,RVS198802-199009

GRAY,TRIM1#

sub81261-12060

main81261-12060-04iAE95..AV2,RVS198908-199009

BLUE,TRIM8#

sub81261-12060

main81261-12060-05iAE95..RVS198802-198908

BEIGE,TRIM4#

sub81261-12060

main81261-20061-05iAE91..G,XI198705-198809

LIGHT BEIGE,TRIM4#

sub81261-20061

main81261-20061-13iAE91,92..5D..(G,GT,XI)198705-198809

LIGHT GRAY,TRIM1#

sub81261-20061

main81261-20061-B0iAE91,92..5D..(G,GT,XI,XS)198809-199106

LIGHT GRAY,TRIM1#

sub81261-20061

main81261-20061-E0iAE91..G,XI198809-198905

LIGHT BEIGE,TRIM4#

sub81261-20061

main81261-20061-J0iAE91..G,XS198905-199106

LIGHT BLUE,TRIM8#

sub81261-20061

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22031iAE9#,CE90,95..4D..(GT,SE)198705-199106

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iAE9#,CE90,95..4D..(GT,SE)198705-199106

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iAE9#,CE90,95..4D..(GT,SE)198705-199106

9016445005

main90164-45005

9324924016

main93249-24016

9356014016

main93560-14016

15 parts on this diagram · 2 diagrams in section
