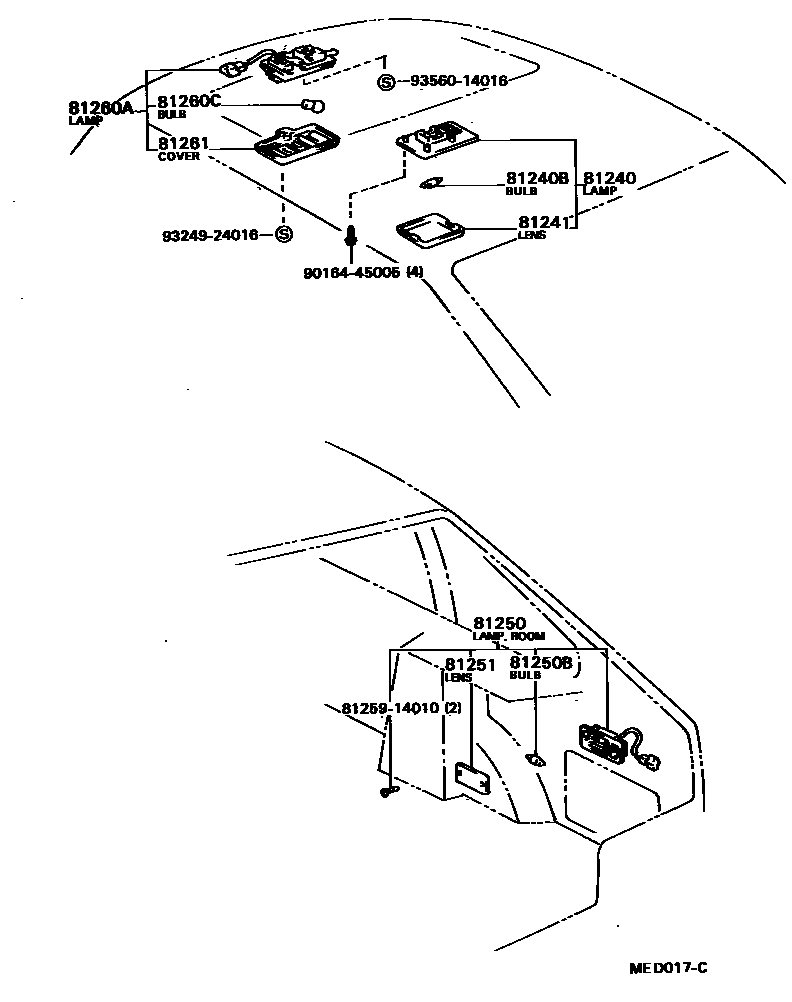

Toyota SPRINTER — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-16010-18iAE8#,CE80198305-198409

IVORY,IVORY,TRIM3#,4#

sub81240-22060

main81240-22080-08iAE8#,CE80,EE80198409-198608

IVORY,IVORY,TRIM4#

main81240-22081-08iAE82,CE80,EE80198608-198704

IVORY,IVORY,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAE8#,CE80,EE80198305-198704

81241LENS, ROOM LAMP, NO.1

main81241-16010iAE8#,CE80198305-198409

main81241-20060iAE8#,CE80,EE80198409-198704

81250LAMP ASSY, ROOM, NO.2

main81250-12020-02iAE81,82..ZX198305-198408

MAROON,RED/MAROON,TRIM3#

main81250-12020-03iAE81,82..ZX198305-198704

GRAY,GRAY,TRIM1#

main81250-12020-14iAE81,82..ZX198305-198704

BLUE,BLUE,TRIM8#

main81250-12020-16iAE81,82..ZX198408-198704

BROWN,BROWN,TRIM4#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE81,82..ZX198305-198704

81251LENS, ROOM LAMP, NO.2

main81231-14010iAE81,82..ZX198305-198704

sub81231-30010

81260ALAMP ASSY, MAP

main81260-16040-08iAE81,82,CE80..SX,ZX198305-198704

TRIM3,4,IVORY

81260CBULB(FOR MAP LAMP)

main90981-12014iAE81,82,CE80..SX,ZX198305-198704

81261LENS AND COVER, MAP LAMP

main81261-20060-08iAE81,82,CE80..5D198305-198308

IVORY,IVORY,TRIM3#

main81261-20061-18iAE81,82,CE80..SX,ZX198308-198704

IVORY,IVORY,TRIM3#,4#

8125914010

main81259-14010

9016445005

main90164-45005

9324924016

main93249-24016

9356014016

main93560-14016

13 parts on this diagram · 1 diagram in section
