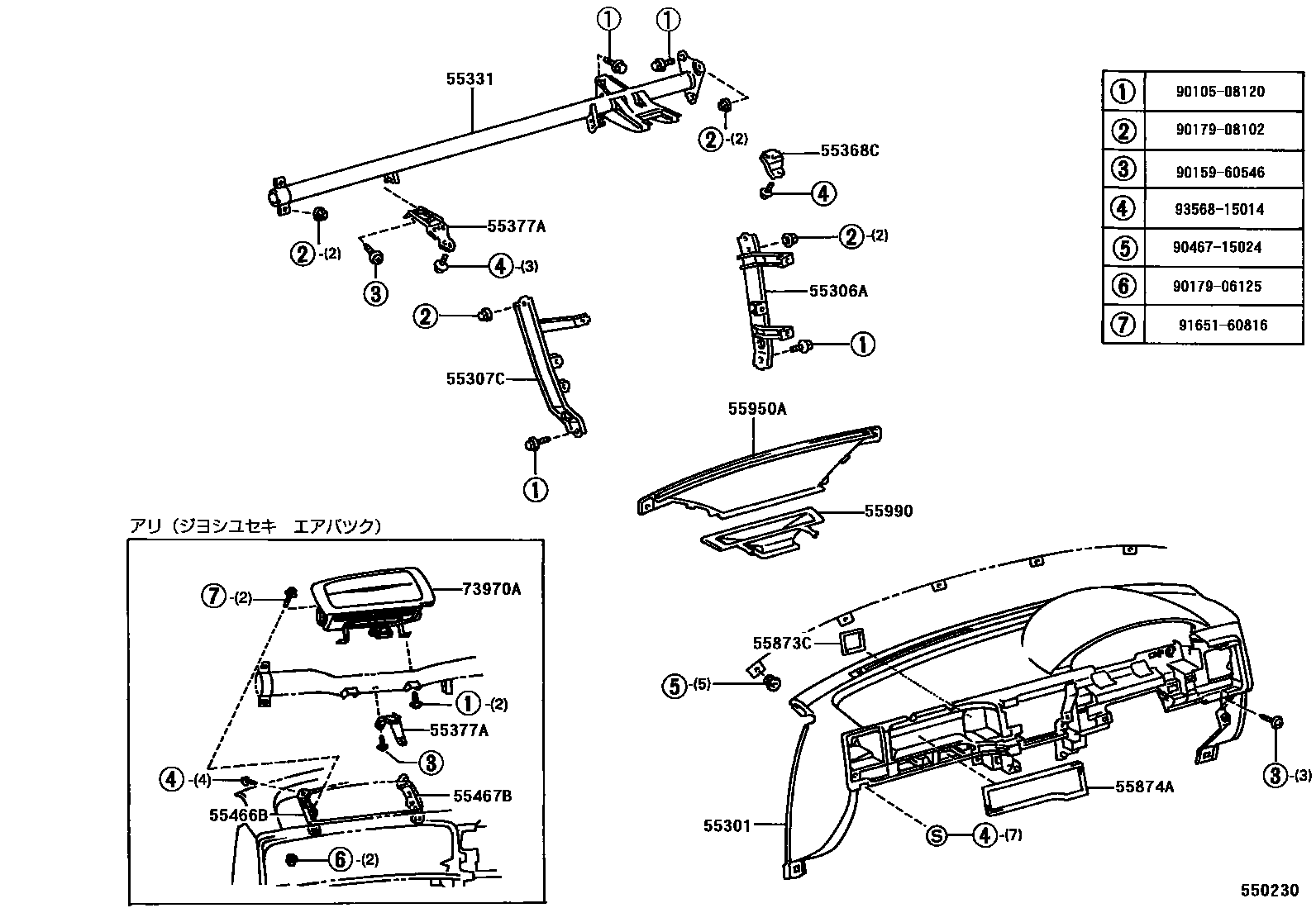

Toyota SPRINTER — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-12130-B0iAE11#,CE11#,EE111199505-199605

SHADOW GRAY,TRIM1#

main55301-12130-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199605

OAK,TRIM4#

main55301-12140-B0iAE110,114,CE11#,EE111..LX,XEVIN199605-199704

SHADOW GRAY,TRIM1#

main55301-12140-E0iAE110,114,CE11#,EE111..XEVIN199605-199704

OAK,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12230iAE11#,CE11#,EE111199505-199704

main55306-12240iAE11#,CE11#..SCRU,SEVIN199505-199704

main55306-12260iAE11#,CE11#,EE111199704-200008

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12240iAE11#,CE11#,EE111199505-199704

main55307-12250iAE11#,CE11#..SCRU,SEVIN199505-199704

main55307-12280iAE11#,CE11#,EE111199704-200008

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12280iAE11#,CE11#,EE111199505-199605

main55330-12310iAE110,114,CE11#,EE111..LX,XEVIN199605-199704

main55330-12370iAE11#,CE11#,EE111199704-199908

main55330-12371iAE11#,CE11#,EE111199908-200008

55368CBRACKET, METER MOUNTING

main55368-12050iAE11#,CE11#,EE111199505-199704

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-12120iAE11#,CE11#,EE111199505-199605

main55377-12130iAE110,114,CE11#,EE111..LX,XEVIN199605-199704

55466BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.1

main55466-12060iAE11#,CE11#,EE111199605-199704

55467BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2

main55467-12020iAE11#,CE11#,EE111199605-199704

55873CSEAL, AIR DUCT, CENTER

main55873-12140iAE11#,CE11#,EE111199505-199704

55874ASEAL, AIR DUCT, NO.4

main55874-12100iAE11#,CE11#,EE111199505-199704

55950ANOZZLE ASSY, DEFROSTER

main55950-12190iAE11#,CE11#,EE111199505-199704

main55950-12220iAE11#,CE11#,EE111199704-200008

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12030iAE11#,CE11#,EE111199505-199704

main55990-12050iAE11#,CE11#,EE111199704-200008

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-12020-B0iAE11#,CE11#,EE111199605-199704

SHADOW GRAY,TRIM1#

main73970-12020-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199605-199704

OAK,TRIM4#

9010508120

main90105-08120

9015960546

main90159-60546

9017906125

main90179-06125

9017908102

main90179-08102

9046715024

main90467-15024

9165160816

main91651-60816

9356815014

main93568-15014

20 parts on this diagram · 4 diagrams in section
