Toyota SPRINTER — INSTRUMENT PANEL & GLOVE COMPARTMENT

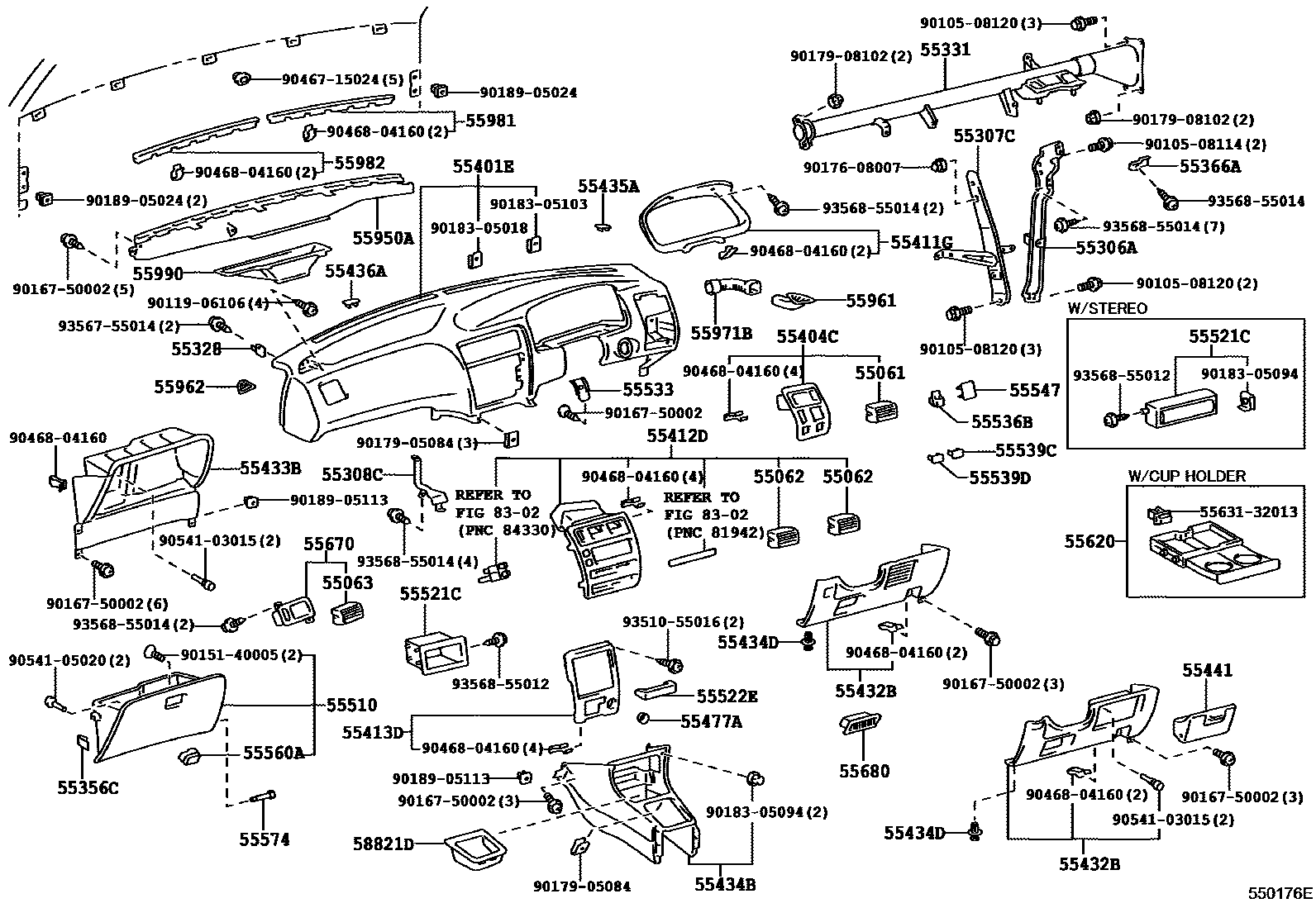

Parts diagram

55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

main55061-12150i199106

55062REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2

main55062-12060i199106

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55063-12050-B0i199106

SHADOW GRAY,TRIM1#

main55063-12050-J0i199106-199305

DARK BLUE,TRIM8#

main55063-12050-K0i199205-199505

TAUPE,TRIM9#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12150i199106-199305

main55306-12200i199305

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12200i199106-199610

main55307-12201i199610

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12180i200008

main55308-12180i199106

main55308-12230i199610-199704

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12060i199106

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12240i199106-199704

main55330-12241i199704

main55330-12330i199610-199704

main55330-12331i199704

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12060i199106-199301

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12040i199106

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12300-K0i199106-199311

TAUPE,TRIM9#

main55401-12300-P0i199106-199311

SHADOW GRAY,TRIM1#

main55401-12300-W3i199106-199305

DARK BLUE,TRIM8#

main55401-12370-B0i199311-199503

SHADOW GRAY,TRIM1#

main55401-12370-K0i199311-199503

TAUPE,TRIM9#

main55401-12381i199704-200006

main55401-12381-B0i200006

SHADOW GRAY,TRIM1#

main55401-12460-B0i199503-200006

SHADOW GRAY,TRIM1#

main55401-12460-K0i199503-199505

main55401-12500-B0i199610-199704

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-12570i199106-199311

main55404-12610i199311

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12870i199106

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12480i199109-199305

main55405-12480i199106-199205

main55405-12480i199109-199305

main55405-12480i199205-199305

main55405-12500i199205-199505

main55405-12500i199106-199505

main55405-12540i199205-199305

main55405-12540i199109-199305

main55405-12660i199205-199305

main55405-12700i199305-199505

main55405-12700i199305-199605

main55405-12700i199305-199605

main55405-12710i199305-199401

main55405-12710i199401-199605

main55405-12710i199305-199605

main55405-12720i199305-199505

main55405-12770i199605-199804

main55405-12770i199605

main55405-12820i199605-199708

main55405-12820i199605-200008

main55405-1A140i199804

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-12420i199106

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12310-B0i199106-199505

SHADOW GRAY,TRIM1#

main55432-12310-B0i199109-199505

main55432-12310-J0i199106-199305

DARK BLUE,TRIM8#

main55432-12310-J0i199109-199305

main55432-12310-K0i199109-199505

main55432-12310-K0i199106-199505

TAUPE,TRIM9#

main55432-12320-K0i199308-199505

main55432-12320-K0i199109-199505

main55432-12320-K0i199106-199505

TAUPE,TRIM9#

main55432-12320-P0i199308-199505

main55432-12320-P0i199109-199505

main55432-12320-P0i199106

SHADOW GRAY,TRIM1#

main55432-12320-W3i199109-199305

main55432-12320-W3i199106-199305

DARK BLUE,TRIM8#

main55432-12370-B0i199201-199401

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12090-B0i199106-200206

SHADOW GRAY,TRIM1#

main55433-12090-J0i199106-199305

DARK BLUE,TRIM8#

main55433-12090-K0i199106-199505

TAUPE,TRIM9#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12100-K0i199106-199401

TAUPE,TRIM9#

main55434-12100-P0i199106-199401

SHADOW GRAY,TRIM1#

main55434-12100-W3i199106-199305

DARK BLUE,TRIM8#

main55434-12101-K0i199401-199505

TAUPE,TRIM9#

main55434-12101-P0i199401

SHADOW GRAY,TRIM1#

main55434-12110-K0i199109-199401

TAUPE,TRIM9#

main55434-12110-P0i199109-199401

SHADOW GRAY,TRIM1#

main55434-12110-W3i199109-199305

DARK BLUE,TRIM8#

main55434-12111-K0i199401-199505

TAUPE,TRIM9#

main55434-12111-P0i199401

SHADOW GRAY,TRIM1#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07073-B4i199704

SHADOW GRAY,TRIM1#

main90467-07073-C0i199305-199505

BLACK,TRIM1#,9#

main90467-07073-C0i199106-199704

BLACK,TRIM1#

main90467-07073-C0i199106-199305

BLACK,TRIM1#,8#,9#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-12010-C0i199310-199505

BLACK,TRIM1#,9#

main55435-12010-C0i199310

BLACK,TRIM1#

main55435-12010-K0i199106-199310

TAUPE,TRIM9#

main55435-12010-P0i199106-199310

SHADOW GRAY,TRIM1#

main55435-12010-W3i199106-199305

DARK BLUE,TRIM8#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-12020-C0i199310-199505

BLACK,TRIM1#,9#

main55436-12020-C0i199310

BLACK,TRIM1#

main55436-12020-K0i199106-199310

TAUPE,TRIM9#

main55436-12020-P0i199106-199310

SHADOW GRAY,TRIM1#

main55436-12020-W3i199106-199305

DARK BLUE,TRIM8#

55441BOX, INSTRUMENT PANEL

main55440-12030-B0i199106-199505

SHADOW GRAY,TRIM1#

main55440-12030-J0i199106-199305

DARK BLUE,TRIM8#

main55440-12030-K0i199106-199505

TAUPE,TRIM9#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12100i199106

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12310-B0i199106-199308

SHADOW GRAY,TRIM1#

main55550-12310-B1i199308

SHADOW GRAY,TRIM1#

main55550-12310-J0i199106-199305

DARK BLUE,TRIM8#

main55550-12310-K0i199106-199308

TAUPE,TRIM9#

main55550-12310-K1i199308-199505

TAUPE,TRIM9#

55521CCOVER, STEREO OPENING

main55521-12140i199106-199505

main55521-16040i199106

main55521-16040i200008

55522ECOVER, CUP HOLDER OPENING

main55522-12110i199106-199405

55533COVER, AUTO CLOCK HOLE

main55533-12130i199109

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-12010i199106

55539CCOVER, SPARE SWITCH HOLE

main55539-12110i199106-199804

55539DCOVER, SPARE SWITCH HOLE

main55539-12110i199106-199805

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-12020i199106

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12080-02i199106-199505

TAUPE,TRIM9#

main55560-12080-03i199106-199208

SHADOW GRAY,TRIM1#

main55560-12080-04i199106-199305

DARK BLUE,TRIM8#

main55560-12080-P0i199208

SHADOW GRAY,TRIM1#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010i199106

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-12020i199106-199405

main55620-12050i199405

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12150-B0i199407

SHADOW GRAY,TRIM1#

main55670-12150-K0i199106-199505

TAUPE,TRIM9#

main55670-12150-P0i199106-199407

SHADOW GRAY,TRIM1#

main55670-12150-W3i199106-199305

DARK BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-12050i199302-199305

main55680-12050-K0i199106-199302

TAUPE,TRIM9#

main55680-12050-P0i199106-199302

SHADOW GRAY,TRIM1#

main55680-12050-W3i199106-199302

DARK BLUE,TRIM8#

55950ANOZZLE ASSY, DEFROSTER

main55950-12140i199106-199208

main55950-12170i199208

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12180-K0i199106-199505

TAUPE,TRIM9#

main55961-12180-P0i199106

SHADOW GRAY,TRIM1#

main55961-12180-W3i199106-199305

DARK BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12160-K0i199106-199505

TAUPE,TRIM9#

main55962-12160-P0i199106

SHADOW GRAY,TRIM1#

main55962-12160-W3i199106-199305

DARK BLUE,TRIM8#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-12110i199106

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12050i199106

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12050i199106

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12010i199106

58821DPANEL, CONSOLE, UPPER FRONT

main58821-12050-K0i199106-199505

TAUPE,TRIM9#

main58821-12050-P0i199106

SHADOW GRAY,TRIM1#

main58821-12050-W3i199106-199305

DARK BLUE,TRIM8#

main58821-12060-K0i199109-199505

TAUPE,TRIM9#

main58821-12060-P0i199109

SHADOW GRAY,TRIM1#

main58821-12060-W3i199109-199305

DARK BLUE,TRIM8#

8302INDICATOR

→ Go to FIG 83-02

5563132013ARM,UNDER TRAY DOOR CHECK

main55631-32013

9010508114

main90105-08114

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9016750002

main90167-50002

9017608007

main90176-08007

9017905084

main90179-05084

9017908102

main90179-08102

9018305018

main90183-05018

9018305094

main90183-05094

9018305103

main90183-05103

9018905024

main90189-05024

9018905113

main90189-05113

9046715024

main90467-15024

9046804160

main90468-04160

9054103015

main90541-03015

9054105020

main90541-05020

9351055016

main93510-55016

9356755014

main93567-55014

9356855012

main93568-55012

9356855014

main93568-55014

67 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota SPRINTER

This section contains 70 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota SPRINTER. Key components include: REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2, REGISTER SUB-ASSY, INSTRUMENT, NO.3, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2.
