Toyota SPRINTER — INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12060iAE91,92,CE90,96,EE9#198705-199108

main55306-12100iAE95,CE95198710-199106

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12110iAE91,92,CE90,96,EE9#198705-199108

main55307-12150iAE95,CE95198710-199106

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12150iAE9#,CE9#,EE9#198705-199108

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-12040×2iAE9#,CE9#,EE9#198705-199108

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12160iAE9#,CE9#,EE9#198705-199108

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-22010×2iAE9#,CE9#,EE9#198705-199108

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12010iAE91,95,CE9#,EE9#..(AV1,AV2,CTD,DX,G,L,LX,MX,RVS,SE,STD,XL)..(CBR,DSL,EFI)198705-199108

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-12010iAE9#,CE9#,EE9#198705-199108

55395ARETAINER, INSTRUMENT PANEL CLAMP

main55395-12010×5iAE95,CE90..AV2,SE;AE91,92,EE90..GT,LX,SE198705-198905

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12230-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

sub55401-12250

main55401-12230-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

sub55401-12250

main55401-12230-04iAE91,95,CE9#,EE9#198908-199108

DARK BLUE,TRIM8#

sub55401-12250

main55401-12230-05iEE98..3FC,5F;AE95,CE96,EE96,98..(4F,4FC,5F)..(AV1,DX,RVS)198905-198908

DARK BEIGE,TRIM4#

sub55401-12250

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12440-01iAE92,95..AV2,GT198705-199108

BLACK,TRIM1#

main55405-12440-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55405-12440-03iAE91,95,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55405-12440-04iAE91,95,CE9#,EE9#198908-199108

DARK BLUE,TRIM8#

main55405-12440-05iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198905

DARK BEIGE,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12810iAE91,95,CE9#,EE9#..(AV1,AV2,CTD,DX,G,L,LX,MX,RVS,SE,STD,XL)..(CBR,DSL,EFI)198705-199108

main55411-12850iAE91..SE..EFIS;AE91,92..GT,XI,XS198705-199106

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12260-02iAE91,95,CE90,95,EE90..MX,SE198705-199106

MAROON,TRIM3#

main55432-12260-03iAE91,95,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55432-12260-04iAE91,95,CE90,EE90..4D,5D198905-198908

DARK BLUE,TRIM8#

main55432-12260-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198905-198908

DARK BEIGE,TRIM4#

main55432-12260-13iAE95..AV2198705-199108

main55432-12300-03iEE96..4F198908-199108

main55432-12300-04iEE96..4F198908-199108

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55303-12090-02iAE91,95,CE90..SE198705-198908

MAROON,TRIM3#

main55303-12090-03iAE91,95,CE90..SE198705-198908

SHADOW GRAY,TRIM1#

main55303-12090-04iAE91,95,CE90..SE198905-198908

DARK BLUE,TRIM8#

main55303-12090-05iAE91,95,CE90..SE198705-198905

DARK BEIGE,TRIM4#

main55433-12040-02iAE91,95,CE90,95,EE90..MX198705-199108

MAROON,TRIM3#

main55433-12040-03iAE9#,CE9#,EE9#..AV1,AV2,CTD,DX,G,GT,L,LX,MX,RVS,STD,XI,XL,XS198705-199108

SHADOW GRAY,TRIM1#

main55433-12040-04iAE91,95,CE9#,EE9#..AV1,AV2,CTD,DX,G,L,LX,MX,RVS,XL,XS198908-199108

DARK BLUE,TRIM8#

main55433-12040-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198905-198908

DARK BEIGE,TRIM4#

main55433-12050-02iAE91,95,CE90,95..SE198908-199106

MAROON,TRIM3#

main55433-12050-03iAE91,95,CE90,95..SE198908-199106

SHADOW GRAY,TRIM1#

main55433-12050-04iAE91,95,CE90,95..SE198908-199106

DARK BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12040-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55434-12040-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55434-12040-04iAE91,95,CE90,EE90..4D,5D198905-198908

DARK BLUE,TRIM8#

main55434-12040-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198905-198908

DARK BEIGE,TRIM4#

55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL

main55474-12120iAE95,CE90..AV2,SE;AE91,92,EE90..GT,LX,SE198705-198905

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12080iAE9#,CE9#,EE9#198705-199108

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12250-02iAE91,95,CE90,EE90..MX,SE198705-198905

MAROON,TRIM3#

main55550-12250-03iAE9#,CE9#,EE9#198705-198905

SHADOW GRAY,TRIM1#

main55550-12250-04iAE91,95,CE9#,EE9#198908-199108

DARK BLUE,TRIM8#

main55550-12250-05iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198905

DARK BEIGE,TRIM4#

55521CCOVER, STEREO OPENING

main55521-16030iAE91,CE90,EE90..CBR,DSL,EFI198905-198908

W(1DIN SIZE COVER)

main55521-16040iAE91,CE9#,EE9#..CBR,DSL,EFI198908-199008

sub55521-36020

55522BCOVER, RADIO TUNER OPENING

main55522-12140iEE90..DX;CE96,EE96..CTD,STD198705-199108

55528COVER, AUTO DRIVE OPENING

main55528-12020-01iAE92,95..(4D,WG)..(AV2,GT)198908-199108

BLACK,TRIM1#

main55528-12020-02iAE91,95,CE90,95,EE90..MX,SE198905-199108

MAROON,TRIM3#

main55528-12020-03iAE91,95,CE90,EE90..4D198905-198908

SHADOW GRAY,TRIM1#

main55528-12020-04iAE91,95,CE9#,EE9#..4D,V,WG198908-199108

DARK BLUE,TRIM8#

55531BCOVER, CHOKE KNOB HOLE

main55531-12120-03iEE96..4F198908-199108

SHADOW GRAY,TRIM1#

main55531-12120-04iEE96..4F198908-199108

DARK BLUE,TRIM8#

55532COVER, CIGAR LIGHTER HOLE

main55532-12020-03iEE90..DX198705-199108

SHADOW GRAY,TRIM1#

main55532-12020-04iEE90..DX198905-199108

DARK BLUE,TRIM8#

55533COVER, AUTO CLOCK HOLE

main55533-12090iAE91,95,CE9#,EE9#..AV1,DX,L,LX,MX,STD,XL198705-198905

55537BCOVER, REAR DEFOGGER SWITCH HOLE

main55537-12020-03iAE91,CE90,EE90..DX198905-198908

SHADOW GRAY,TRIM1#

main55537-12020-04iAE91,CE90,EE90..DX198905-198908

DARK BLUE,TRIM8#

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-02iAE91,95,CE90,95,EE90..MX,SE198705-199106

MAROON,TRIM3#

sub55560-16050

main55560-16040-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

sub55560-16050

main55560-16040-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198905-198908

DARK BEIGE,TRIM4#

sub55560-16050

main55560-16040-14iCE9#,EE9#198908-199108

DARK BLUE,TRIM8#

sub55560-16050

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12050iAE9#,CE9#,EE9#198705-199108

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iAE95,CE96,EE96,98..V,WG198905-198908

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-12040-02iCE90,95..MX,SE198705-199106

MAROON,TRIM3#

main55607-12040-03iCE9#198705-199108

SHADOW GRAY,TRIM1#

main55607-12040-04iCE9#198908-199108

DARK BLUE,TRIM8#

main55607-12040-05iCE96..DX,XL198905-198908

DARK BEIGE,TRIM4#

55611TRAY, INSTRUMENT PANEL UNDER

main55611-12100-02iAE91,95,CE90,95..SE198908-199106

MAROON,TRIM3#

main55611-12100-03iAE91,95,CE90,95..SE198908-199106

SHADOW GRAY,TRIM1#

main55611-12100-04iAE91,95,CE90,95..SE198908-199106

DARK BLUE,TRIM8#

55619COVER, SWITCH HOLE

main55619-14010-04iAE91,95,CE9#,EE9#198908-199108

DARK BLUE,TRIM8#

main55619-14010-22iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55619-14010-25iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198905

DARK BEIGE,TRIM4#

main55619-14010-33iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-12010-01iAE92198705-199106

BLACK,TRIM1#

main55620-12010-02iCE90,EE90..MX,SE198905-199106

MAROON,TRIM3#

main55620-12010-03iEE98..4F198908-199108

SHADOW GRAY,TRIM1#

main55620-12010-04iEE98..4F198908-199108

DARK BLUE,TRIM8#

main55620-12010-05iEE98..(3FC,5F)..XL198808-198908

DARK BEIGE,TRIM4#

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-12030iCE9#198705-199108

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-12140-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55650-12140-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55650-12140-04iAE91,95,CE90,EE90..4D,5D198905-198908

DARK BLUE,TRIM8#

main55650-12140-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198905-198908

DARK BEIGE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12110-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55670-12110-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55670-12110-04iAE91,95,CE90,EE90..4D,5D198905-198908

DARK BLUE,TRIM8#

main55670-12110-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198905-198908

DARK BEIGE,TRIM4#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-13iCE96,EE96198908-199108

SHADOW GRAY,TRIM1#

main55680-14030-D0iAE91,95..MX,SE198905-199108

MAROON,TRIM3#

main55680-14030-J0iCE9#,EE9#198908-199108

DARK BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12140-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55961-12140-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55961-12140-04iAE91,95,CE9#,EE9#198908-199108

DARK BLUE,TRIM8#

main55961-12140-05iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198905

DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12120-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55962-12120-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55962-12120-04iAE91,95,CE90,EE90..4D,5D198905-198908

DARK BLUE,TRIM8#

main55962-12120-05iAE91,95,CE9#,EE9#..G,L,LX,MX,SE,XI,XL198705-198905

DARK BEIGE,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12030-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55981-12030-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55981-12030-04iAE91,95,CE9#,EE9#198908-199108

DARK BLUE,TRIM8#

main55981-12030-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198905-198908

DARK BEIGE,TRIM4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12030-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main55982-12030-03iAE9#,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main55982-12030-04iAE91,95,CE90,EE90..4D,5D198905-198908

DARK BLUE,TRIM8#

main55982-12030-05iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198905

DARK BEIGE,TRIM4#

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9016745009

main90167-45009

9016745011

main90167-45011

9016750003

main90167-50003

9016750020

main90167-50020

9017906009

main90179-06009

9017906054

main90179-06054

9017908063

main90179-08063

9017908102

main90179-08102

9018305094

main90183-05094

9046714007

main90467-14007

9046804157

main90468-04157

9054103015

main90541-03015

9356855012

main93568-55012

9356855014

main93568-55014

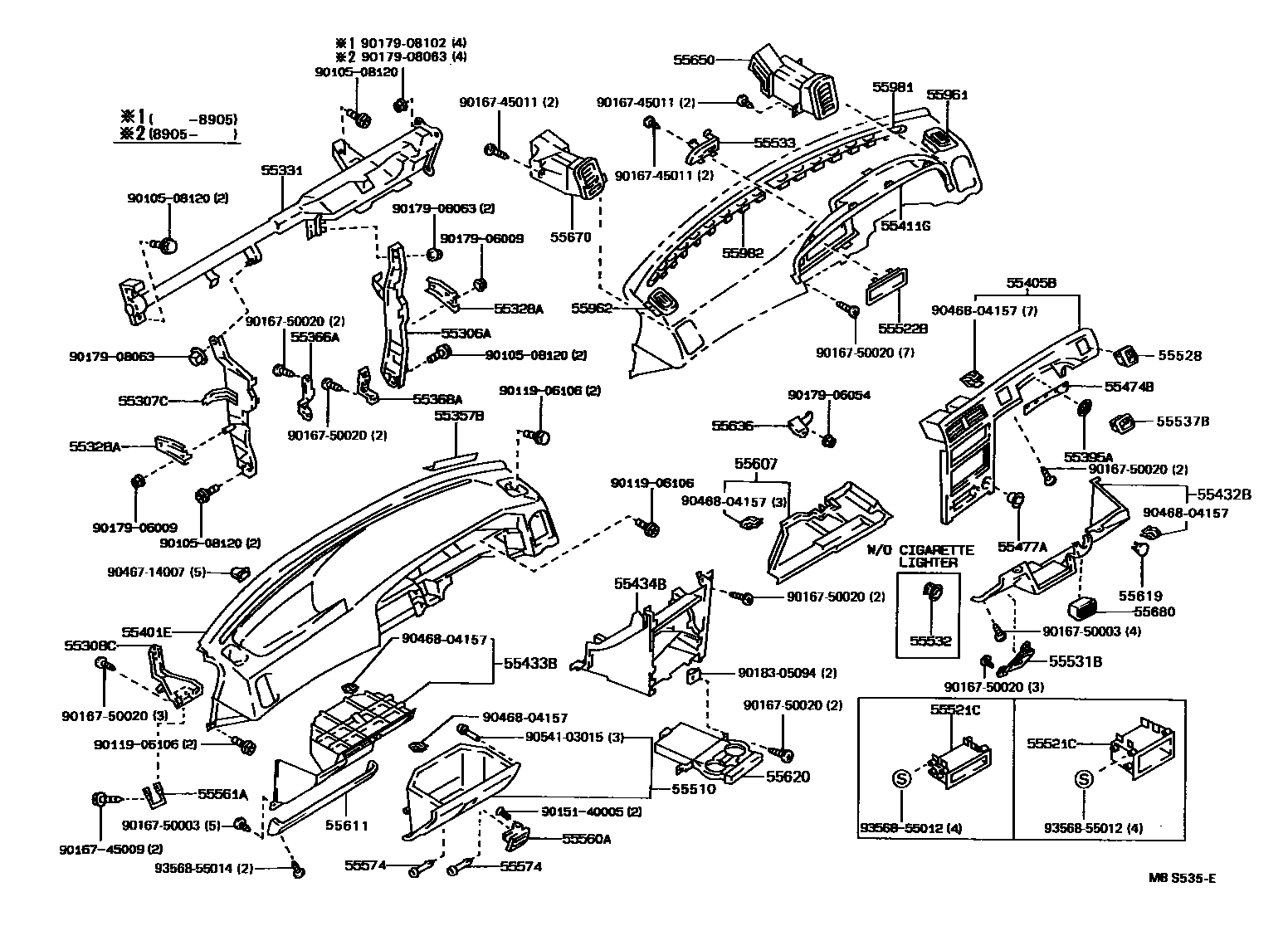

57 parts on this diagram · 1 diagram in section
