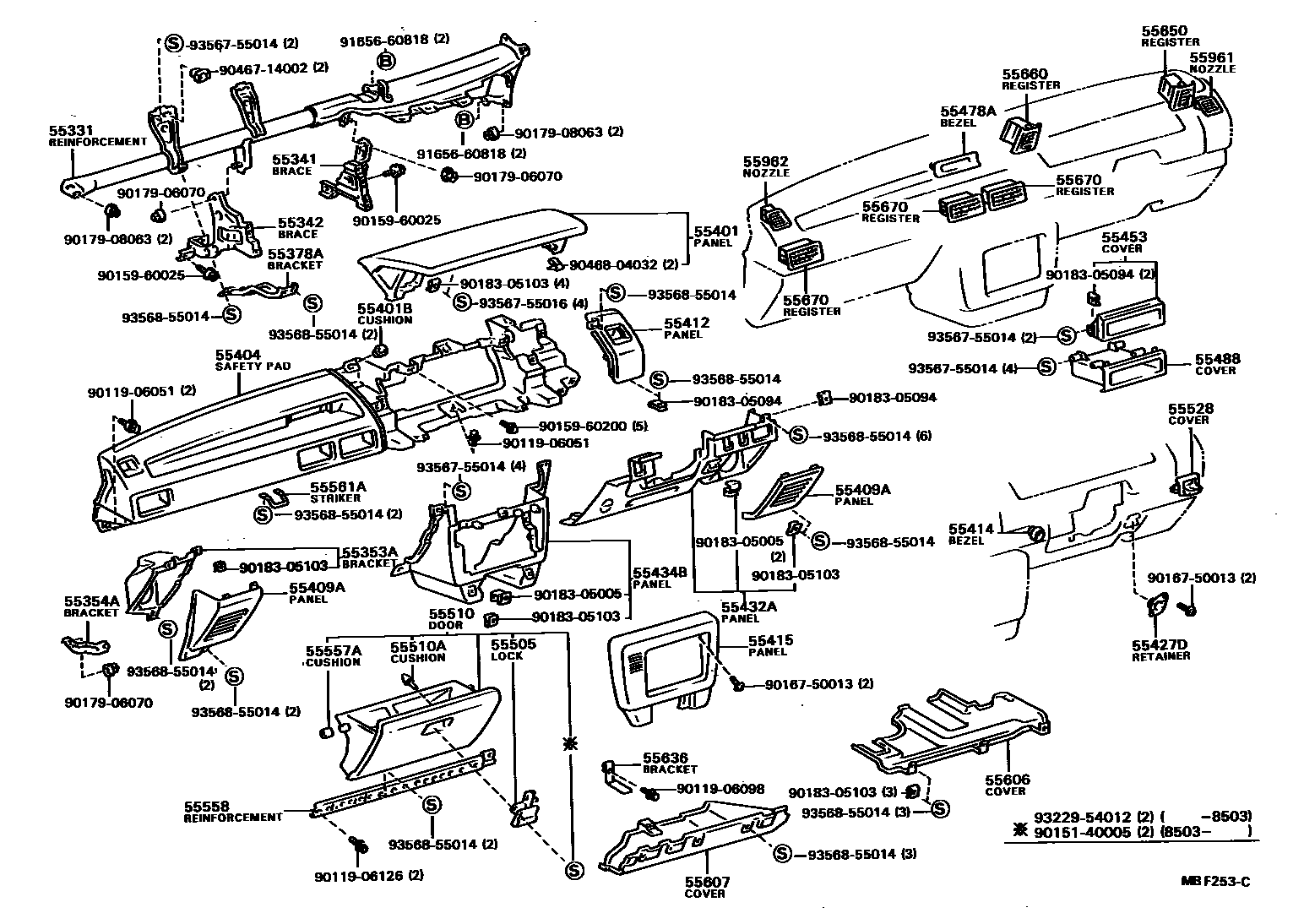

Toyota SPRINTER — INSTRUMENT PANEL & GLOVE COMPARTMENT
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55353ABRACKET, SPEAKER MOUNTING, NO.1
55354ABRACKET, SPEAKER MOUNTING, NO.2
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
RH,MAROON,RED/MAROON,TRIM3#
RH,GRAY,GRAY,TRIM1#
RH,BLUE,BLUE,TRIM8#
RH,BEIGE,BEIGE,TRIM3#
RH,BROWN,BROWN,TRIM4#
RH,GRAY,GRAY,TRIM1#
RH,BLUE,BLUE,TRIM8#
LH,MAROON,RED/MAROON,TRIM3#
LH,GRAY,GRAY,TRIM1#
LH,BLUE,BLUE,TRIM8#
LH,BEIGE,BEIGE,TRIM3#
LH,BROWN,BROWN,TRIM4#
LH,GRAY,GRAY,TRIM1#
LH,BLUE,BLUE,TRIM8#
55412PANEL, INSTRUMENT CLUSTER FINISH, END
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55414BEZEL, CIGAR LIGHTER HOLE
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
W/*TIS,MAROON,RED/MAROON,TRIM3#
W/*TIS,GRAY,GRAY,TRIM1#
W/*TIS,BLUE,BLUE,TRIM8#
W/*TIS,BEIGE,BEIGE,TRIM3#
W/*TIS,BROWN,BROWN,TRIM4#
W/*TIS,GRAY,GRAY,TRIM1#
W/*TIS,BLUE,BLUE,TRIM8#
W/*TIS,BROWN,GRAY,TRIM4#; W/*TIS,GRAY,GRAY,TRIM1#
W/*TIS,BLUE,BLUE,TRIM8#
W/*TIS,BROWN,BROWN,TRIM4#
W/O *TIS,MAROON,RED/MAROON,TRIM3#
W/O *TIS,GRAY,GRAY,TRIM1#
W/O *TIS,BLUE,BLUE,TRIM8#
W/O *TIS,BEIGE,BEIGE,TRIM3#
W/O *TIS,BROWN,BROWN,TRIM4#
W/O *TIS,GRAY,GRAY,TRIM1#
W/O *TIS,BLUE,BLUE,TRIM8#
W/O *TIS,GRAY,GRAY,TRIM1#
W/O *TIS,BLUE,BLUE,TRIM8#
W/O *TIS,BROWN,BROWN,TRIM4#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
55453COVER, RADIO TUNER OPENING
W/KNOCK CONTROL
55478ABEZEL, AUTO CLOCK HOLE
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55488COVER, STEREO OPENING
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55510DOOR ASSY, GLOVE COMPARTMENT
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55528COVER, AUTO DRIVE OPENING
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55961NOZZLE, SIDE DEFROSTER, NO.1
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
9011906051
main90119-06051
9011906098
main90119-06098
9011906126
main90119-06126
9015140005
main90151-40005
9015960025
main90159-60025
9015960200
main90159-60200
9016750013
main90167-50013
9017906070
main90179-06070
9017908063
main90179-08063
9018305005
main90183-05005
9018305094
main90183-05094
9018305103
main90183-05103
9046714002
main90467-14002
9046804032
main90468-04032
9165660818
main91656-60818
9322954012
main93229-54012
9356755014
main93567-55014
9356755016
main93567-55016
9356855014
main93568-55014
53 parts on this diagram · 2 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota SPRINTER
This section contains 57 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota SPRINTER. Key components include: REINFORCEMENT, INSTRUMENT PANEL, BRACE, INSTRUMENT PANEL, NO.1, BRACE, INSTRUMENT PANEL, NO.2, BRACKET, SPEAKER MOUNTING, NO.1, BRACKET, SPEAKER MOUNTING, NO.2.
