Toyota SPRINTER — INDICATOR

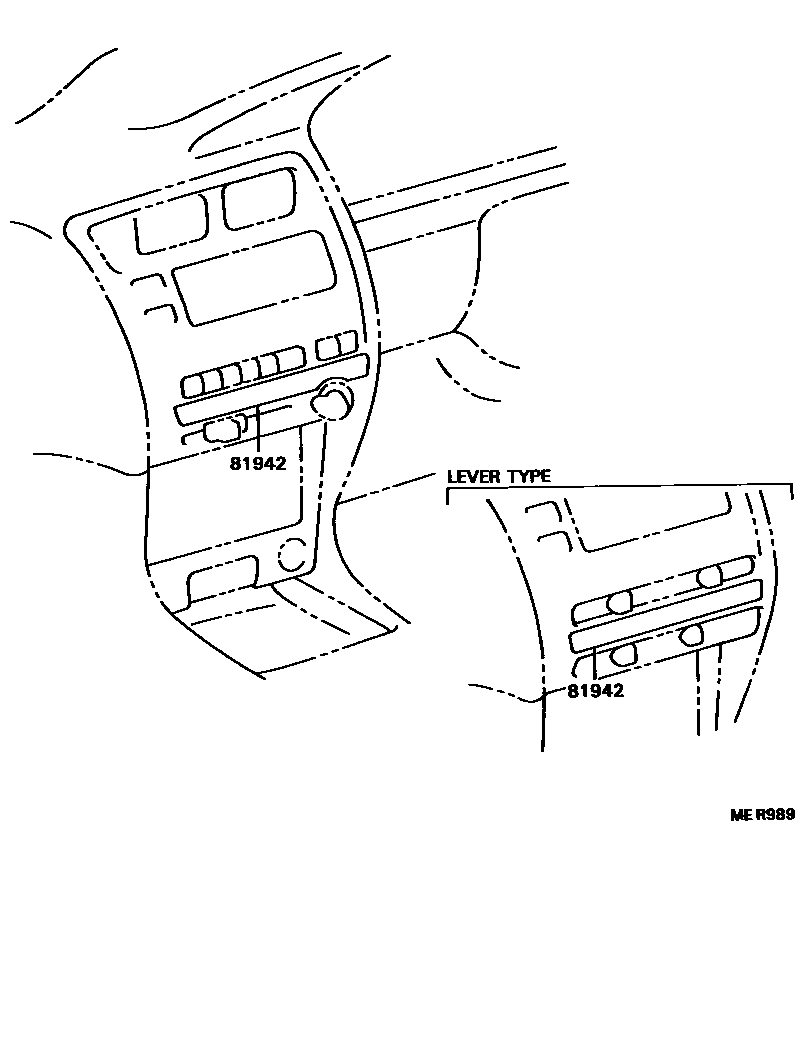

81942SHEET, HEATER CONTROL NAME

main81942-12310iAE100,104,CE100,104..SEL199205-199305

sub81942-12311

main81942-12310iAE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL199106-199305

sub81942-12311

main81942-12311iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL199305

main81942-12311iAE100,104,CE100,104..SEL199305-199505

main81942-12350iAE100,104,CE100,104,EE101..LX,XE199106-199305

sub81942-12351

main81942-12351iCE100..LX;EE101..LX,XE;AE100,104,CE104..DX,LX199305-199505

main81942-12410iAE100,104,CE100,104..XE199205-199505

main81942-12410iAE10#,CE100,104..GT,SEG,SEL199106-199505

1 parts on this diagram · 1 diagram in section
