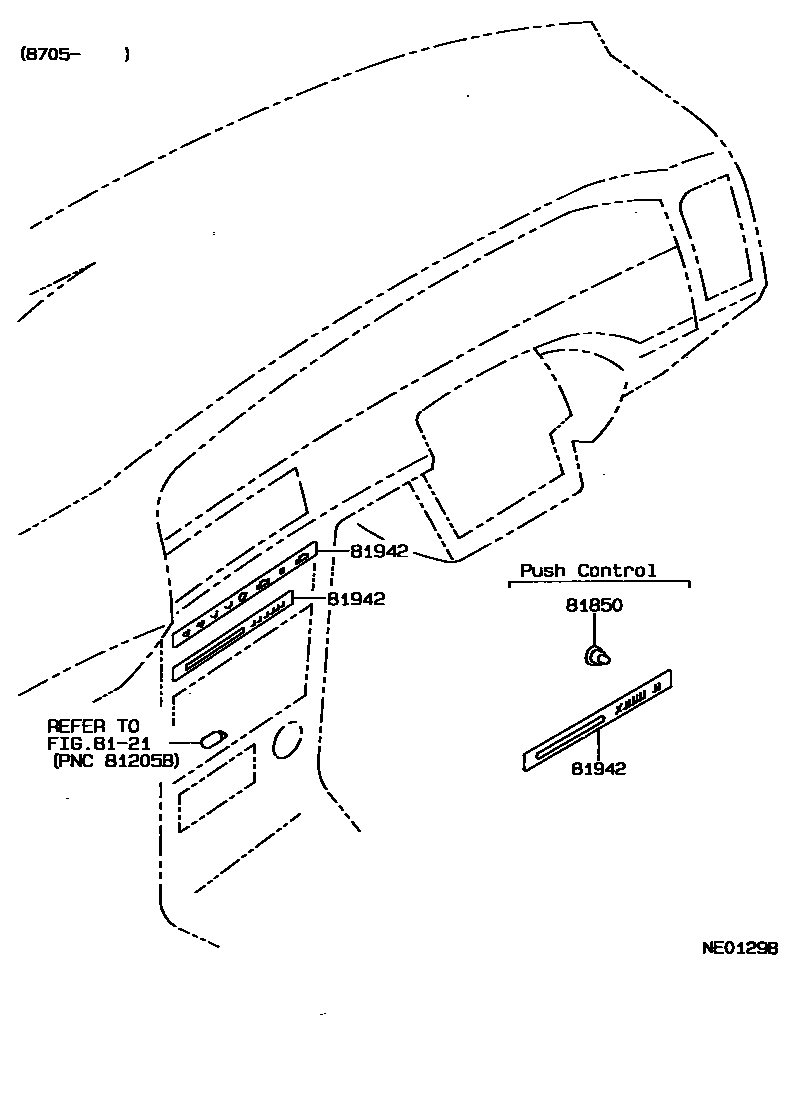

Toyota SPRINTER — INDICATOR

8121

81850LAMP ASSY, INDICATOR

main81850-12220iAE91,95,CE90..SE..(CBR,DSL)198705-199106

81942SHEET, HEATER CONTROL NAME

main81942-12230iAE95,CE90,95..SE198705-199106

main81942-12240iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-199108

main81942-12250iAE91,95,CE9#,EE9#..CBR,DSL,EFI198705-199108

main81942-12260iAE95..4D;AE91..G,L,LX,MX198705-199106

3 parts on this diagram · 1 diagram in section
