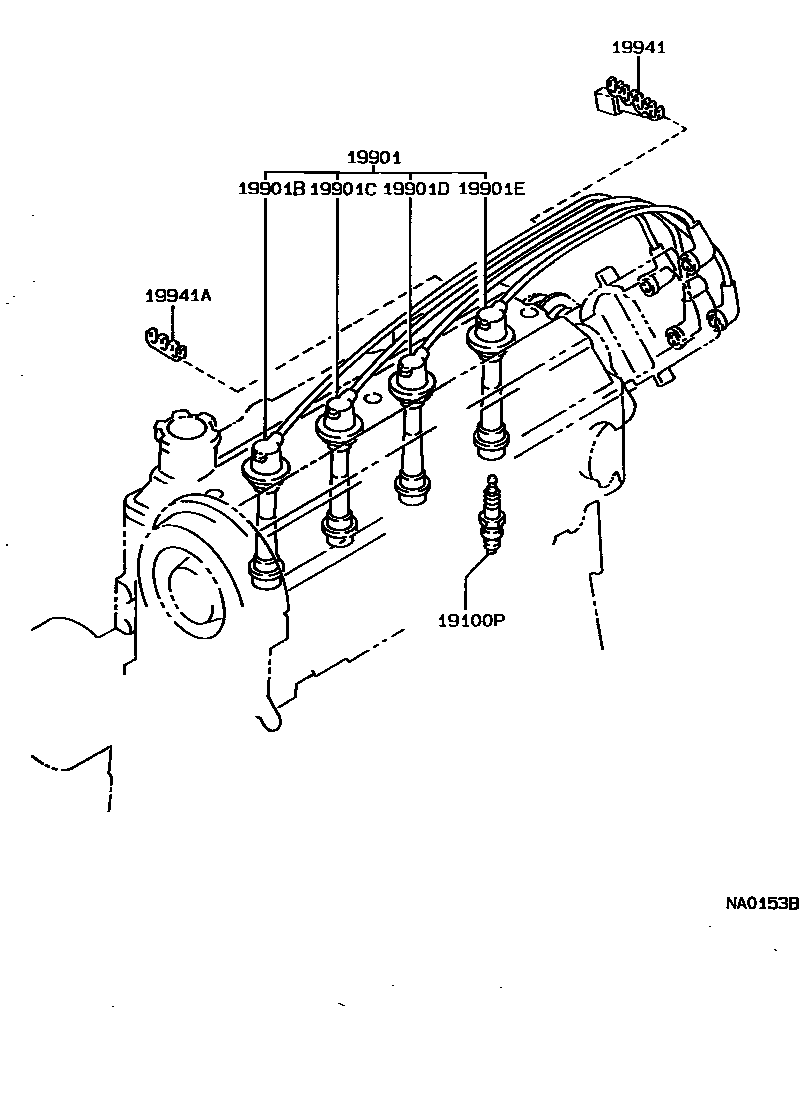

Toyota SPRINTER — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

19100PPLUG, SPARK

main90919-01059×4i2E..EE96198808-198908

sub90919-01064

main90919-01091×4i2E,3E..EE9#198908-199108

main90919-01094×4i2E,3E..EE90,98198705-198905

main90919-01104×4i2E,3E..EE9#198908-199108

main90919-01121×4i4AGE..AE92198705-198905

main90919-01122×4i4AGE..AE92198705-198905

main90919-01153×4i4AF#,5AFE..AE91,95198705-198905

main90919-01159×4i5AF..AE91198705-198905

main90919-01180×4i4AGE..AE92198905-199106

sub90919-01231

main90919-01181×4i4AGE..AE92198905-199106

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21395i4AGE..AE92198705-198905

sub90919-29205

main90919-21397i2E..EE96198808-198908

sub90919-29045

main90919-21461i4AGE..AE92198905-199106

sub90919-29065

main90919-22167i2E..EE90198801-198805

main90919-22194i4AF,5AF..AE91,95198705-198905

sub90919-22211

main90919-22196i5AFE..AE91198705-198905

main90919-22209i2E..EE90,96199008-199108

sub90919-22409

main90919-22214i5AFHE..AE91198905-199106

main90919-22246i2E..EE90..4F198805-198908

main90919-22249i3E..EE98198808-198908

main90919-22251i3E..EE98198908-199108

main90919-22284i4AFE,5AFE..AE91,95..4D,5D199008-199106

sub90919-22285

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12607i2E..EE90198705-198801

sub90919-12606

main90919-12699i4AGE..AE92198705-198905

main90919-12707i4AF,5AF..AE91,95198705-198905

sub90919-12779

main90919-12715i4AFE,5AFE..AE91,95198705-198905

main90919-12791i5AFHE..AE91198905-199106

main90919-12912i2E..EE90,96198908-199008

sub90919-12778

main90919-12929i3E..EE98198908-199108

sub90919-12778

main90919-12982i4AGE..AE92198905-199106

main90919-15058i4AFE,5AFE..AE91,95..4D,5D198905-198908

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12573i2E..EE90198705-198801

sub90919-12569

main90919-12700i4AGE..AE92198705-198905

main90919-12708i4AF,5AF..AE91,95198705-198905

sub90919-12780

main90919-12716i4AFE,5AFE..AE91,95198705-198905

main90919-12775i2E,3E..EE9#198801-198908

main90919-12792i5AFHE..AE91198905-199106

main90919-12923i3E..EE98198808-199108

main90919-12983i4AGE..AE92198905-199106

main90919-15059i4AFE,5AFE..AE91,95198908-199008

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12574i2E..EE90198705-198801

sub90919-12570

main90919-12701i4AGE..AE92198705-198905

main90919-12709i4AF,5AF..AE91,95198705-198905

sub90919-12781

main90919-12717i4AFE,5AFE..AE91,95198705-198905

main90919-12776i2E,3E..EE9#198801-198908

main90919-12793i5AFHE..AE91198905-199106

main90919-12924i3E..EE98198808-199108

main90919-12984i4AGE..AE92198905-199106

main90919-15060i4AFE,5AFE..AE91,95..4D,5D199008-199106

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12575i2E..EE90198705-198801

sub90919-12571

main90919-12702i4AGE..AE92198705-198905

main90919-12718i4AFE,5AFE..AE91,95198705-198905

main90919-12777i2E..EE90,96198908-199108

main90919-12794i5AFHE..AE91198905-199106

main90919-12921i3E..EE98198808-199108

main90919-12985i4AGE..AE92198905-199106

main90919-15061i4AFE,5AFE..AE91,95..4D,5D198905-198908

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00358i2E,3E..EE9#198705-198908

main90464-00490i2E..EE90,96199009-199011

main90929-01165i4AF#,5AF#..AE91,95198705-198905

main90929-01274i4AFE,5AF#..AE91,95198909-199008

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00287i4AFE,5AFE..AE91,95;4AF,5AF..AE91,95..MTM198705-198905

8 parts on this diagram · 6 diagrams in section
