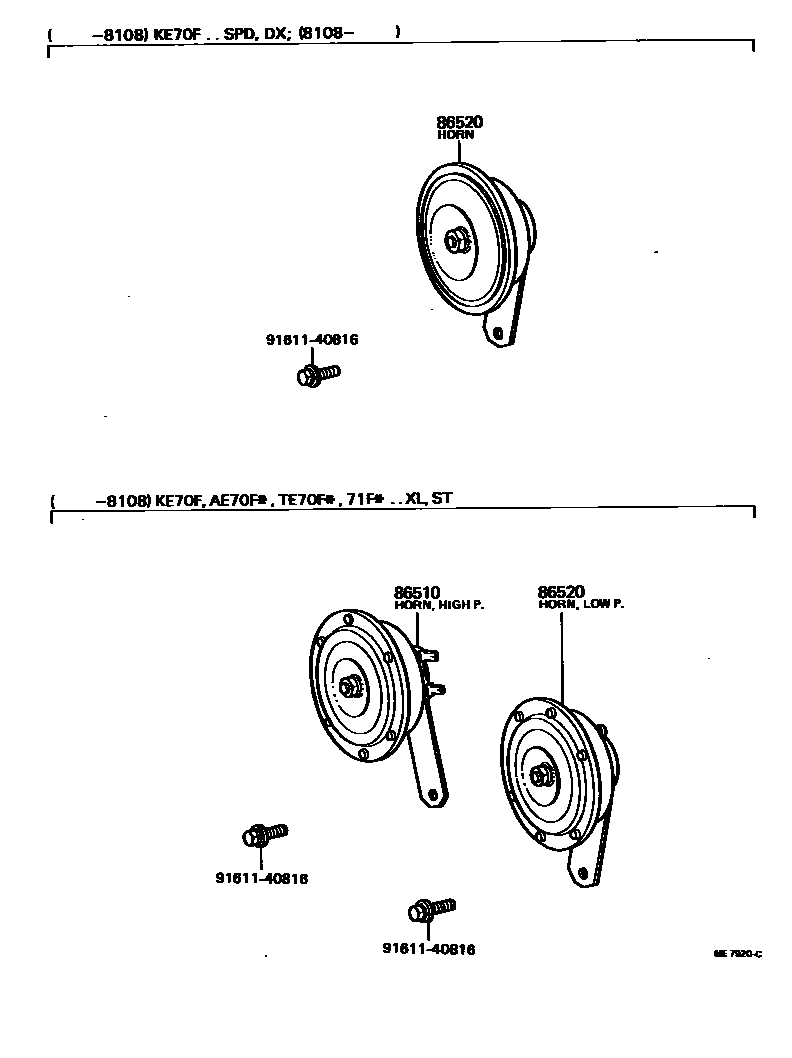

Toyota SPRINTER — HORN

86510HORN ASSY, HIGH PITCHED

main86510-12170iAE70,TE7#;KE70..ST,XL197903-198108

DENSO

sub86510-30351

main86510-12180iAE70,TE7#;KE70..ST,XL197903-198108

MARUKO

sub86510-12H91

86520HORN ASSY, LOW PITCHED

main86520-12150iKE70..DX,SPD197903-198108

sub86520-12H91

main86520-12170iAE70,TE7#;KE70..ST,XL197903-198108

DENSO

sub86520-30351

main86520-12180iAE70,TE7#;KE70..ST,XL197903-198108

MARUKO

sub86520-12H91

9161140816

main91611-40816

3 parts on this diagram · 1 diagram in section
