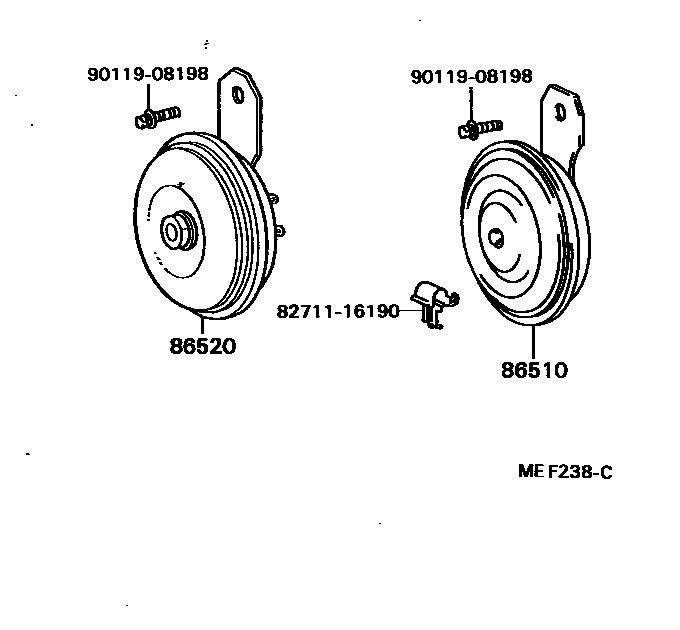

Toyota SPRINTER — HORN
86510
HORN ASSY, HIGH PITCHED
main
86510-12240
i
AE82..GT
198410-198505
DENSO
main
86510-12250
i
AE82..GT
198410-198505
MARUKO
sub
86510-12H90
main
86510-12300
i
AE82
198505-198701
MARUKO
sub
86510-30H92
main
86510-12301
i
AE82
198701-198704
MARUKO
sub
86510-30H92
main
86510-12350
i
AE82
198505-198704
DENSO
sub
86510-30H93
86520
HORN ASSY, LOW PITCHED
main
86520-12410
i
AE8#,CE80
198305-198505
sub
86520-12H90
main
86520-12450
i
AE8#,CE80,EE80
198505-198701
sub
86520-30H92
main
86520-12451
i
AE8#,CE80,EE80
198701-198704
sub
86520-30H92
8271116190
WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main
82711-16190
9011908198
main
90119-08198
4 parts on this diagram · 1 diagram in section
