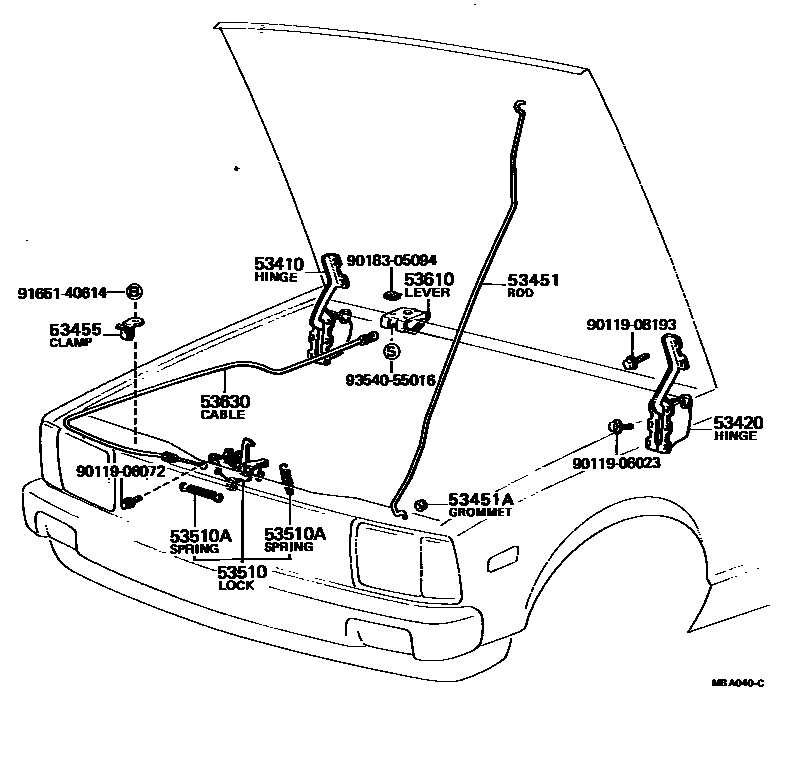

Toyota SPRINTER — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53455CLAMP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9
WD=2.0
53610LEVER ASSY, HOOD LOCK RELEASE
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
53630CABLE ASSY, HOOD LOCK CONTROL
9011906023
main90119-06023
9011906072
main90119-06072
9011908193
main90119-08193
9018305094
main90183-05094
9165140614
main91651-40614
9354055016
main93540-55016
15 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota SPRINTER
This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota SPRINTER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
