Toyota SPRINTER — HOOD LOCK & HINGE

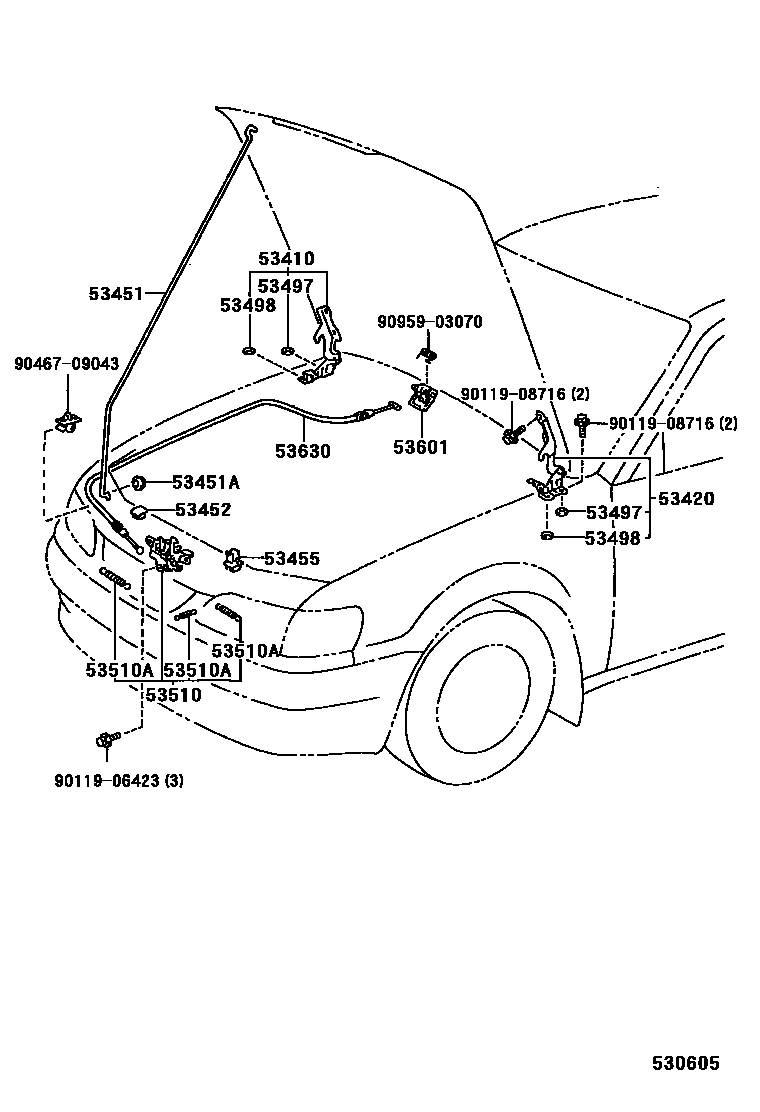

Parts diagram
53410HINGE ASSY, HOOD, RH
main53410-12290i199505-199704
main53410-12340i199704-200008
53420HINGE ASSY, HOOD, LH
main53420-12280i199505-199704
main53420-12340i199704-200008
53451ROD, HOOD SUPPORT
main53451-12191i199505-199701
main53451-12192i199701-199704
53451AGROMMET(FOR HOOD SUPPORT ROD)
main53454-12010i199505-199704
53452HOLDER, HOOD STAY
main53452-12030i199505-199704
53455CLAMP, HOOD SUPPORT ROD
main53455-12100i199505-199704
53497PAD, HOOD HINGE, NO.1
main53497-12060×2i199505-199704
main53497-12070×2i199505-199704
main53497-12080×2i199505-199704
main53497-12100×2i199707-200008
53498PAD, HOOD HINGE, NO.2
main53497-12060×2i199505-199704
main53497-12070×2i199704-200008
main53497-12080×2i199505-199704
53510LOCK ASSY, HOOD
main53510-12590i199505-199704
main53510-12640i199704-200008
53510ASPRING, TENSION(FOR HOOD LOCK)
main90506-09057i199505-199704
main90506-12067i199704-200008
main90506-14064i199505-199704
main90506-20065i199505-199704
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53611-12040-B0i199704-199804
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM11
main53611-12040-B3i199704-199804
MD. CHARCOAL,TRIM14
main53611-12040-C0i199505-199704
BLACK,TRIM1#; BLACK,TRIM1#,4#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-12480i199505-199704
main53630-12500i199804-200008
9011906423
main90119-06423
9011908716
main90119-08716
9046709043
main90467-09043
9095903070
main90959-03070

16 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota SPRINTER

This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota SPRINTER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), HOLDER, HOOD STAY.
