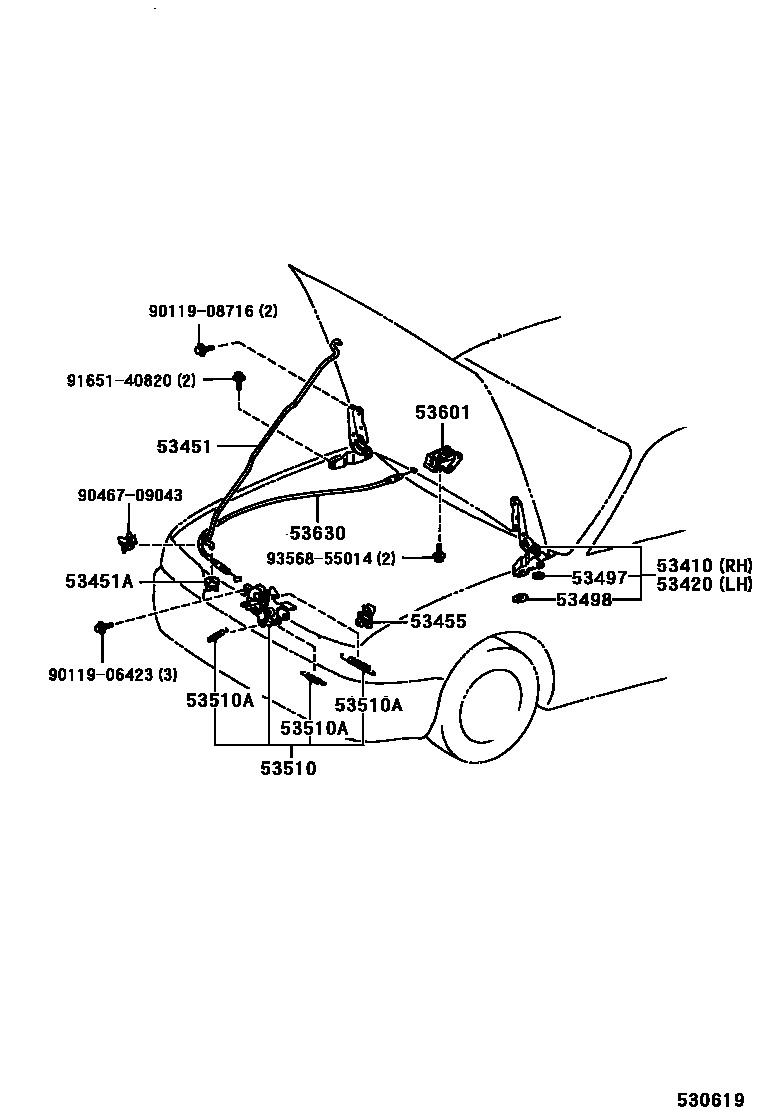

Toyota SPRINTER — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
PAD T=0.5
PAD T=0.5
PAD T=1.0
53420HINGE ASSY, HOOD, LH
PAD T=0.5
PAD T=0.5
PAD T=1.0
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53455CLAMP, HOOD SUPPORT ROD
53497PAD, HOOD HINGE, NO.1
53498PAD, HOOD HINGE, NO.2
PAD T=1.0
PAD T=0.5
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-10020-01iAE10#,CE100,104,EE101..LX,SEG,SEL,XE; AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,GT,L,XL199308-199409
NEW BLACK,TRIM1#; NEW BLACK,TRIM1#,9#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
BLACK,TRIM1#
TAUPE,TRIM9#
53630CABLE ASSY, HOOD LOCK CONTROL
9011906423
main90119-06423
9011908716
main90119-08716
9046709043
main90467-09043
9165140820
main91651-40820
9356855014
main93568-55014
16 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota SPRINTER
This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota SPRINTER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
