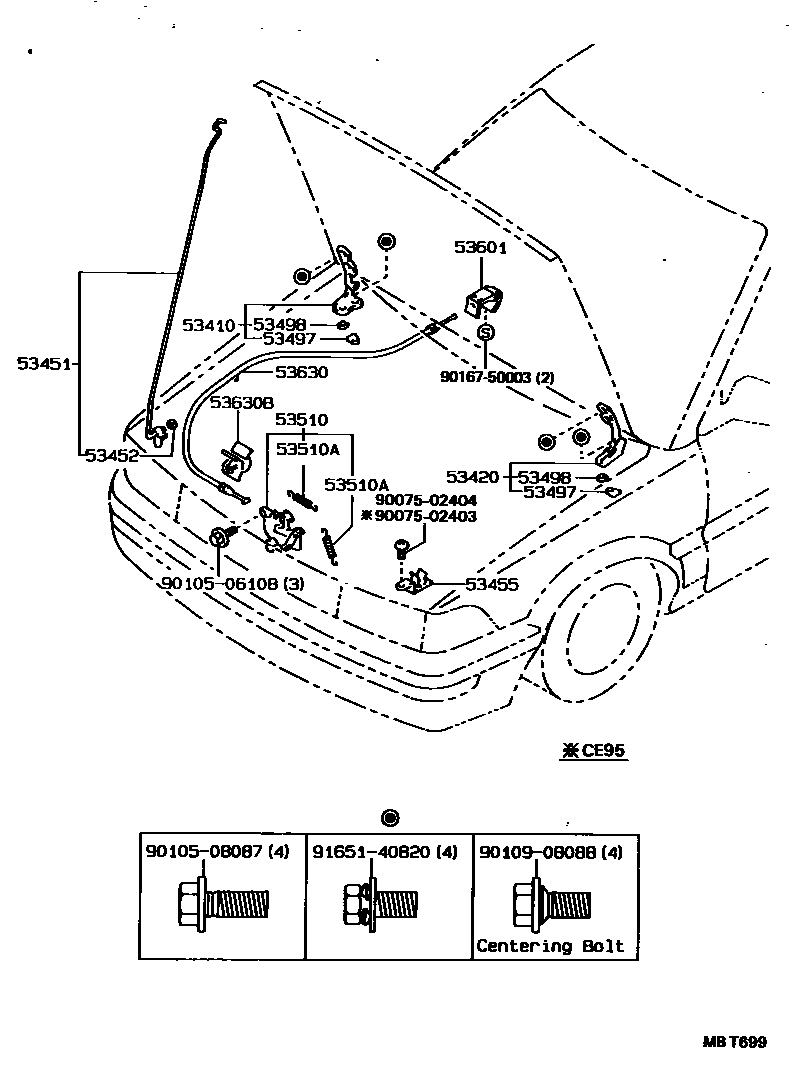

Toyota SPRINTER — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12170i198705-198808

main53410-12171i198808-199108

53420HINGE ASSY, HOOD, LH

main53420-12160i198705-198708

main53420-12161i198808-199108

53451ROD, HOOD SUPPORT

main53451-12160i198705-198802

main53451-12161i198802-199108

53452HOLDER, HOOD STAY

main53452-12020i198705-199108

53455CLAMP, HOOD SUPPORT ROD

main53455-12070i198705-199106

main53455-12080i198808-199108

53497PAD, HOOD HINGE, NO.1

main53497-12010i198705-198808

main53497-12011i198808-199108

53498PAD, HOOD HINGE, NO.2

main53498-12010i198705-198808

main53498-12011i198808-199108

53510LOCK ASSY, HOOD

main53510-12340i198705-199108

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008i198905-198908

main90506-09012i198705-198710

WD=0.9,CW=45.5

main90506-09038i198905-198908

main90506-20008i198905-198908

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-03i198705-198707

GRAY,TRIM1#

main53601-10020-05i198705-198809

DARK BEIGE,TRIM4#

main53601-10020-12i198705-198809

MAROON,TRIM3#

main53601-10020-23i198707-199005

GRAY,TRIM1#

main53601-10020-B1i199008-199108

SHADOW GRAY,TRIM1#

main53601-10020-D0i198809-199106

MAROON,TRIM3#

main53601-10020-E0i198905-198908

DARK BEIGE,TRIM4#

main53601-10020-J0i198908-199108

DARK BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12260i198705-199108

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043i198705-199108

9007502403

main90075-02403

9007502404

main90075-02404

9010506108

main90105-06108

9010508087

main90105-08087

9010908088

main90109-08088

9016750003

main90167-50003

9165140820

main91651-40820

19 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota SPRINTER

This section contains 19 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota SPRINTER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, HOLDER, HOOD STAY, CLAMP, HOOD SUPPORT ROD.
