Toyota SPRINTER — HOOD LOCK & HINGE

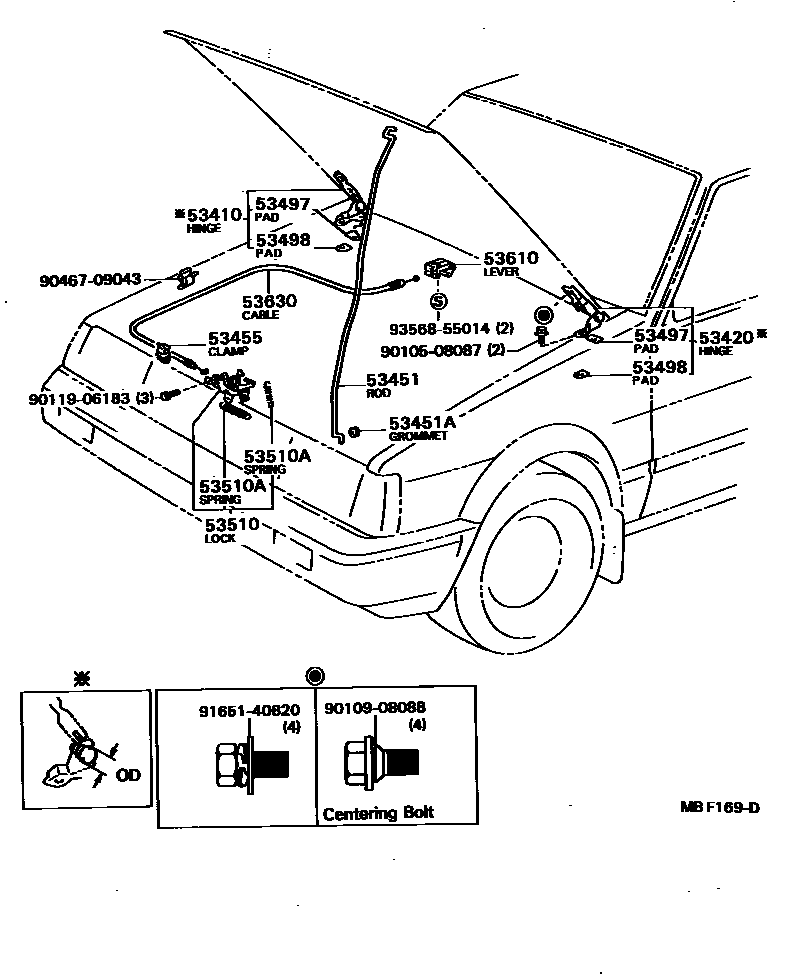

Parts diagram
53410HINGE ASSY, HOOD, RH
main53410-12050i198305-198704
OD=16
main53410-12080i198305-198506
OD=20
53420HINGE ASSY, HOOD, LH
main53420-12040i198305-198704
OD=16
main53420-12070i198305-198506
OD=20
53451ROD, HOOD SUPPORT
main53451-12050i198305-198704
53451AGROMMET(FOR HOOD SUPPORT ROD)
main90480-15002i198305-198704
53455CLAMP, HOOD SUPPORT ROD
main53455-14020i198305-198704
53497PAD, HOOD HINGE, NO.1
main53497-12010×2i198305-198704
53498PAD, HOOD HINGE, NO.2
main53498-12010×2i198305-198704
53510LOCK ASSY, HOOD
main53510-12220i198305-198704
53510ASPRING, TENSION(FOR HOOD LOCK)
main90506-09029i198305-198704
main90506-20008i198305-198704
53610LEVER ASSY, HOOD LOCK RELEASE
main53601-12020-02i198401-198408
MAROON,RED/MAROON,TRIM3#
main53601-12020-03i198305-198401
GRAY,GRAY,TRIM1#
main53601-12020-04i198305-198401
BLUE,BLUE,TRIM8#
main53601-12020-05i198305-198401
BEIGE,BEIGE,TRIM3#
main53601-12020-06i198408-198704
BROWN,BROWN,TRIM4#
main53601-12020-13i198401-198704
GRAY,GRAY,TRIM1#
main53601-12020-14i198401-198505
BLUE,BLUE,TRIM4#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-12210i198305-198704
9010508087
main90105-08087
9010908088
main90109-08088
9011906183
main90119-06183
9046709043
main90467-09043
9165140820
main91651-40820
9356855014
main93568-55014

17 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota SPRINTER

This section contains 17 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota SPRINTER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
