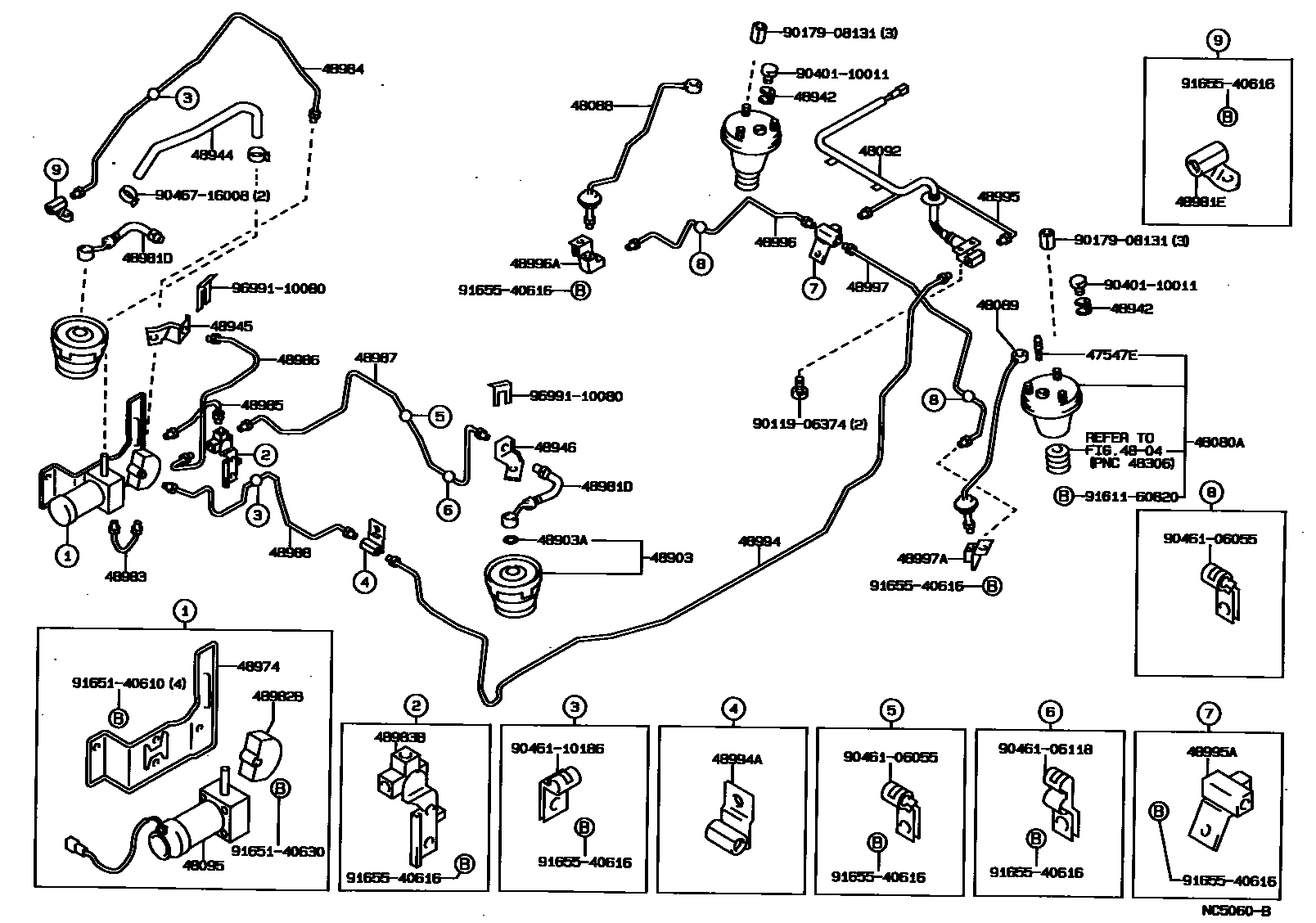

Toyota SPRINTER — HEIGHT CONTROL (AUTO-LEVELER)
47547EPLUG, BLEEDER(FOR HEIGHT CONTROL CYLINDER)
4804
48080ACYLINDER ASSY, HEIGHT CONTROL, REAR
48088TUBE SUB-ASSY, HEIGHT CONTROL, NO.1
48089TUBE SUB-ASSY, HEIGHT CONTROL, NO.2
48092SENSOR SUB-ASSY, HEIGHT CONTROL
sub48092-13010
48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48903CYLINDER SUB-ASSY, HEIGHT CONTROL, FRONT
48903ARING, O(FOR FRONT HEIGHT CONTROL CYLINDER)
48942GASKET, HEIGHT CONTROL UNION
48944HOSE, HEIGHT CONTROL, NO.2
48945BRACKET, HEIGHT CONTROL HOSE, RH
48946BRACKET, HEIGHT CONTROL HOSE, LH
48974BRACKET, HEIGHT CONTROL VALVE
48981TUBE, HEIGHT CONTROL, NO.1
48981DHOSE, FLEXIBLE, NO.1(FOR FRONT HEIGHT CONTROL)
48981EWAY, NO.1(FOR FRONT HEIGHT CONTROL TUBE)
48982TUBE, HEIGHT CONTROL, NO.2
48982BWAY, NO.2(FOR FRONT HEIGHT CONTROL TUBE)
48983TUBE, HEIGHT CONTROL, NO.3
48983BWAY, NO.3(FOR FRONT HEIGHT CONTROL TUBE)
48984TUBE, HEIGHT CONTROL, NO.4
48985TUBE, HEIGHT CONTROL, NO.5
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
48988TUBE, HEIGHT CONTROL, NO.8
48994TUBE, HEIGHT CONTROL, REAR NO.1
48994AWAY, NO.1(FOR REAR HEIGHT CONTROL TUBE)
48995TUBE, HEIGHT CONTROL, REAR NO.2
48995AWAY, NO.2(FOR REAR HEIGHT CONTROL TUBE)
48996AWAY, NO.3(FOR REAR HEIGHT CONTROL TUBE)
48997TUBE, HEIGHT CONTROL, REAR NO.4
48997AWAY, NO.4(FOR REAR HEIGHT CONTROL TUBE)
9011906374
main90119-06374
9017908131
main90179-08131
9040110011
main90401-10011
9046106055
main90461-06055
9046106118
main90461-06118
9046110186
main90461-10186
9046716008
main90467-16008
9161160820
main91611-60820
9165140610
main91651-40610
9165140630
main91651-40630
9165540616
main91655-40616
9699110080
main96991-10080
46 parts on this diagram · 2 diagrams in section
